Huawei Access Router

Click Here For New Access Router Page

These are the next-generation Integrated Routers for the Enterprise. The AR1200/2200/3200 series provides a unified communication solution for enterprise customers by integrating routing, switching, 3G service, wireless LAN (WLAN), voice, and security functions in a single device. With a wide array of features and interface cards, these routers provide the industry-leading performance as well as the scalability to meet current and future business needs.

AR3200 Series

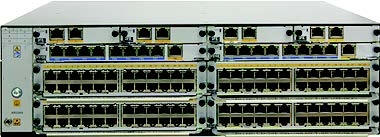

Huawei AR3200 Access Router

The Huawei AR3200 enterprise routers are next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP), which takes advantage of Huawei’s leadership in data communication, wireless, access network, and core network technologies.

The AR3200 routers integrate routing, switching, 3G,LTE, voice, and security functions. It utilizes a multi-core CPU and non-blocking switching structure providing industry-leading system performance and extensibility, supporting evolving service development requirements. The AR3200 routers provide an integrated solution for enterprise networks, speed up multi-service provisioning and protect customers' investments. The modular chassis allows customers to customize the router with interchangeable interface cards.

The AR3200 routers use embedded hardware encryption techniques and support a voice-optimized Digital Signal Processor (DSP). It supports firewall functions, call processing, voice mail, and other applications. The AR3200 routers support wired and wireless access modes, including E1/T1, xDSL, xPON, CPOS, 3G, and LTE

Product Features

  • Built-in services include voice conferencing and support for up to 500 voicemail boxes
  • Network monitoring at the service packet level and dynamic hot-swapping provides rapid fault detection and backup
  • Built-in firewall, IPS, and URL filtering; supports 802.1x, MAC, and portal authentication; IPSec VPN, EVPN, DSVPN, Smart VPN, and A2A secure access
  • BPX, SIP server, and SIP gateway, with NGN/IMS/PBX interconnections for voice services; Huawei’s Quality of Experience (QoE) feature monitors voice quality in real time, with dynamic buffer jitter management, echo cancellation, and packet loss compensation to maintain high-quality voice communications
  • Supports high-speed wireless and multiple 3G/LTE modes, wireless ACs, and multiple APs for seamless wired and wireless voice communications

Product Specification

Specifications

AR3260

WAN Speed with Services

1 Gbit/s (SRU40), 2 Gbit/s (SRU80), 2 Gbit/s (SRU100E), 3 Gbit/s (SRU200E), 4.5 Gbit/s (SRU200), 5.5 Gbit/s (SRU400)

Fixed WAN Ports

SRU40: 3 x GE (2 x Combo),

SRU80: 3 x GE (2 x Combo),

SRU100E: 4 x GE Combo + 2 x GE SFP,

SRU200E: 4 x GE Combo + 2 x 10 GE SFP+,

SRU200: 4 x GE Combo + 2 x 10 GE SFP+,

SRU400: 4 x GE Combo + 2 x 10 GE SFP+

Slots

  • SIC slots: 4
  • WSIC slots (default/max): 2/4
  • XSIC slots (default/max): 4/6

Quote on Huawei AR3200 access router

AR2200 Series

Huawei AR2200 Access Router

The AR2200 routers are next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP). These modular-chassis routers integrate routing, switching, 3G service, LTE service, voice, and security functions. Users customize the routers by selecting the interface cards that meet their requirements.

The AR2200 use the embedded hardware encryption technique and support a voice-optimized Digital Signal Processor (DSP). They provide firewall security, call processing, voice mail, and other application programs.

The AR2200 routers support wired and wireless access modes, including E1/T1, xDSL, xPON, CPOS and 3G. Building on Huawei’s leading data communication and networking technologies, they provide industry-leading system performance and scalability to meet current and future business needs.

Product Features

  • AR2200s include built-in firewalls; provide IPS and URL filtering; 802.1x, MAC, and portal authentication; and support IPSec VPN, EVPN, DSVPN, and Smart VPN secure access
  • Crisp, clear voice communications are assured by built-in BPX, SIP server, and SIP gateway functions; interfaces are provided for connection to third-party NGN/IMS/PBX terminals
  • Switching Router Units (SRUs) on AR2240 main control boards are configurable and upgradable for added flexibility
  • Millisecond fault detection and link backup ensure high availability; line cards are hot-swappable without disrupting service
  • Provides multiple 3G/LTE modes; supports high-speed wireless ACs and multiple APs; integrated wired and wireless access

Product Specification

Specifications

AR2201-48FE

AR2204-27GE/ AR2204-27GE-P

AR2204-51GE-P

AR2220

AR2220E

AR2240C

AR2240

WAN Speed with Services

200 Mbit/s

200 Mbit/s

200 Mbit/s

400 Mbit/s

800 Mbit/s

1 Gbit/s

1 Gbit/s (with SRU40)

2 Gbit/s (with SRU80)

2 Gbit/s (with SRU100E)

3 Gbit/s (with SRU200E)

4.5 Gbit/s (with SRU200)

Fixed WAN Ports

2 x GE (1 x Combo)

3 x GE (1 x Combo)

3 x GE (1 x Combo)

3 x GE (1 x Combo)

3 x GE (1 x Combo)

4 x GE + 4 x GE SFP +2 x GE Combo

SRU40: 3 x GE (2 x Combo)

SRU80: 3 x GE (2 x Combo)

SRU100E: 4 x GE Combo+ 2 x GE SFP

SRU200E: 4 x GE Combo+ 2 x 10 GE SFP+

SRU200: 4 x GE Combo+ 2 x 10 GE SFP+

Fixed LAN Ports

48 x FE (FE0, FE47 can be configured as WAN interfaces)

24 x GE/24 x GE (8 x GE ports support PoE)

48 x GE (8 x GE ports support PoE)

-

-

-

-

SIC Slots

0

4

4

4

4

4

4

WSIC Slots (default/max.)

0

0

0

2/4

2/4

2/4

2/4

XSIC Slots (default/max.)

0

0

0

0/2

0/2

2/4

2/4

Wireless Controller

Wireless Controller is integrated in software

Maintenance

U-disk deployment supported

All interface cards support hot-swapping

U-disk deployment supported

All interface cards support hot-swapping

U-disk deployment supported
All interface cards support hot-swapping

U-disk deployment supported
All interface cards support hot-swapping

U-disk deployment supported
All interface cards support hot-swapping

U-disk deployment supported
All interface cards support hot-swapping

U-disk deployment supported

Memory

512 MB

512 MB

512 MB

2 GB

1 GB

2 GB

2 GB/4 GB

Flash

512 MB

512 MB

512 MB

2 GB/4 GB

512 MB/4 GB

2 GB/4 GB

2 GB/4 GB

Power Supply

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

Redundant Power Supply

External RPS

Internal: AC

Internal: AC

-

External RPS

Internal: AC, DC

Internal: AC, DC

Rack Height

1 RU

1 RU

1 RU

1 RU

1 RU

2 RU

2 RU

Dimensions (H x W x D)

44.5 mm x 442 mm x 310 mm

44.5 mm x 442 mm x 420 mm

44.5 mm x 442 mm x 420 mm

44.5 mm x 442 mm x 420 mm

44.5 mm x 442 mm x 420 mm

88.1 mm x 442 mm x 470 mm

88.1 mm x 442 mm x 470 mm

Quote on Huawei AR2240 Access Router

Quote on Huawei AR2200 Access Router

AR1200 Series

Huawei AR1200 Access Router

The AR1200 series integrates routing, switching, 3G service, Wireless LAN (WLAN), voice, and security functions. The AR1200 uses an embedded hardware encryption technique and supports a voice-optimized Digital Signal Processor (DSP). The router supports firewall security, call processing, voice mail, and other applications. It supports wired and wireless access modes, including E1/T1, xDSL, xPON, WiFi, 3G, and more. The AR1220V, AR1220W and AR1220VW models provide Power over Ethernet (PoE) on fixed 100M Ethernet interfaces.

The AR1220 series has been qualified with Microsoft Lync server, and can be seamlessly integrated into Microsoft unified communications solutions.

  • Multi-core CPU, distributed service processing and non-blocking switching structure
  • Various voice functions supported by built-in PBX, SIP server and SIP access gateway (AR1220W, AR1220VW)
  • PoE support(1200V, 1200W, 1200VW)

Product Feature

  • Network monitoring at the service packet level and dynamic hot-swapping provide rapid fault detection and backup
  • Comprehensive security features include built-in firewall and portal authentication using MAC and 802.1x address authentication. VPN support includes IPSec VPN, EVPN, Smart VPN, DSVPN, and A2A VPN
  • Native NGN/IMS/PBX interconnections and support for BPX, SIP server, and SIP gateway provide high-quality IP telephony services
  • Huawei’s Quality of Experience (QoE) feature monitors voice quality in real time, dynamically managing buffer jitter, echo cancellation, and packet loss compensation to maintain high-quality voice communications
  • Supports high-speed wireless ACs and multiple 3G/LTE modes at the same time for seamless wired and wireless voice communications

Product Specification

Specifications

AR1220

AR1220E

AR1220V

AR1220EV

AR1220W

AR1220VW

AR1220EVW

AR1220-D

AR1220C

AR1220F

WAN Speed with Services

200 Mbit/s

400 Mbit/s

200 Mbit/s

400 Mbit/s

200 Mbit/s

200 Mbit/s

400 Mbit/s

200 Mbit/s

200 Mbit/s

400 Mbit/s

Fixed WAN Ports

2 x GE

2 x GE Combo

2 x GE

2 x GE Combo

2 x GE

2 x GE

2 x GE Combo

2 x GE

4 x GE+ 1 x GE SFP

2 x GE (1 x Combo)

Fixed LAN Ports

8 x FE (can be configured as WAN interfaces)

8 x GE (can be configured as WAN interfaces)

8 x FE (can be configured as WAN interfaces)

8 x GE (can be configured as WAN interfaces)

8 x FE (can be configured as WAN interfaces)

8 x FE (can be configured as WAN interfaces)

8 x GE (can be configured as WAN interfaces)

8 x FE (can be configured as WAN interfaces)

8 x GE (can be configured as WAN interfaces)

8 x FE (can be configured as WAN interfaces)

Slots

  • SIC slots: 2
  • WSIC slots (default/max): 0/1

3G/LTE

  • FDD LTE: Uplink; 50 Mbit/s, Downlink; 100 Mbit/s
  • CDMA 2000 EV-DO Rev A, WCDMA, individual 3G uplink/backup link

Wireless Controller

Wireless Controller is integrated in software

Wi-Fi

-

-

-

-

802.11b/g/n

802.11b/g/n

802.11b/g/n

-

-

-

Memory

512 MB

1 GB

512 MB

1 GB

512 MB

512 MB

1 GB

512 MB

512 MB

512 MB

Maintenance

All interface cards support hot swapping.

U-disk deployment supported

Power Supply

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

PoE Power: External 100W

AC: 100V to 240V, 50/60 Hz

PoE Power: External 100W

AC: 100V to 240V, 50/60 Hz

PoE Power: External 100W

AC: 100V to 240V, 50/60 Hz

PoE Power: External 100W

AC: 100V to 240V, 50/60 Hz

PoE Power: External 100W

AC: 100V to 240V, 50/60 Hz

DC: –42V to –53V

AC: 100V to 240V, 50/60 Hz

AC: 100V to 240V, 50/60 Hz

Dimensions (H x W x D)

44.5 mm x 390 mm x 220 mm

Quote on Huawei AR1200 Access Router

AR120/150/160/200

Huawei AR150 AR200 Access Router

The AR 120,AR150, AR160 and AR 200 series are fixed interface routers that provide a comprehensive platform for a variety of network topologies, including IMS, NGN, WAN and PSTN. The AR 150, AR160 and AR 200 also employ embedded hardware encryption for security as well as a voice Digital Signal Processor (DSP) for voice services.

The AR 150, AR160 and AR 200 series are mature, stable and quiet routers that offer high performance functionality for small networks, enabling small businesses to greatly increase productivity at a lower cost.

AR 150s, AR160s and AR 200s are easy to deploy, configure and customize, greatly reducing cost of deployment and maintenance, while offering maximum value to customers. These models allow network administrators to expand their networks easily and quickly, saving time and costs. Both models support firewalls, call processing, and application program functionalities.

Product Features

  • Dual-core processor isolates control and data planes, delivering high performance, non-blocking switching and forwarding in a compact form factor
  • Supports wired and wireless communications based on Huawei’s VRP operating system
  • Rapid, plug-and-play setup and fanless cooling for quiet operation makes adding locations to the network quick and easy, lowering costs and maximizing ROI
  • Digital Signal Processor in voice-capable models provides high-fidelity voice transmission across the IP network

Product Specification

Specifications

AR120 Series

AR150 Series

AR160 Series

AR200 Series

WAN Speed with Services

50 Mbit/s

100 Mbit/s

150 Mbit/s

150 Mbit/s

Fixed WAN Ports

1 x FE

AR129: 1 x VDSL2


1 x FE

AR156: 1 x ADSL2 + Annex J

AR157: 1 x ADSL2 + Annex A/M

AR158: 1 x G.SHDSL

1 x GE or 1 x GE Combo

AR162: 1 x SA

AR168: 1 x G.SHDSL

AR169: 1 x VDSL2

1 x FE

AR207: 1 x ADSL2 + Annex A/M

AR208: 1 x G.SHDSL

Fixed Ethernet Switching Ports

4 x FE (can be configured as WAN interfaces)

4 x FE (can be configured as WAN interfaces)

4 x GE (can be configured as WAN interfaces)

8 x FE (can be configured as WAN interfaces)

Fixed Voice Ports

-

-

4 x FXS, 1 x FXO (Voice model)

-

Integrated 3G/LTE

-

WCDMA HSPA+7 (3G model)

LTE FDD (LTE model)

WCDMA HSPA+7 (3G model)

Wi-Fi

802.11b/g/n
(Wi-Fi model)

802.11b/g/n
(Wi-Fi model)

802.11b/g/n
(Wi-Fi model)

802.11b/g/n
(Wi-Fi model)

Memory

256 MB

512 MB

512 MB or 1 GB

512 MB

Flash

256 MB

512 MB

512 MB

512 MB

Dimensions (H x W x D)

44.5 mm x 300 mm x 220 mm

44.5 mm x 300 mm x 220 mm

44.5 mm x 300 mm x 220 mm

44.5 mm x 300 mm x 220 mm

Quote on Huawei AR120 Access Router

Quote on Huawei AR150 Access Router

Quote on Huawei AR160 Access Router

Quote on Huawei AR200 Access Router
