Huawei AR120,AR150, AR160&AR200 Enterprise Routers

Huawei’s next-generation routers, the AR120 , AR150, AR160, and AR200 series are designed for enterprise branch offices and small businesses, delivering a comprehensive set of services, including routing, switching, voice, security, and wireless access.

Fixed interface access routers providing routing and switching functionality for branch offices and small businesses. Easy installation and configuration, quiet, fanless operation suitable for normal office environments.

Available with four or eight Fast Ethernet (FE) ports and two uplink ports for load balancing and link protection; total capacity 100 to 150 Mbit/s. Excellent voice and data support including wireless access.

Robust security features include built-in firewall, a broad range of VPN options, and comprehensive authentication and defense mechanisms.



Product Overview

The AR120, AR150, AR160, and AR200 series are fixed interface routers that provide a comprehensive platform for a variety of network topologies, including IMS, NGN, WAN, and PSTN. The AR120, AR150, AR160, and AR200 also employ embedded hardware encryption for security as well as a voice Digital Signal Processor (DSP) for voice services.

The AR120, AR150, AR160, and AR200 series are mature, stable, quiet routers that offer high performance functionality for small networks, enabling small businesses to greatly increase productivity at a lower cost.

AR120s, AR150s, AR160s, and AR200s are easy to deploy, configure and customize, greatly reducing cost of deployment and maintenance, while offering maximum value to customers. These models allow network administrators to expand their networks easily and quickly, saving time and costs. Both models support firewalls, call processing, and application program functionalities.

The AR120, AR150, AR160, and AR200 series includes the following models:

The specifications for these models are shown in the following table:

AR120 models

Model Description

AR121

AR121

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x FE WAN
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR121W

AR121W

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x FE WAN, and 802.11 b/g/n
  • Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)

AR129

AR129

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x VDSL2 WAN
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR129W

AR129W

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x VDSL2 WAN, and 802.11 b/g/n
  • Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)

AR150 models

Model Description

AR151

AR151

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x FE WAN
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR151G-HSPA

AR151G-HSPA+7

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x FE WAN, and WCDMA HSPA+7
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR156

AR156

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x ADSL2+ Annex J
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR156W

AR156W

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x ADSL2+ Annex J, and 802.11 b/g/n
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR157

AR157

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x ADSL2+ Annex A/M
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR157G-HSPA

AR157G-HSPA+7

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x ADSL2+ Annex A/M, and WCDMA HSPA+7
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR157VW

AR157VW

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x ADSL2+ Annex A/M, and 802.11 b/g/n
  • Fixed Voice ports: 4 x FXS, 1 x FXO
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR157W

AR157W

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x ADSL2+ Annex A/M, and 802.11 b/g/n
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR158W

AR158E

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x G.SHDSL 4-pair,
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR158EVW

AR158EVW

  • WAN speed with services (IMIX): 100 Mbit/s
  • Fixed ports: 4 x FE LAN, 1 x G.SHDSL 4-pair, and 802.11 b/g/n
  • Fixed Voice ports: 4 x FXS, 1 x FXO
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR160 models

Model Description

AR161

AR161

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE WAN
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR161F

AR161F

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR161FW

AR161FW

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN, and 802.11 b/g/n
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR161FG-L

AR161FG-L

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN, and FDD LTE
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR161FGW-L

AR161FGW-L

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN, FDD LTE, and 802.11 b/g/n
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR161G-L

AR161G-L

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE WAN, and FDD LTE
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR161W

AR161W

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE WAN, and 802.11 b/g/n
  • Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)

AR161FV-1P

AR161FV-1P

  • WAN speed with services (IMIX): 150 Mbps
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN
  • Fixed Voice ports: 1 x VE1
  • Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)

AR162F

AR162F

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN, and 1 x SA
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR168F

AR168F

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x G.SHDSL 8-wire, and 1 x GE Combo WAN
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR169

AR169

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x VDSL2
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR169F

AR169F

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x VDSL2 with bonding, and 1 x GE Combo WAN
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR169FVW

AR169FVW

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN, 1 x VDSL2 with bonding, and 802.11 b/g/n
  • Fixed Voice ports: 4 x FXS, 1 x FXO
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR169FGW-L

AR169FGW-L

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN, 1 x VDSL2 with bonding, and LTE FDD, 802.11 b/g/n
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR169FGVW-L

AR169FGVW-L

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x GE Combo WAN, 1 x VDSL2 with bonding, LTE FDD, and 802.11 b/g/n
  • Fixed voice ports: 4 x FXS, 1 x FXO
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR169G-L

AR169G-L

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x VDSL2 compatible with ADSL2+ Annex A/M, and FDD LTE
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR169W

AR169W

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 4 x GE LAN, 1 x VDSL2, and 802.11 b/g/n
  • Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)

AR200 models

Model Description

AR201

AR201

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 8 x FE LAN, 1 x FE WAN
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR207

AR207

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 8 x FE LAN, 1 x ADSL2+ Annex A/M
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR207G-HSPA

AR207G-HSPA+7

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 8 x FE LAN, WCDMA HSPA+7, and 1 x ADSL2+ Annex A/M
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)

AR208E

AR208E

  • WAN speed with services (IMIX): 150 Mbit/s
  • Fixed ports: 8 x FE LAN, 1 x G.SHDSL 4-pair
  • Dimensions (H x W x D): 1.78 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)



Product Specification



Item AR121 AR121W AR129 AR129W
Hardware
WAN Speed with Services (IMIX) 100 Mbit/s 100 Mbit/s 100 Mbit/s 100 Mbit/s
Fixed WAN Ports 2 x FE (the interface LAN 0 of which can be used as one WAN interface) 2 x FE (the interface LAN 0 of which can be used as one WAN interface) 1 x VDSL2 (compatible with ADSL2+ Annex A/M, AnnexB/J)

1 x VDSL2 (compatible with ADSL2+ Annex A/M, AnnexB/J)

Fixed Ethernet Switching Ports 4 x FE 4 x FE 4 x FE 4 x FE
Fixed Voice Ports
Integrated3G 802.11 b/g/n 802.11 b/g/n
USB 2.0 Ports 1 1 1 1
Console Ports 1 1 1 1
Memory Size 256 MB 256 MB 256 MB 256 MB
Flash Memory 256 MB 256 MB 256 MB 256 MB
PoE Power PoE Power PoE Power
Maximum Power 24W 24W 24W 24W
Power Supply (AC) 100V to 240V 100V to 240V 100V to 240V 100V to 240V
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Dimensions (H x W x D) 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 20 mm) 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)
Operating Temperature 32 oF to 113 oF (0 oC to 45oC) 32 oF to 113 oF (0 oC to 45oC) 32 oF to 113 oF (0 oC to 45 oC) 32 oF to 113 oF (0 oC to 45 oC)
Relative Humidity 5% to 95% (non-condensing) 5% to 95% (non-condensing) 5% to 95% (non-condensing) 5% to 95% (non-condensing)
Software
Basic Features ARP, PBR, DNS, DHCP, and NAT
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 Routing Static route, RIP, and BGP
IPv6 Routing Static route, RIPng, and BGP4+
Multicast IGMP version 1/2/3, MLD
VPN IPSec VPN, GRE VPN, and L2TP VPN
QoS MQC, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCPWRED), congestion management (LAN interface: SP/WRR/SP WRR WAN interface: PQ/CBWFQ), and MQC (traffic classification, traffic behavior, and traffic policy)
Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, broadcast storm suppression, ARPsecurity, ICMP attack defense, URPF, blacklist, IP source tracing, PKI, and HTTPS
Management and Maintenance Upgrade management, device management, web-based GUI, RMON, NTP, auto-config, site deployment using USB disk, and CLI



Item AR201/AR151 AR156/AR156W AR207/AR157 AR207G-HSPA+7/AR157G-HSPA+7 AR208E/AR158E
Hardware
WAN Speed with Services (IMIX) 150 Mbit/s



or 100 Mbit/s

100 Mbit/s

150 Mbit/s



 or 100 Mbit/s

150 Mbit/s

 or 100 Mbit/s

150 Mbit/s



 or 100 Mbit/s

Fixed WAN Ports 2 x FE (the interface LAN 0 of which can be used as one WAN interface) 1 x ADSL2+ Annex J, 1 x FE (the interface LAN 0 of which can be used as one WAN interface) 1 x ADSL2+ Annex A/M, 1 x FE (the interface LAN 0 of which can be used as one WAN interface) 1 x ADSL2+ Annex A/M 1 x G.SHDSL 4-pair
Fixed Ethernet Switching Ports 8 x FE/4 x FE 8 x FE/4 x FE 8 x FE 8 x FE/4 x FE 8 x FE/4 x FE
Fixed Voice Ports - - - - -
Integrated3G - - - WCDMA HSPA+7 -
USB 2.0 Ports 1 1 1 1 1
Console Ports 1 1 1 1 1
Memory Size 512 MB 512 MB 512 MB 512 MB 512 MB
Flash Memory 512 MB 512 MB 512 MB 512 MB 512 MB
PoE Power - - - - -
Maximum Power 36W/24W 24W 36W/24W 36W/24W 36W/24W
Power Supply (AC) 100V to 240V 100V to 240V 100V to 240V 100V to 240V 100V to 240V
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Dimensions (H x W x D) 1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)   1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)  1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)  1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)  1.7 in. x 11.8 in. x 8.7 in. (44.5 mm x 300 mm x 220 mm)
Operating Temperature 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C)
Relative Humidity 5% to 95% (non- condensing) 5% to 95% (non- condensing) 5% to 95% (non- condensing) 5% to 95% (non- condensing) 5% to 95% (non- condensing)
Software
Basic Features DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features)
WLAN (AP) AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMP Version 1/2/3, PIM SM, PIM DM, and MSDP
VPN IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN
QoS DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP WRR  WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)
Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMP Version 1/2c/3), RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI



Item AR151G-HSPA+7 AR157VW AR157W AR158EVW
Hardware
WAN Speed with Services (IMIX) 100 Mbit/s 100 Mbit/s
100 Mbit/s
100 Mbit/s
Fixed WAN Ports 1 x FE 1 x ADSL2+ Annex A/M 1 x ADSL2+ Annex A/M 1 x G.SHDSL 4-pair
Fixed Ethernet Switching Ports 4 x FE 4 x FE 4 x FE 4 x FE
Fixed Voice Ports - 4 x FXS, 1 x FXO - 4 x FXS, 1 x FXO
Integrated3G WCDMA HSPA+7 - - -
USB 2.0 Ports 1 1 1 1
Console Ports 1 1 1 1
Memory Size 512 MB 512 MB 512 MB 512 MB
Flash Memory 512 MB 512 MB 512 MB 512 MB
PoE Power - - - -
Maximum Power 24W 60W 24W 60W
Power Supply (AC) 100V to 240V 100V to 240V 100V to 240V 100V to 240V
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Dimensions (H x W x D) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm)
Operating Temperature 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C)
Relative Humidity 5% to 95% (non- condensing) 5% to 95% (non- condensing) 5% to 95% (non- condensing) 5% to 95% (non- condensing)
Software
Basic Features DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features)
WLAN (AP) AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMP Version 1/2/3, PIM SM, PIM DM, and MSDP
VPN IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN, and Smart VPN
QoS DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR WAN interface: PQ/CBWFQ),MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)
Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMP Version 1/2c/3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI



Item AR161 AR161G-L AR161W
Hardware
WAN Speed with Services (IMIX) 150 Mbit/s 150 Mbit/s 150 Mbit/s
Fixed WAN Ports 1 x GE 1x GE  1 x GE
Fixed Ethernet Switching Ports 4 x GE 4 x GE 4 x GE
Fixed Voice Ports
Integrated LTE FDD LTE
Wi-Fi

802.11 b/g/n
USB 2.0 Ports 1 1 1
Console Ports 1 1 1
Memory Size 512 MB 512 MB 512 MB
Flash Memory 512 MB 512 MB 512 MB
PoE Power
Maximum Power 24W 24W 24W
Power Supply (AC) 100V to 240V 100V to 240V 100V to 240V
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Dimensions (H x W x D) 44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)
44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)

44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)

Operating Temperature 0°C to 45°C
0°C to 45°C
0°C to 45°C
Relative Humidity 5% to 95% (non-condensing) 5% to 95% (non-condensing) 5% to 95% (non-condensing)
Software
Basic Features DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management
WLAN (AP) AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP ,WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMP Version 1/2/3, PIM SM, PIM DM, and MSDP
VPN IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN
QoS DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)
Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACSauthentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMP Version 1/2c/3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI



Item AR161F AR161FW AR161FG-L AR161FGW-L AR161FV-1P AR162F
Hardware
WAN Speed with Services (IMIX) 150 Mbit/s 150 Mbit/s
150 Mbit/s 150 Mbit/s  150Mbit/s 150 Mbit/s
Fixed WAN Ports 1 x GE Combo 1 x GE Combo
1 x GE Combo 1 x GECombo  1 x GE Combo
1 x SA, 1 x GE Combo
Fixed Ethernet Switching Ports 4 x GE 4 x GE
4 x GE 4 x GE  4 x GE
4 x GE
Fixed Voice Ports
 1VE1
Integrated LTE
FDD LTE FDD LTE  —
Wi-Fi
802.11 b/g/n
802.11 b/g/n
 —

USB 2.0 Ports 1 1
1 1  1 1
Console Ports 1 1
1 1  1 1
Memory Size 512 MB 512 MB
512 MB 512 MB  512MB 512 MB
Flash Memory 512 MB 512 MB
512 MB 512 MB  512MB 512 MB
PoE Power
 —
Maximum Power 24W 24W
24W 24W  24W
36W
Power Supply (AC) 100V to 240V 100V to 240V
100V to 240V 100V to 240V  100V to 240V
100V to 240V
Frequency 50/60 Hz 50/60 Hz
50/60 Hz 50/60 Hz  50/60 Hz
50/60 Hz
Dimensions (H x W x D) 44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)

44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)

44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)

44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)

44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)

44.5 mm x 300 mm x 220 mm   (1.75 in. x 11.8 in. x 8.66 in.)
Operating Temperature 0°C to 45°C
0°C to 45°C
30°C to 45°C
0°C to 45°C
0°C to 45°C
0°C to 45°C
Relative Humidity 5% to 95% (non-condensing) 5% to 95% (non-condensing)
5% to 95% (non-condensing) 5% to 95% (non-condensing)  5% to 95% (non-condensing)
5% to 95% (non-condensing)
Software
Basic Features DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management
WLAN (AP) AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP ,WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMP Version 1/2/3, PIM SM, PIM DM, and MSDP
VPN IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN
QoS DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)
Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARPsecurity, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMP Version 1/2c/3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI
Item AR169 AR169G-L AR169W
Hardware
WAN Speed with Services (IMIX) 150 Mbit/s 150 Mbit/s 150 Mbit/s
Fixed WAN Ports 1 x VDSL2(compatible with ADSL2+ Annex A/M, Annex B/J)
1 x VDSL2(compatible with ADSL2+ Annex A/M, Annex B/J)
1 x VDSL2(compatible with ADSL2+ Annex A/M, Annex B/J)
Fixed Ethernet Switching Ports 4 x GE 4 x GE 4 x GE
Integrated3G/LTE FDD LTE
USB 2.0 Ports 1 1 1
Console Ports 1 1 1
Memory Size 512 MB 512 MB 512 MB
Flash Memory 512 MB 512 MB 512 MB
PoE Power
Maximum Power 24W 24W 24W
Power Supply (AC) 100V to 240V 100V to 240V 100V to 240V
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Dimensions (H x W x D) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm)
Operating Temperature 32oF to 113oF (0°C to 45°C) 32oF to 113oF (0°C to 45°C) 32oF to 113oF (0°C to 45°C)
Relative Humidity 5% to 95% (non-condensing) 5% to 95% (non-condensing) 5% to 95% (non-condensing)
Software
Basic Features DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features)
WLAN (AP) AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMP Version 1/2/3, PIM SM, PIM DM, and MSDP
VPN IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN
QoS DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)
Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMP Version 1/2c/3), RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI

Item AR168F AR169F AR169FVW AR169FGW-L AR169FGVW-L
Hardware
WAN Speed with Services (IMIX) 150 Mbit/s 150 Mbit/s 150 Mbit/s 150 Mbit/s 150 Mbit/s
Fixed WAN Ports 1 x G.SHDSL 4-pair, 1 x GE Combo

1 x VDSL2 with bonding(compatible with ADSL2+ Annex A/M),

1x GE Combo

1 x VDSL2 with bonding(compatible with ADSL2+ Annex A/M),

1x GE Combo

1 x VDSL2 with bonding(compatible with ADSL2+ Annex A/M),

1x GE Combo

1 x VDSL2 with bonding(compatible with ADSL2+ Annex A/M),

1x GE Combo
Fixed Ethernet Switching Ports 4 x GE 4 x GE 4 x GE 4 x GE 4 x GE
Fixed Voice Ports 4 x FXS, 1 x FXO
Integrated3G/LTE FDD LTE FDD LTE
USB 2.0 Ports 1 1 1 1 1
Console Ports 1 1 1 1 1
Memory Size 512 MB 512 MB 1 GB 1 GB 1 GB
Flash Memory 512 MB 512 MB 512 MB 512 MB 512 MB
PoE Power
Maximum Power 24W 24W 24W 24W 24W
Power Supply (AC) 100V to 240V 100V to 240V 100V to 240V 100V to 240V 100V to 240V
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Dimensions (H x W x D) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm) 1.7 in. x 11.8 in. x 8.6 in. (44.5 mm x 300 mm x 220 mm)
Operating Temperature 32oF to 113oF (0°C to 45°C) 32oF to 113oF (0°C to 45°C) 32oF to 113oF (0°C to 45°C) 32oF to 113oF (0°C to 45°C) 32o F to 113oF (0°C to 45°C)
Relative Humidity 5% to 95% (non- condensing) 5% to 95% (non- condensing) 5% to 95% (non- condensing) 5% to 95% (non- condensing) 5% to 95% (non- condensing)
Software
Basic Features DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features)
WLAN (AP) AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMP Version 1/2/3, PIM SM, PIM DM, and MSDP
VPN IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN
QoS

DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP WRR)
WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)

Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMP Version 1/2c/3), RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI

Deployment Scenarios

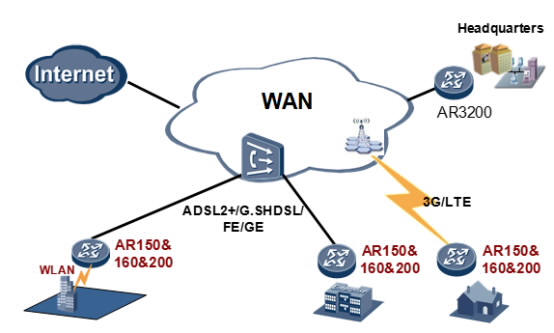

WAN Access

Example deployment in branch networks for WAN access. In this example, the AR150s , AR160s and AR 200s function as the egress routers on enterprise branch networks and provide multiple access methods, including Ethernet, xDSL, 3GLTE, and WLAN.

Huawei AR150 AR160 AR200 WAN Access

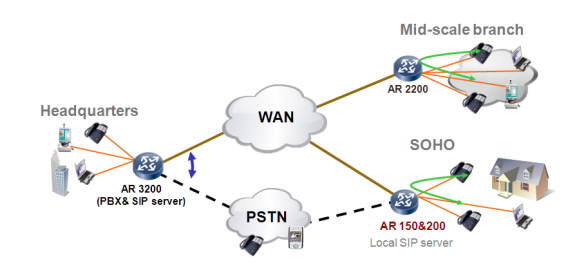

Enterprise Voice Services Deployment

Huawei AR150 AR160 AR200 Voice Service

This illustration shows an AR 150 and AR 200 series router deployed at an enterprise branch with access to a WAN and a PSTN. If a fault occurs on the WAN, the PSTN acts as a backup to the WAN and ensures that call services remain uninterrupted. AR 150s and AR 200s are deployed at enterprise branch offices to provide intelligent, integrated dialing across the network. When deployed as voice service gateways, AR 150s and AR 200s can function as IP PBX boxes and SIP access gateways.

IP PBX. AR 150s and AR 200s have a built-in PBX, which supports the enterprise main number, interactive voice response (IVR), and billing query functions. These features help enhance the corporate image of small businesses by allowing them to look more professional to their customers, while simultaneously improving the efficiency of their enterprise communications.

SIP Server. AR 150s and AR 200s have a built-in SIP server that ensures reliability of voice services. If the SIP server at the headquarters office becomes unreachable, the local built-in SIP server at the branch office ensures that communication remains uninterrupted between branch offices and the PSTN network.

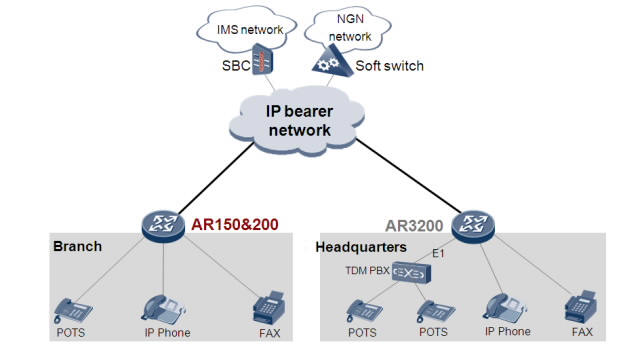

Huawei AR150 AR160 AR200 Built-in IVR PBX

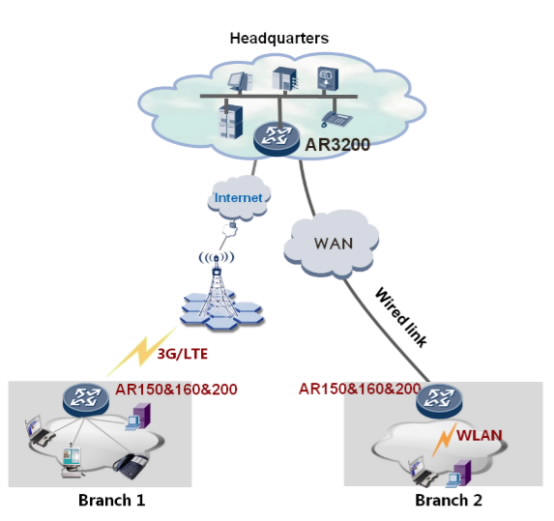

Wireless Access and Management in Branch

Huawei AR150 AR160 AR200 WLAN access

The AR 150s, AR 160s and AR 200s routers complied with 3G and LTE standards including HSPA+ and FDD LTE, meeting the wireless communication requirements between branches and the headquarters. In addition, the 3G or LTE data link can be used as a backup for wired link to protect the xDSL, FE/GE, and ISDN uplinks. The backup link improves network stability and reduces network construction costs.

The AR 150s, AR160s and AR 200s routers integrated WLAN wireless access capabilities, support 802.11a/b/g/n standard communication, Built-in AC function make the deployment and management more conveniently. Its wireless features can meet users’ demand for wireless access, and help enterprises to build a branch network flexibly.

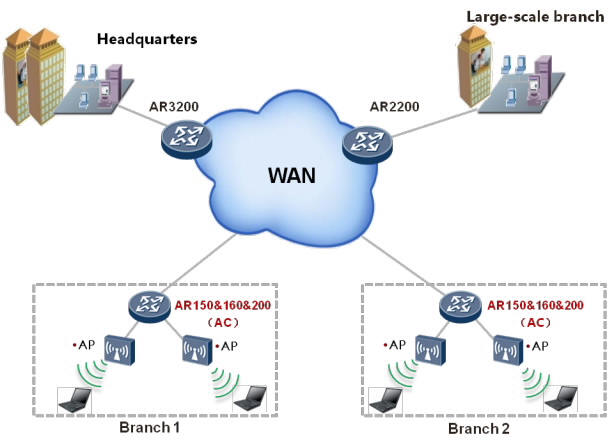

Huawei AR150 AR160 AR200 WAN Aggregation

The AR 150s, AR 160s and AR 200s routers integrated AC (Access Controller, a wireless controller) functionality, which can manage the wireless AP (Access Point, Access Point) in wireless LAN. AR supported rich certification and flexible user access control, which can provide security access guarantee for Wi-Fi users. The rich wireless capabilities integrated in one device, this can realize centralized management of wired and wireless networks, meet the customers’ requirements of building different scale enterprises networks.

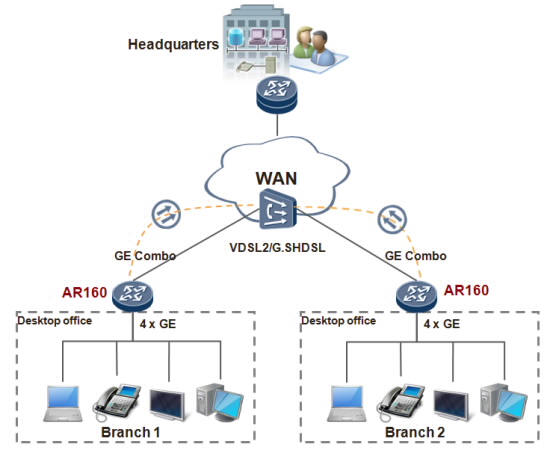

Huawei AR150 AR160 AR200 Branch Office

Huawei new generation AR160 routers integrated 4 GE LAN and 1 GE WAN ports, some models support VDSL2 access, which can provide 100M access bandwidth (800 meters). This new box device can bring a high bandwidth experience to the enterprise and carrier customers.

In the future, if the customers have optical access requirements, they don't need to replace the devices. As the GE WAN port supports Combo switch. The one box solution can meet the customers’ requirements perfectly, thereby protect their investments.

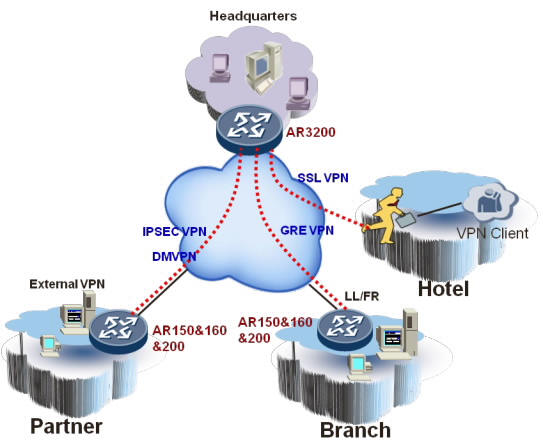

VPN Deployment for Secure Enterprise Communications

Huawei AR150 AR160 AR200 VPN

This illustration shows how to deploy AR 150s, AR 160s and AR 200s using VPNs to connect branches and partners to headquarters.

AR 150s, AR 160s and AR 200s provide various VPN tunnel protocols to ensure secure communications between:

Enterprise branches and other branch offices
Enterprise branches and headquarters
Partners and enterprise resources


AR 150s, AR 160s and AR 200s support the following VPN tunnel protocols:

GRE VPN
IPSEC VPN
DSVPN
L2TP VPN
SSL VPN

AR 150s, AR 160s and AR 200s support fast tunnel set-up and authentication.

Ordering Information

AR120, AR150, AR160, and AR200 series routers are configured by selecting and installing the appropriate configuration module. The configuration module ordering information and descriptions are shown in the following table:

Chassis options

Chassis configuration Description
AR121 AR121, 1 FE WAN, and 4 FE LAN
AR121W AR121W,1FE WAN,4FE LAN,WIFI 2.4G
AR129 AR129,1VDSL WAN,4FE LAN,WIFI 2.4G
AR129W AR129W,1VDSL WAN,4FE LAN,WIFI 2.4G
AR0M0001BA00 AR201, 1 FE WAN, 8 FE LAN, and 1 USB
AR0M0007BA00 AR207, ADSL2+ ANNEX A/M WAN, 8 FE LAN, and 1 USB
AR0M2074BA AR207G-HSPA+7, WCDMA HSPA+7, ADSL2+ ANNEX A/M WAN, 8 FE LAN, and 1 USB
AR0M008EBA00 AR208E, 4 copper pair G.SHDSL WAN, 8 FE LAN, and 1 USB
AR0M1510BA00 AR151, 1 FE WAN, 4 FE LAN, and 1 USB
AR0M1513BA00 AR151G-HSPA+7, 1 FE WAN, WCDMA HSPA+7, 4 FE LAN, and 1 USB
AR0M1560BA AR156, ADSL2+ ANNEX J WAN, 4 FE LAN, and 1 USB
AR156W AR156W, ADSL2+ ANNEX B/J WAN, 4 FE LAN, 802.11b/g/n AP, and 1 USB
AR0M1570BA00 AR157, ADSL2+ ANNEX A/M WAN, 4 FE LAN, and 1 USB
AR0M1576BA00 AR157W, ADSL2+ ANNEX A/M WAN, 4 FE LAN, 802.11b/g/n AP, and 1 USB
AR0M1577BA00 AR157VW, ADSL2+ ANNEX A/M WAN, 4 FE LAN, 802.11b/g/n AP, 4 FXS 1 FXO, and 1 USB
AR0M1574BA00 AR157G-HSPA+7, ADSL2+ ANNEX A/M WAN, WCDMA HSPA+7, 4 FE LAN, and 1 USB
AR0M1580BA AR158E, 4 copper pair G.SHDSL WAN, 4 FE LAN, and 1 USB
AR0M1582BA00 AR158EVW, 4 copper pair G.SHDSL WAN, 4 FE LAN, 802.11b/g/n AP, 4 FXS 1 FXO, and 1 USB
AR161 AR161, 1 GE WAN, 4 GE LAN
AR161F AR161F, 1 GE COMB WAN, 4 GE LAN, and 1 USB
AR161FG-L AR161FG-L, 1 GE COMB WAN, LTE FDD, 4 GE LAN, and 1 USB
AR161FGW-L AR161FGW-L, 1 GE COMB WAN, LTE FDD, 4 GE LAN, 802.11b/g/n AP, and 1 USB
AR161FW AR161FW, 1 GE Combo WAN, 4 GE LAN, 1 USB, and 1 WLAN
AR161G-L AR161G-L, 1 GE WAN, 4 GE LAN, and LTE
AR161W AR161W,1GE WAN,4GE LAN,WIFI 2.4G
AR161FV-1P
AR161FV-1P, 1GE COMBO WAN, 4GE LAN, 1 USB, 1 VE1
AR162F AR162F, 1 SA, 1 GE Combo WAN, 4 GE LAN, and 1 USB
AR168F AR168F, 4 copper pair G.SHDSL WAN, 1 GE COMB WAN, 4 GE LAN, and 1 USB
AR169 AR169, 1 VDSL WAN, 4 GE LAN
AR169F AR169F, VDSL over POTS with bonding WAN, 1 GE COMB WAN, 4 GE LAN, and 1 USB
AR169FVW AR169FVW, 1 GE Combo WAN, 4 GE LAN, 1 USB, 4 FXS, 1 FXO, and 1 WLAN
AR169FGW-L AR169FGW-L, 1 GE Combo WAN, 4 GE LAN, 1 USB, and 4 1 WLAN
AR169FGVW-L AR169FGVW-L, 1 GE Combo WAN, 4 GE LAN, 1 USB, 4 FXS, 1 FXO,  and 1 WLAN
AR169G-L AR169G-L, 1 VDSL WAN, 4 GE LAN, and LTE
AR169W AR169W, 1 VDSL WAN, 4 GE LAN, Wi-Fi 2.4G

Power module options

Power module Description
AR0MPSAP1000 100W PoE Power Module
W0ACPSE03 Adapter, 32 oF, 104 oF , 90V, 264V, 12V/3A, C8/4 pin (0oC, 40oC, 90V, 264V, 12V/3A, C8/4 pin)

License options

License Description
LAR0DATAE01 AR150/160/200 Value-Added Data Package
LAR0AC01 AR150/160/200 AC Express License
LAR0VOICEE01 AR150/200 Value-Added Voice Package
LAR0CMBEST01 AR CM & BEST License (5 telephones)
LAR0CMBEST02 AR CM & BEST License (25 telephones)
LAR0CT01 AR CT (Call Trunk) License (5 sessions)
LAR0CT02 AR CT (Call Trunk) License (25 sessions)
LAR0IVR01 AR IVR (Interactive Voice Response) License (1 session)
LAR0SECE01 AR150/160/200 Value-Added Security Package
LAR0DSVPN01 AR150/160/200 DSVPN (Dynamic Smart VPN) Function

SD card and USB disk options

SD cards & USB disks  Description
NUSBDSK01 Storage USB DISK, 4 GB, and USB 2.0




Huawei AR150 AR160 AR200 access router

Huawei AR120, AR150, AR160 &AR200 Routers

Dual-core processor isolates control and data planes, delivering high performance, non-blocking switching and forwarding in a compact form factor

Supports wired and wireless communications based on Huawei’s VRP operating system

Rapid, plug-and-play setup and fanless cooling for quiet operation makes adding locations to the network quick and easy, lowering costs and maximizing ROI

Digital Signal Processor in voice-capable models provides high-fidelity voice transmission across the IP network
