Huawei AR2200 Enterprise Routers

For AR2200 Price, Features, Document, Click Here

The AR2200 routers are next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP). These modular-chassis routers integrate routing, switching, 3G service, LTE service, voice, and security functions. Users customize the routers by selecting the interface cards that meet their requirements.

The AR2200 use the embedded hardware encryption technique and support a voice-optimized Digital Signal Processor (DSP). They provide firewall security, call processing, voice mail, and other application programs.

  • 4/8/12 core CPU, distributed service processing and nonblocking switching structure
  • Hot swappable interface cards redundant components such as fan modules and power modules
  • Supports various wired and wireless access modes: such as Ethernet, E1/T1, xDSL, xPON, CPOS, 3G, etc.
  • Forwarding capacity: 1Mpps(AR2220), 2Mpps(AR2240 with SRU40), 2.5M (AR2240 with SRU60),
    4Mpps(AR2240 with SRU80)

AR2200 Models

Model

Description

Huawei AR2201-48FE

AR2201-48FE

WAN speed with services(IMIX): 200Mbps
Fixed port: 2xGE (one combo port), 48xFE
Slot: 1xExpansion slot
Dimensions (H x W x D): 44.5mm x 442mm x 310mm

Huawei AR2202-48FE

AR2202-48FE

WAN speed with services(IMIX): 200Mbps
Fixed port: 2xGE (one combo port), 1xE1, 1xSA, 48xFE
Slot: 1xExpansion slot
Dimensions (H x W x D): 44.5mm x 442mm x 310mm

Huawei AR2204

AR2204

WAN speed with services(IMIX): 200Mbps
Fixed port: 3xGE (one combo port),
Slot: 4xSIC
Dimensions (H x W x D): 44.5mm x 442mm x 420mm

AR204-27GE
AR2204-27GE
WAN speed with services (IMIX): 200 Mbit/s
Fixed port: 3 x GE (1 combo port), 24 x GE
Slot: 4 x SIC
Dimensions (H x W x D): 44.5 mm x 442 mm x 420 mm
AR2204-27GE-P
AR2204-27GE-P
WAN speed with services (IMIX): 200 Mbit/s
Fixed port: 3 x GE (1 combo port), 24 x GE (8 GE ports support PoE)
PoE: compliance with IEEE 802.3af and 802.3at
Slot: 4 x SIC
Dimensions (H x W x D): 44.5 mm x 442 mm x 420 mm
AR2204-51GE-P
AR2204-51GE-P
WAN speed with services (IMIX): 200 Mbit/s
Fixed port: 3 x GE (1 combo port), 48 x GE (8 GE ports support PoE)
PoE: compliance with IEEE 802.3af and 802.3at
Slot: 4 x SIC
Dimensions (H x W x D): 44.5 mm x 442 mm x 420 mm

Huawei AR2220

AR2220

Forwarding performance(64 Byte): 1 Mpps
WAN speed with services(IMIX): 400 Mbps
Fixed port: 3xGE (one combo port)
Slot: 4xSIC + 2xWSIC
Dimensions (H x W x D): 44.5 mm x 442 mm x 420mm

AR2220E
AR2220E
WAN speed with services (IMIX): 800 Mbit/s
Fixed ports: 3 x GE (1 Combo port)
Slots: 4 x SIC + 2 x WSIC
Dimensions (H x W x D): 44.5 mm x 442 mm x 420 mm
AR2240C
AR2240C
WAN speed with services (IMIX): 1 Gbit/s
Fixed port: 4 x GE + 4 x GE SFP + 2 x GE Combo
Slot: 4 x SIC + 2 x WSIC + 2 x XSIC
Dimensions (H x W x D): 88.1 mm x 442 mm x 470 mm

Huawei AR2240

AR2240

WAN speed with services(IMIX):
600 Mbps (with SRU40*)
800 Mbps (with SRU60*)
1800 Mbps (with SRU80*)
4.5Gbps(with SRU200*)
Hardware-based Traffic Management (with SRU80* and SRU200*)
Hardware-based HQoS (with SRU80* and SRU200*)
Fixed port: 3 x GE(2 x Combo) /4 x GE Combo+ 2 x 10GE
Slot: 4xSIC + 2xWSIC + 2xXSIC
Dimensions (H x W x D): 88.1 mm x 442 mm x 470 mm

Product Specification

Technical Specifications

Item AR2201-48FE AR2204-27GE AR2204-27GE-P AR2204-51GE-P

Hardware

WAN Speed with Services

200 Mbit/s

200 Mbit/s

200 Mbit/s

200 Mbit/s

Firewall Performance

(large packets)

900 Mbit/s

1.2 Gbit/s

1.2 Gbit/s

1.2 Gbit/s

Device Switching Capacity

-

30 Gbit/s

30 Gbit/s

50 Gbit/s

Fixed WAN Ports

2 x GE (1 x combo port)

3 x GE (1 x combo port)

3 x GE (1 x combo port)

3 x GE (1 x combo port)

Fixed LAN Ports

48 x FE

24 x GE

24 x GE

48 x GE

SIC Slots

0

4

4

4

WSIC Slots (default/max**)

0

0

0

0

XSIC Slots (default/max**)

0

0

0

0

USB 2.0 Ports

1

1

1

1

Mini-USB Ports

1

1

1

1

Console Port

1

1

1

1

Memory

512 MB

512 MB

512 MB

512 MB

Flash (default/max**)

512 MB

512 MB

512 MB

512 MB

Maximum Power

60W

60W

60W

60W

Redundant Power Supply

External RPS

-

Internal: AC

Internal: AC

AC Power

100V to 240V

100V to 240V

100V to 240V

100V to 240V

Frequency

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

DC Power

-

-

-

-

Dimensions (height x width x depth)

44.5 mm x 442 mm x 310 mm

44.5 mm x 442 mm x 420 mm

44.5 mm x 442 mm x 420 mm

44.5 mm x 442 mm x 420 mm

Weight

4.8 kg

4.95 kg (without power module and interface card)

4.95 kg (without power module and interface card)

4.95 kg (without power module and interface card)

Ambient Temperature

0°C to 45°C

0°C to 45°C

0°C  to 45°C

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

Software

Basic Features

DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and Subinterface management

3G

3G Interface card (WCDMA), 3G USB dongle

LTE

LTE Interface card (FDD LTE: Uplink: 50 Mbit/s   Downlink: 100 Mbit/s), LTE USB dongle

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMP v1/v2/v3, IGMP-Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing with Committed Access Rate (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP-based WRED), congestion management (LAN interface: SP, WRR, SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, FR QoS, Smart Application Control (SAC), and Hard QoS (SRU80 Main Boards support)

Security

ACL, firewall, 802.1x authentication, MAC address authentication, Web Authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, and IP source tracing

Management and Maintenance

Upgrade management, device management, web-based GUI, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, and CLI

Technical Specifications

Item AR2220 AR2220E AR2240C AR2240

Hardware

WAN Speed with Services

400 Mbit/s

800 Mbit/s

1 Gbit/s

1 Gbit/s (With SRU40)

2 Gbit/s (With SRU80)

2.5 Gbit/s (With SRU100E)

3 Gbit/s (With SRU200E)

4.5 Gbit/s (With SRU200)

Firewall Performance

(large packets)

1.9 Gbit/s

3 Gbit/s

7 Gbit/s

5.5 Gbit/s (With SRU40)

9.5 Gbit/s (With SRU80)

10 Gbit/s (With SRU100E)

12 Gbit/s (With SRU200E)

15 Gbit/s (With SRU200)

Device Switching Capacity

32 Gbit/s

32 Gbit/s

80 Gbit/s

80 Gbit/s

Slot Switching Bandwidth

SIC slots (slot 1, 3) 2 Gbit/s

SIC slots (slot 2, 4) 5 Gbit/s

WSIC slots 5 Gbit/s

XSIC & EXSIC slots 20 Gbit/s

SIC slots (slot 1 ,3) 2 Gbit/s

SIC slots (slot 2, 4) 5 Gbit/s

WSIC slots 5 Gbit/s

XSIC & EXSIC slots 20 Gbit/s

SIC slots 2 Gbit/s

WSIC slots 5 Gbit/s

XSIC & EXSIC slots 20 Gbit/s

SIC slots 2 Gbit/s

WSIC slots 5 Gbit/s

XSIC & EXSIC slots 20 Gbit/s

Fixed WAN Ports

3 x GE (1 x combo port)

3 x GE (1 x combo port)

4 x GE + 4 x GE SFP + 2 x GE Combo

SRU40: 3 x GE (2 x Combo)

SRU80: 3 x GE (2 x Combo)

SRU100E: 4 x GE Combo+ 2 x GE SFP

SRU200E: 4 x GE Combo+ 2 x 10 GE SFP+

SRU200: 4 x GE Combo+ 2 x 10 GE SFP+


SIC Slots

4

4

4

4

WSIC Sots (default/max.**)

2/4

2/4

2/4

2/4

XSIC Slots (default/max.**)

0/2

0/2

2/4

2/4

EXSIC Slot

(shared with XSIC slots)

0

0

1

1

DSP Slots

1

2

0

0/3

USB 2.0 Ports

2

2

2

1/2

Mini-USB Ports

1

1

1

1

Console Port

1

1

1

1

Memory

2 GB

1 GB

2 GB

2 GB/4 GB/8 GB

Flash (default/max.**)

2 GB/4 GB

2 GB/4 GB

2 GB/4 GB

2 GB/4 GB

Maximum Power

150W

150W

350W (Single Power Module)

700W (Dual Power Module)

350W (Single Power Module)

700W (Dual Power Module)

Redundant Power Supply

-

External RPS

Internal: AC, DC

Internal: AC, DC

AC Power

100V to 240V

100V to 240V

100V to 240V

100V to 240V

Frequency

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

DC Power

-48V to -60V

-

-

-48V to -60V

Dimensions (height x width x depth)

44.5 mm x 442 mm x 420 mm

44.5 mm x 442 mm x 420 mm

88.1 mm x 442 mm x 470 mm

88.1 mm x 442 mm x 470 mm

Weight

4.95 kg (without power module and interface card)

4.95 kg (without power module and interface card)

4.95 kg (without power module and interface card)

8.95 kg (without power module and interface card)

Ambient Temperature

0°C to 45°C

0°C to 45°C

0°C to 45°C

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

Software

Basic Features

DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and Subinterface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC

3G

3G Interface card (WCDMA), 3G USB dongle

LTE

LTE Interface card (FDD LTE: Uplink: 50 Mbit/s Downlink: 100 Mbit/s), LTE USB dongle

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMP v1/v2/v3, IGMP-Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing with Committed Access Rate (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP-based WRED), congestion management (LAN interface: SP, WRR, SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, FR QoS, Smart Application Control (SAC), and Hard QoS (SRU80 Main Boards support)

Security

ACL, firewall, 802.1x authentication, MAC address authentication, Web Authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, and IP source tracing

Management and maintenance

Upgrade management, device management, web-based GUI, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, and CLI

Note**: The maximum number of slots contains the number of all combined slots. Both AR2201-48FE and AR2202-48FE can support an expansion slot.

The flash memory storage can be expanded with a micro-SD card.

For more details, please refer to  Huawei AR G3 Enterprise Routers Brief Product Brochure (PDF).

Deployment Scenarios

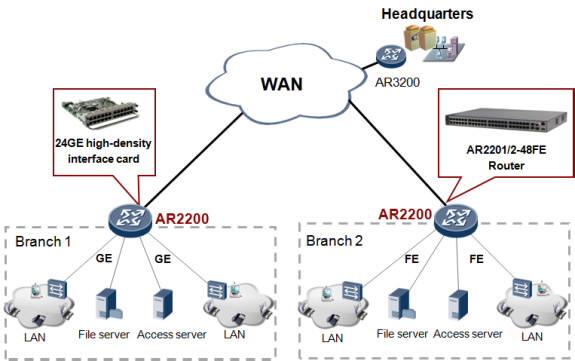

High-Density Ethernet Access

For investment protection, the AR2200 features a highly modular design. In the example above, a high-density GE access interface card is deployed to provide Gigabit speed access at a branch office.

AR2201-48FE and AR2202-48FE are the next-generation routing and switching integrated products of AR2200 series routers. These two new models both integrate 48 Fast Ethernet ports and 2 Gigabit Ethernet ports which can greatly meet the branch high-density Ethernet access requirements. The routing and switching integration device can simultaneously achieve the functionality of the access switches and branch egress router combination. To reduce customer acquisition costs. At the same time can reduce device failure point and network maintenance difficulty.

Huawei AR2200 Ethernet Access

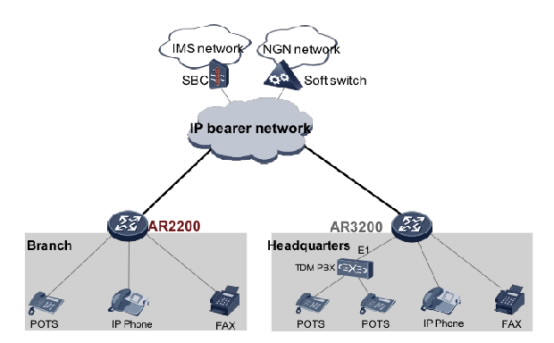

High-Quality Voice Service

Enterprise customers can use the AR2200 as an IP PBX or SIP voice gateway.

Huawei AR2200 High Quality Voice Service

To improve communication efficiency, all AR routers include built-in PBX. This feature supports the enterprise main number, Interactive Voice Response (IVR), and bill query functions. An AR1200 router can provide intelligent dialing in a smaller branch office.

Huawei AR2200 Built-in PBX

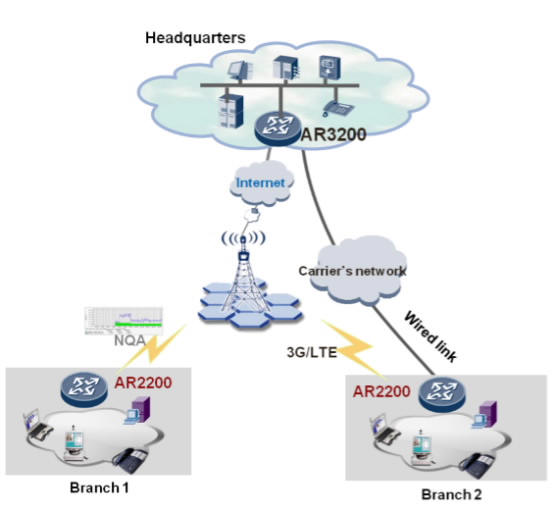

Wireless Access in Branch Offices

TThe AR2200 complies with 3G and LTE standards including CDMA2000 EV-DO, WCDMA and FDD LTE. This can meet the requirements of wireless communication between enterprise branch offices and headquarters. Users can conserve service card slots by using a 3G/LTE USB disk to deploy 3G/LTE services on the AR2200. In addition, the 3G/LTE data link can be used to back up a wired link to protect the xDSL, FE/GE, and ISDN uplinks. The backup link improves network stability and reduces network build-out costs. The Network Quality Analyzer (NQA) monitors 3G link quality, ensuring the network meets Service Level Agreements (SLAs)

Huawei AR2200 Wireless Access

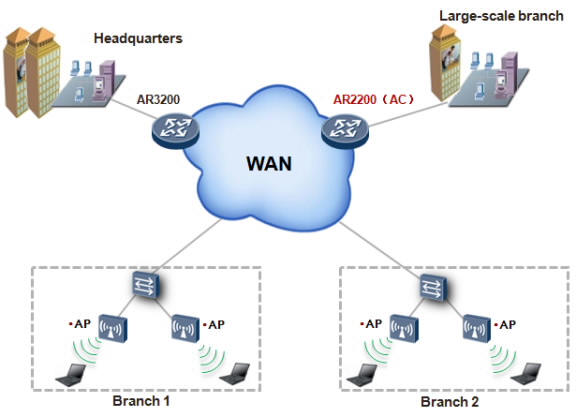

The AR2200 routers integrate AC (Access Controller) functionality, which can manage the wireless AP (Access Point) in wireless LAN. AR2200 supports rich certification and flexible user access control, which can provide security access guarantee for Wi-Fi users. The rich wireless capabilities integrated in one device, this can realize centralized management of wired and wireless networks, to meet the requirements of different scale enterprises networks

Huawei AR2200 WIreless Access

VPN in Branch

The AR220 supports many types of VPN tunnels, including GRE VPN, IPSEC VPN, DSVPN, L2TP VPN, and SSL VPN.

Huawei AR2200 VPN in Branch

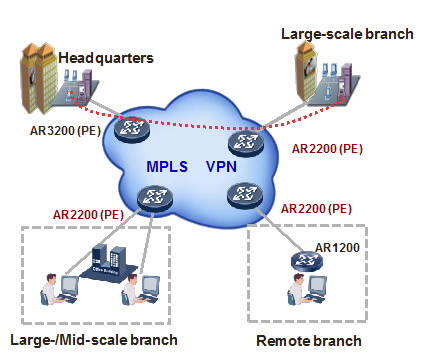

The AR2200 provides secure access for communication among enterprise branch offices as well as between headquarters and branch offices, and headquarters and business partners. Tunnels between the headquarters and branch offices ensure secure data access and transmission. The AR2200 implements fast tunnel deployment and authentication so branch offices and partners can promptly access and share enterprise resources.

Huawei AR2200 MPLS VPN

The AR2200 routers are well-suited to serve as PEs in the branch offices of an enterprise. The MPLS L3 VPN segregates services by type. The AR2200 features flexible deployment, fast distribution, and secure transmission of VPN services, and supports enterprise service operation over networks.

Ordering Information

Begin by ordering the chassis, control board (AR2240), power supply, and fan module (AR2240). Then select a DSP card (if required), interface modules, any special licenses, and any desired accessories (SD card or USB disk).

Chassis options and fan module

Chassis configuration  Description
AR2201-48FE AR2201-48FE, 2 GE WAN (1 GE Combo), 1 USB, 48 FE LAN, and 60W AC power
AR2204-27GE AR2204-27GE, 3 GE WAN (1 GE Combo), 24 GE, 1 USB, 4 SIC, 60W AC POWER
AR2204-27GE-P AR2204-27GE-P, 3 GE WAN (1 GE Combo), 24 GE (8 POE), 1 USB, 4 SIC, 60W AC POWER (1+1)
AR2204-51GE-P AR2204-51GE-P, 3 GE WAN (1 GE Combo), 48 GE (8 POE), 1 USB, 4 SIC, 60W AC POWER (1+1)
AR0M0022BA00 AR2220, 3 GE WAN (1 GE Combo), 2 USB, 4 SIC, 2 WSIC, 1 DSP slot, and 150W AC power
AR0M0022BD00 AR2220, 3 GE WAN (1 GE Combo), 2 USB, 4 SIC, 2 WSIC, 1 DSP slot, and 150W DC power
AR2220E AR2220E, 3 GE WAN (1 GE Combo), 2 USB, 4 SIC, 2 WSIC, 1 DSP DIMM, and 150W AC power
AR0MNTEH10401 BT-NTE-H104 Bundle (includes AR2220 base configuration, 8-port 10/100 BASE (RJ45) and 1-port 10/100/1,000 BASE (RJ45)-L2/L3 Ethernet interface card, 9.8 ft. (3m) shielded straight through Ethernet cable and British-type power cable)
AR2240C AR2240C, SRU40C, 4 SIC, 2 WSIC, 2 XSIC, 350W AC Power
AR2240-100E-AC

AR2240, Service and Router Unit 100E, 4 SIC, 2 WSIC, 2 XSIC, 350W AC Power

AR2240 AR2240 integrated chassis components
AR0MDF05A000 Fan box for AR2240

Main control board options (AR2240 only)

Main control board Description
AR01SRU2C Service and Router Unit 40, 3 GE WAN (2 GE Combo), 2 USB, and 3 DSP Slots
AR01SRU3B Service and Router Unit 80, 3 GE WAN (2 GE Combo), 2 USB, and 3 DSP Slots
AR-SRU200 Service and Router Unit 200
AR-SRU100E

Service and Router unit 100E

AR-SRU200E

Service and Router unit 200E


Power module options

Power module  Description
AR0MPSAP1500 150W AC power module
AR0MPSDP1500 150W DC power module
AR0MPSAR15A 150W RPS power module
AR0MPSAP3500 350W AC power module
AR0MPSDP3500 350W DC power module
02131247

850W AC power module


Digital Signal Processor (DSP) module options

DSP module Description
AR0MDD016A00 16-channel voice DSP module
AR0MDD032A00 32-channel voice DSP module
AR0MDD064A00 64-channel voice DSP module
AR0MDD128A00 128-channel voice DSP module

SIC interface module options

SIC interface module  Description
AR0MSDME1A00 1-port channelized E1/T1/PRI/VE1 multi-flex trunk interface card
AR0MSDE11A00 1-port fractional channelized E1/T1 WAN interface card
AR0MSDME2A00 2-port channelized E1/T1/PRI/VE1 multi-flex trunk interface card
AR0MSDE12A00 2-port fractional channelized E1/T1 WAN interface card
AR0MSDSA1A00 1-port sync/async serial port interface card
AR0MSDSA2A00 2-port sync/async serial port interface card
AR0MSEG1CA00 1-port GE Combo WAN interface card
AR0MSEF2TA00 2-port FE WAN interface card
AR0MSVA4B1A0 4-port FXS and 1-port FXO voice interface card
AR01SVB4XA 4-port FXO voice interface card
AR0MSLA1XA00 1-port ADSL2+ ANNEX A/M WAN interface module, supports wetting current (for Vodafone only)
AR0MSLA1XA01 1-port ADSL2+ ANNEX A/M WAN interface module
AR0MSLB1XA01 1-port ADSL2+ ANNEX B/J WAN interface module
AR01SLV1XA 1-port VDSL2 over POTS WAN interface module
AR0MSLS1XA00 1-port 4 Pair G.SHDSL WAN interface module
AR0MSDS1XA00 1-port ISDN S/T WAN interface card
AR0MSVS2XA00 2-port ISDN S/T voice interface module
AR01SDGW1A 3G HSPA+ 7 interface module
AR0MSOPP2A00 1-port GPON/EPON dual-mode interface card
AR-4ES2G-S 4-port 1,000 BASE-RJ45 L2 Ethernet interface card (SIC)
AR-1VE1-S 1-port VE1 interface card
AR-1LTE-L-S WCDMA LTE interface card
AR-1LTE-LV-S

LTE FDD/DC-HSPA+(NA) Data Card


WSIC interface module options

WSIC interface module  Description
AR01WAE14A 4-port E1 inverse multiplexing for ATM interface card
AR01WDFE4A 4-port fractional E1 WAN interface card
AR01WDFE8A 8-port fractional E1 WAN interface card
AR01WDCE8A 8-port channelized E1/PRI multi-flex trunk interface card
AR-2X10GL-W 2-Port 10 GE Optical Ports Interface Card
AR01WEG4SA 4-port 1,000 BASE-SFP-L3 Ethernet WAN interface card
AR01WEG4SB 4-port 1,000 BASE-SFP-L2 Ethernet interface card
AR01WEG4TA 4-port 1,000 BASE-RJ45-L3 Ethernet WAN interface card
AR0MWDAS8A01 8-port async serial port interface card
AR-1STM1-W 1-port 155M Packet over SDH/SONET optical interface card
AR-4STM1-W 4-port 155M packet over SDH/SONET optical interface card
AR0MWMF9TT00 8-port 10/100 BASE (RJ45) and 1-port 10/100/1,000 BASE (RJ45)-L3 Ethernet switch interface card
AR01WVADXA 16-port FXS voice interface card
AR01WVAHXA 32-port FXS voice interface card
AR-1STM4-W 1-port 622M packet over SDH/SONET optical interface card
AR-1CSTM1-W 1-port 155M channelized packet over SDH/SONET interface card (WSIC)
AR-1E3T3M-W 1-port channelized/unchannelized E3/T3 WAN interface card
AR-9ES2-W 8-port 100M RJ45 and 1-port 1,000M (RJ45)-L2 Ethernet interface card
AR-8SA-W 8-port sync/async serial WAN interface card
AR-4GECS-W 4-port GE Combo WAN interface card (supports syncE)
AR-6EM-W 6-port EM (RJ45) interface card
AR01WSX220B Industrial computer, Celeron 847E, DDR3 4G, 2.5-inch 1 TB HDD, CFAST 4G, and NULL

XSIC interface module options

XSIC interface module  Description
AR0MXEGFTA00 24-port 10/100/1,000 BASE (RJ45)-L2/L3 Ethernet interface card
AR01WSX165B Industrial computer, Ivy Bridge I5-3610, DDR3 16 G, 2.5-inch 1 TB HDD, CFAST 4G, and NULL
AR-24ES2GP-X

24-Port 10/100/1,000 BASE-L2 With POE Ethernet Interface Card (RJ45)*

* Note: The 850W power module is required for the 24-Port 10/100/1,000 BASE-L2 with POE Ethernet Interface Card.

License options

License Description
LAR0DATAE03 AR2200 Value-Added Data Package
LAR0AC03 AR2200 AC Express License
LAR0VOICEE03 AR2200 Value-Added Voice Package
LAR0CMBEST01 AR CM & BEST License (5 telephones)
LAR0CMBEST02 AR CM & BEST License (25 telephones)
LAR0CMBEST03 AR CM & BEST License (100 telephones)
LAR0CT01 AR Call Trunk (CT) License (5 sessions)
LAR0CT02 AR Call Trunk (CT) License (25 sessions)
LAR0CT03 AR Call Trunk (CT) License (100 sessions)
LAR0IVR01 AR Interactive Voice Response (IVR) License (1 session)
LAR0IVR02 AR Interactive Voice Response (IVR) License (12 sessions)
LAR0SECE03 AR2200 Value-Added Security Package
LAR0DSVPN03 AR2200 Dynamic Smart VPN (DSVPN) Function
LAR0IPS03 AR2200 IPS Service Subscription (1-year)
LAR0URLF03 AR2200 URL Filtering Update Service Subscription (1-year)

SD card and USB disk options

SD cards & USB disks  Description
N0MSD2G00 Storage Medium, Micro-SD Card, 2 GB, 2.7V to 3.6V, English SPEC, Supports the SD 1.1 Standard Interface, 0.4 in. x 0.6 in. x 0 in. (11 mm x 15 mm x 1 mm) (L x W x T), no adapter and bar code, and Independence Box (for Datacom Enterprise Network AR production only)
N0MSD4G01 Micro-SD card, 4 GB, CLASS 6, 2.7V to 3.6V, English SPEC, compatible with SD Specification Version 2.0, 0.4 in. x 0.6 in. x 0 in. (11 mm x 15 mm x 1 mm) (L x W x T), no adapter and bar code, and Independence Box (for Datacom Enterprise Network AR production only)
NUSBDSK01 Storage USB Disk, 4 GB, USB 2.0, and no documentation
