Passive Optical LAN (POL)

Check the latest POL Solution Product OLT, ONT, MxU Price and Features Here

With the rapid growth in cloud computing and Internet, more and more enterprises are deploying cloud applications. As a result, the majority of traffic is shifting from neighboring exchanges to data forwarding to or from cloud. Services such as 4K video, high definition surveillance, online education, and Telepresence conferencing are also developing at an exponential rate, requiring higher bandwidths and lower latency. With the rollout of many national broadband networks and fiber city projects, fiber to the home (FTTH) and fiber to the desk are becoming irreversible trends.

A traditional enterprise LAN involves multi-layer Ethernet switch aggregation, which complicates the network architecture. As a result, network operation and maintenance (O&M) costs are high, and bandwidth and service expansion is hard. PON technologies, however, have been successfully applied to residential networks. The fast worldwide FTTH rollout has stimulated the maturation of PON technologies and reduced the cost. A PON network has a flattened architecture. Such a network is easy to manage and maintain, and has low latency and high bandwidth. These features are consistent with the new requirements on enterprise networks, and POL caters to the promotion and application of PON technologies in enterprise.

Huawei AgilePOL solution covers E2E devices, such as OLT (optical line terminal), ODN (optical distribution network), and ONU (optical network unit). It has the following advantages: mature PON technologies; high reliability with dual backhaul protection and hitless software upgrade; coexist and smooth evolution for 10G PON and 40G PON; independent management for each department through virtualization; smart terminal and open platform that support quick integration of new value-added services.

Why passive optical LAN

Telecom operators have deployed GPON for over a decade, providing tens of millions of residential customers with very high-capacity broadband services. The technology is reliable,robust and proven:

• POL is highly scalable, delivering gigabit speeds and potentially unlimited bandwidth. The same cables and access nodes can be reused as new services are introduced and bandwidth is increased.
• POL can reduce TCO by 47 percent in a single year by providing a single simplified, centrally managed network to support all services.
• POL reduces energy costs because passive equipment does not require power or cooling, and POL reduces cabling costs by replacing bulky copper bundles with fiber.
• POL frees up space on customer premises by eliminating the need for telecom equipment closets on every floor. The passive nature of the network requires fewer racks, switches and patch panels than copper-based Ethernet.
• POL is easy and cost effective to upgrade: Simply insert a new line card in the optical line terminal (OLT), patch the fiber to the port where service is needed and change the optical network terminal (ONT) at the user location.

POL vs traditional LAN

In a traditional Ethernet network, the central computer room needs more equipment, space, power/uninterruptible power supply (UPS), and more heating, ventilation and air conditioning (HVAC) controls. Cat 5 and Cat 6 cables run from intermediate distribution frames (IDFs) or risers to the rest of a networked floor. These IDFs need to be finished properly and provided with HVAC and power.

The POL infrastructure is much lighter. Fiber runs from the OLT in the central room throughout the building. Passive splitters can be located anywhere. ONTs are placed at suitable locations to provide Ethernet ports where required.

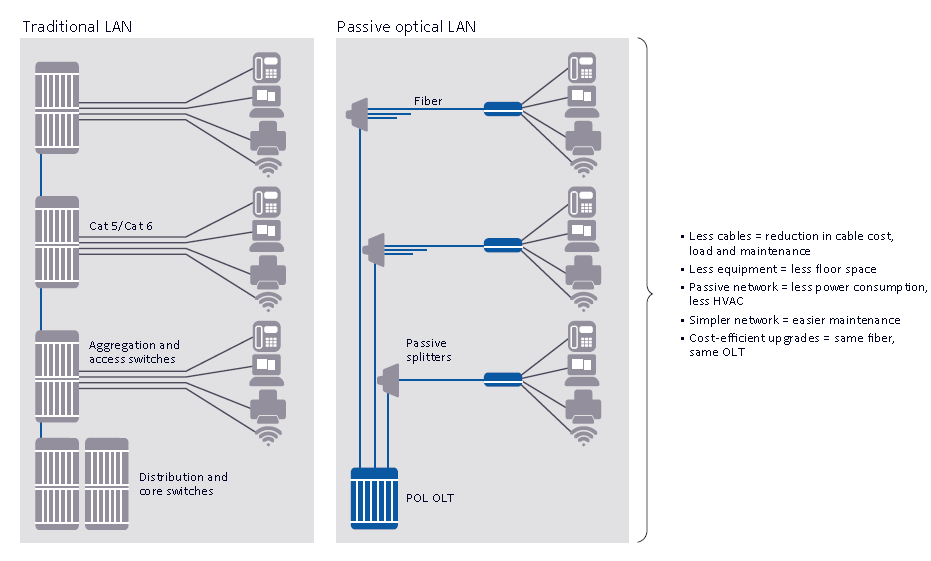

traditional LAN vs POL

Components of a Passive Optical LAN solution

A typical Huawei POL solution includes the following components:

  • OLT (MA5800)
  • Fiber optical
  • ONT (HS8245W GPON Termina)

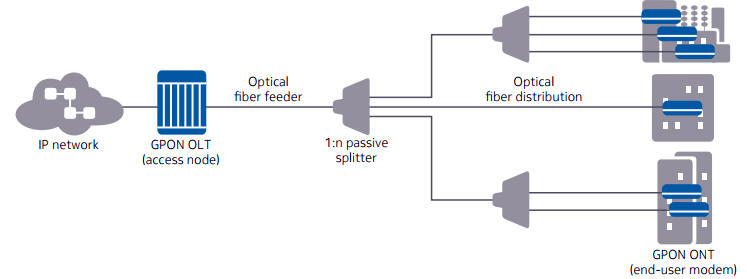

Passice optical LAN POL

Smart NG-OLT MA5800

Introduction

The MA5800, the multi-service access device, is an 8K ready OLT for the Gigaband era. It employs distributed architecture and supports PON/10G PON/TWDM PON in one platform. The MA5800 aggregates services transmitted over different media, provides an optimal 4K/8K video experience, implements service-based virtualization, and supports smooth evolution to 100G PON.
The MA5800 series is available in three models: MA5800-X17, MA5800-X7, and MA5800-X2. They are applicable in FTTB, FTTC, FTTD, FTTH, and D-CCAP networks.
The MA5800 can meet carriers' demands for Gigaband network with wider coverage, faster broadband, and smarter connectivity. For carriers, the MA5800 can provide superior 4K/8K video services, support the implementation of a smart home and all-optical campus plan, and connect home user, enterprise user, mobile backhaul, and Internet of Things (IoT) services in a unified way. Unified service access can reduce central office (CO) equipment rooms, simplify network architecture, and minimize O&M costs.

Front view of MA5800

SmartAX 5800 OLT

Highlights

Gigabit aggregation of services transmitted over different media:The MA5800 leverages the PON/P2P infrastructure to integrate fiber, copper line, and CATV line networks into one access network with unified architecture. On a unified access network, the MA5800 carries out unified access, aggregation, and management, simplifying the network architecture and O&M.

Optimal 4K/8K video experience:A single MA5800 supports 4K video services for 16 thousand homes and can be upgraded to support 8K video services. It uses distributed caches that provide greater space and smoother video traffic, allowing users to start a 4K/8K video or zap between 4K/8K videos more quickly. The video mean opinion score (VMOS) video probe monitors and diagnoses 4K/8K video quality, guaranteeing a good video experience for users.
Service-based virtualization:The MA5800 can logically partition a physical access network. Specifically, it can allocate multiple virtual OLTs to different services (including home, enterprise, and IoT services) to support carriers' smart operations such as differential multi-service operations and network wholesale to Internet service providers (ISPs), thereby reducing CO equipment rooms and operation costs and encouraging deployment of new services with a better experience.

Distributed architecture:The MA5800 is the first OLT with distributed architecture in the industry. Each MA5800 slot offers non-blocking access to sixteen 10G PON ports and can be upgraded to support 100G PON ports. The MAC address and IP address forwarding capacities can be smoothly expanded without replacing the control board, which protects carriers' investment and allows step-by step investment.

Specification

Item

MA5800-X17

MA5800-X15

MA5800-X7

MA5800-X2

Dimensions (W x D x H)

493 mm x 287 mm x 486 mm

442 mm x 287 mm x 486 mm

442 mm x 268.7 mm x 263.9 mm

442 mm x 268.7 mm x 88.1 mm

Maximum Number of Ports in a Subrack

  • 272 x GPON/EPON
  • 816 x GE/FE
  • 136 x 10G GPON/10G EPON
  • 136 x 10G GE
  • 544 x E1
  • 240 x GPON/EPON
  • 720 x GE/FE
  • 120 x 10G GPON/10G EPON
  • 120 x 10G GE
  • 480 x E1
  • 112 x GPON/EPON
  • 336 x GE/FE
  • 56 x 10G GPON/10G EPON
  • 56 x 10G GE
  • 224 x E1
  • 32 x GPON/EPON
  • 96 x GE/FE
  • 16 x 10G GPON/10G EPON
  • 16 x 10G GE
  • 64 x E1

Switching Capacity of the System

7 Tbit/s

480 Gbit/s

Maximum Number of MAC Addresses

262,143

Maximum Number of ARP/Routing Entries

64K

Ambient Temperature

-40°C to 65°C

Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent

Working Voltage Range

-38.4V DC to -72V DC

DC power supply:

-38.4V to -72V

AC power supply:

100V to 240V

Layer 2 Features

VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82

Layer 3 Features

Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF

MPLS & PWE3

MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching

IPv6

IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay

Multicast

IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast

QoS

Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL

System Reliability

GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control

EchoLife Series Optical Network Terminals (ONT)

Introduction

User-side Optical Network Terminals (ONTs) for Fiber-To-The-House (FTTH) solutions provide high-bandwidth access for Small Office/Home Office (SOHO) environments using GPON technologies.

EchoLife HG series ONTs provide POTS ports and FE/GE ports with auto-sensing function for seamless, high-performance access.

Provide enhanced and future-proof services with Huawei’s EchoLife HG series ONTs; available in models for intelligent Layer 2 bridging, bridging + POTS voice, and as a gateway supporting multiple Ethernet, POTS, Wi-Fi, and USB ports.

Front view

Huawei Echolife ONT

Highlights

Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required

Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault detection; remote batch upgrades of up to 2,000 devices each hour

Link monitoring: IEEE 802.1ag-based Ethernet OAM implements End-to-End (E2E) link detection and network isolation
Energy wise: SOC chips integrate PON, voice, gateway, and LSW modules, with up to 25% power savings

Specification

Specifications HG8010H HG8040H HG8110H HG8240H HG8242H HG8045Q
Dimensions
(H x W x D)
90 mm x 82 mm x 27 mm 176 mm x 138.5 mm x 28 mm 134 mm x 115 mm x 27 mm 176 mm x 138.5 mm x 28 mm 220 mm x 160 mm x 32 mm 230 mm x 190 mm x 30 mm
Network-side Ports GPON GPON GPON GPON GPON GPON
User-side Ports 1 GE 4 GE 1 GE + 1 POTS 4 GE + 2 POTS 4 GE + 2 POTS + 1 CATV 4 GE + 1 USB + 2.4G and 5G Wi-Fi
Specifications HG8245H HG8245Q HG8247H HN8055Q HN8245Q
Dimensions
(H x W x D)
176 mm x 138.5 mm x 28 mm 285 mm x 174 mm x 70 mm 220 mm x 160 mm x 32 mm 238 mm x 190 mm x 26 mm 238 mm x 190 mm x 26 mm
Network-side Ports GPON GPON GPON XG-PON XG-PON
User-side Ports 4 GE + 2 POTS + 1 USB + Wi-Fi 4 GE + 2 POTS + 2 USB + 2.4G and 5G Wi-Fi 4 GE + 2 POTS + 1 USB + Wi-Fi + 1 CATV 4 GE + 1 x 10 GE + 2.4G and 5G Wi-Fi + 2 USB 4 GE + 2 POTS + 2.4G and 5G Wi-Fi + 2 USB

Equipment list for the sample solution

Contact us:Tel: 1-866-318-6636 (US/CANADA) Email: [email protected]

No. Part Number Model Description Qty.
1 NMS_iManager U2000-B V200R016_Site1
S4026487 NSDP0PWARE31 Linux Single Server System Software (1*OS,1*DB,1*SetSuse),for Virtual Machine 1
88031UXF NDSS0SMALL03 Small platform Software(Linux Server & Windows Client)(0~500NEs) 1
88034ALN NSDSANMFUC02 Access NE Management Function Basic Component 1
82600496 NDSS000PON01 Per PON Terminal Resource License 6
31189519 NSDIR16DOC10 iManager U2000 Product Documentation 1
2 SmartAX MA5800-X7 V100R017_Site1
02350SJW H90Z1BPMB IEC Service Shelf, 6 fan 1
03022XTN H901MPLA Main Processing Board MPLA 2
02311FGC H901GPSF04 16-port GPON OLT Interface Board(including Class C+ SFP Optical Module) 4
34060494 OMXD30001 Optical transceiver,SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km 1
03022RVX H901PILA Connect Power Board 2
14130222 SS-OP-D-LC-M-10 Patch cord-LC/PC-LC/PC-Multimode-A1b-2mm-10m-PVC-Orange 2
14130147 SS-OP-D-SC-S-20 Patch cord-SC/PC-SC/PC-Single mode-G.652D-3mm-20m-PVC-Yellow 64
04150489 C0DF1D800 Power Cable,1.8m,10mm^2,2*T10^2W,H07Z-K-10^2B+H07Z-K-10^2BL,2*OT10-6,LSZH 2
04150047 CPOWCAB02 Power Cable,0.85m,16mm^2,Yellow&Green,OT16-6,H07Z-K-16^2Y&G,OT16-6,LSZH 1
21138385 H80XBP0YWB01 Air Deflector Panel for Service Board Slot (Shielded) 3
21138396 H80XBPGPIO01 Blank Panel for GPIO Slot (Shielded) 1
21041127 H80B000DFK02 Cabling Channel 1
88032TUE H80S000ONT09 ONT Access License, Based on Per ONT 4600
88032TUF H80S00GPON09 GPON Port License,Based on per GPON Port 64
88033PVT H90MPLA017 MPLA V100R017 System Software Package 2
3 First split 1-4 V100R005_Site1
02114364 FB3M000BCI03 Intelligent optical distribution cabinet-Indoor floor installation-2200*900*300mm-NC Purple grey-Steel sheet-Inside 19" installation-iFR306G-46U-CH 1
02310XVD FB3MOIST1000 fiber intergrated splicing and termination service processing board-24 Cores-SC/UPC-iFTM3107-24-SU-iready 16
02310XPQ FB3KOIST1B02 Integrated splicing and termination unit-144 cores-SC/UPC-Bundle cable-3U*482*269mm-NC purple grey-Steel sheet-Both 19" and 21" installation-Rotatable-iReady 1
02350JPY FB3KSLTSRK07 Rack-mounted splitter Cabinet-1U*482*269mm-NC purple grey-Sheet Metal-For 1:4 SC splitting 8
45200093 OSPL33100 Bare optical splitter-1:4-even-SC/UPC-40*4*4mm-SPL9103-PLC-with Pigtail-G.657A-0.9mm-1.5m-with Fan-Out 64
21240611 N0FOU2400 Optical fiber open peeling unit-Fix 10 pcs optical cable-6U*480*62.5mm-Purple grey-Steel sheet-19" installation-GPX147-OEU2304-10 1
14130634 FSSS00303 Patch cord-SC/UPC-SC/UPC-Single mode-G.657A2-2mm-3m-LSZH-Yellow 288
21101360 E00BFPS00 Non-Metal part-DKBA0.480.1775_HW01-Section φ3.5mm-0.8mm-Circular Nude Fiber 68
28040045 E000HST02 Heat-Shrinkable Protecting Jacket of Fiber Connector-4mm-50%-55degC-125degC-60mm-Single Core Optical Fiber Splice protection Sleeve 320
4 Second split 1-32_Site1
45200096 OSPL39100 Bare optical splitter-1:32-even-SC/UPC-50*7*4mm-SPL9103-PLC-with Pigtail-G.657A-0.9mm-1.5m-with Fan-Out 175
21030234 FBAC01USUB00 Splitter Unit Box-1U-483*260*44mm-Light Grey(G107)-Sheet Metal-Indoor(19") 175
14300107 EADAPSU00 Optical adapter-SC/UPC-SC/UPC-Blue-Shell:Plastic-Sleeve:Zirconia-Square 5775
21140616 FBSX132SPL00 N:32 SC adapter panel 175
5 ATB(Access Terminal Box)_Site1
14260052 E00ATB100 Indoor access terminal box-1 core-Wall-mounting-SC/APC-115*86*23mm-White-Plastic-ATB3101-1B 4600
6 ONT_HG8245W_with WIFI_Site1
02311RGD ECHOLIFE HS8245W HS8245W GPON Terminal,SC/APC,American Standard Adapter,English Documents 4600
