Huawei AR1200 Enterprise Routers

Huawei AR1200 series enterprise routers are next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP). They build on Huawei’s record of leadership in data communication and networking to provide industry-leading system performance and scalability to meet current and future business needs.

The AR1200 series integrates routing, switching, 3G service, Wireless LAN (WLAN), voice, and security functions. The AR1200 uses an embedded hardware encryption technique and supports a voice-optimized Digital Signal Processor (DSP). The router supports firewall security, call processing, voice mail, and other applications. It supports wired and wireless access modes, including E1/T1, xDSL, xPON, WiFi, 3G, and more. The AR1220V, AR1220W and AR1220VW models provide Power over Ethernet (PoE) on fixed 100M Ethernet interfaces.

The AR1220 series has been qualified with Microsoft Lync server, and can be seamlessly integrated into Microsoft unified communications solutions.

AR1200 Models

Model

Description

Huawei AR1220 Access Router

AR1220

WAN speed with services(IMIX): 200Mbps
Fixed port: 8xFE, 2xGE
Slot: 2xSIC
Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220C
AR1220C
WAN speed with services(IMIX): 200 Mbit/s
Fixed port: 8 x GE, 4 x GE + 1 x GE SFP
Slot: 2 x SIC
Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm
AR1220E
AR1220E
WAN speed with services (IMIX): 400 Mbit/s
Fixed ports: 8 x GE, 2 x GE Combo
Slots: 2 x SIC
Dimensions (H x W x D): 1.8 in. x 15.4 in. x 8.7 in. (44.5 mm x 390 mm x 220 mm)

Huawei AR1220F Access Router

AR1220F

WAN speed with services(IMIX): 400Mbps
Fixed port
8*FE 2*GE(1*Combo)
Slot
2*SIC
Dimensions (H x W x D):44.5mm x 390mm x 220mm

Huawei AR1220V Access Router

AR1220V

WAN speed with services(IMIX): 200Mbps
Fixed port: 8xFE(four FE ports support PoE), 2xGE
PoE: compliance with IEEE 802.3af and 802.3at
DSP: 32 channels supported
Slot: 2xSIC
Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220EV
AR1220EV
WAN speed with services (IMIX): 400 Mbit/s
Fixed ports: 8 x GE (four GE ports support PoE), 2 X GE combo
PoE: Compliance with IEEE 802.3af and 802.3at
DSP: 32 channels supported
Slots: 2 x SIC
Dimensions (H x W x D): 1.8 in. x 15.4 in. x 8.7 in. (44.5 mm x 390 mm x 220 mm)

Huawei AR1220W Access Router

AR1220W

WAN speed with services(IMIX): 200Mbps
Fixed port: 8xFE (four FE ports support PoE), 2xGE
PoE: compliance with IEEE 802.3af and 802.3at
Slot: 2xSIC
WiFi: compliance with 802.11b/g/n
Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

Huawei AR1220VW Access Router

AR1220VW

WAN speed with services(IMIX): 200Mbps
Fixed port: 8xFE (four FE ports support PoE), 2xGE
PoE: compliance with IEEE 802.3af and 802.3at
DSP: 32 channels supported
Slot: 2xSIC
WiFi: compliance with 802.11b/g/n
Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220EVW
AR1220EVW
WAN speed with services (IMIX): 400 Mbit/s
Fixed ports: 8 x GE (four GE ports support PoE), 2 X GE combo
PoE: Compliance with IEEE 802.3af and 802.3at
DSP: 32 channels supported
Slots: 2 x SIC
Wi-Fi: Compliance with 802.11b/g/n
Dimensions (H x W x D): 1.8 in. x 15.4 in. x 8.7 in. (44.5 mm x 390 mm x 220 mm)

Huawei AR1220-D Access Router

AR1220-D

WAN speed with services(IMIX): 200Mbps
Fixed port: 8xFE, 2xGE
Slot: 2xSIC
Embedded DC power supply
Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

The AR1200 supports optional interface cards, including; Ethernet, E1/T1/PRI/VE, synchronous/asynchronous, ADSL2+, G.SHDSL, and VDSL, FXS and FXO, ISDN, EPON and GPON and 3G interface cards. These cards are classified into SIC (Smart Interface Card) cards and WSIC (Double-Width SIC) cards depending on slot type.

Product Specification

Item AR1220 AR1220C AR1220E AR1220V AR1220EV

Hardware

WAN Speed with Services

200 Mbit/s

200 Mbit/s

400 Mbit/s

200 Mbit/s

400 Mbit/s

Firewall Performance (large packet)

900 Mbit/s

1,000 Mbit/s

1,200 Mbit/s



900 Mbit/s

1,200 Mbit/s

Device Switching Capacity

8 Gbit/s

8 Gbit/s

8 Gbit/s



8 Gbit/s

8 Gbit/s

Slot Switching Bandwidth

SIC & WSIC slots  2 Gbit/s

Fixed WAN Ports

2 x GE

4 x GE+ 1 x GE SFP

2 x GE Combo

2 x GE

2 x GE Combo

Fixed LAN Ports

8 x FE

8 x GE

8 x GE

8 x FE

8 x GE

SIC Slots

2

2

2

2

2

WSIC Slots

(default/max)

0/1

0/1

0/1

0/1

0/1

DSP Slots

-

-

-

32 channels supported by default

32 channels supported by default

WiFi

-

-

-

-

-

USB 2.0 Ports

2

2

2

2

2

Mini-USB Ports

1

1

1

1

1

Serial Auxiliary/Console Port

1

1

1

1

1

Memory

512 MB

512 MB

1 GB

512 MB

1 GB

Flash

256 MB

512 MB

512 MB

256 MB

512 MB

Max. Power

60W

25W

60W

60W

60W

PoE Power

-

-

-

External 100W

External 100W

AC Power

100V to 240V

100V to 240V

100V to 240V

100V to 240V

100V to 240V

Frequency

50 Hz/60 Hz

50 Hz/60 Hz

50 /60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

DC power

-

-

-

-

-

Dimensions (height x width x depth)

44.5 mm x 390 mm x 220 mm

44.5 mm x 390 mm x 220 mm

44.5 mm x 390 mm x 220 mm

44.5 mm x 390 mm x 220 mm

44.5 mm x 390 mm x 220 mm

Weight

2.9 KG (without interface cards)

2.9 KG (without interface cards)

2.9 KG (without interface cards)

2.9 KG (without interface cards)

2.9 KG (without interface cards)

Ambient Temperature

0°C to 45°C

0°C to 45°C**

0°C to 45°C

0°C to 45°C

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

Software

Basic Features

DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (Only voice models support voice features)

WLAN (AP)

AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (Only WLAN models support WLAN AP features)

WLAN (AC)

AP management(AC discovery/AP access/AP management), CAPWAP,WLAN user management, WLAN radio management(802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

3G

3G Interface card (WCDMA), 3G USB dongle

LTE

LTE Interface card (FDD LTE: Uplink: 50 Mbit/s   Downlink: 100 Mbit/s), and LTE USB dongle

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMP V1/V2/V3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing

Management and maintenance

Upgrade management, device management, web-based GUI, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, and CLI

**Note: The maximum number of slots includes the number of combined slots. The Ambient temperature of ADSL interface card is 0°C to 40°C.

Item AR1220W AR1220VW AR1220EVW AR1220-D AR1220F

Hardware



WAN Speed with Services

200 Mbit/s

200 Mbit/s

400 Mbit/s

200 Mbit/s

400 Mbit/s

Firewall Performance (large packet)

900 Mbit/s

900 Mbit/s

1,200 Mbit/s

900 Mbit/s

1,200 Mbit/s

Device Switching Capacity

8 Gbit/s

8 Gbit/s

8 Gbit/s

8 Gbit/s

8 Gbit/s

Slot Switching Bandwidth

SIC & WSIC slots  2 Gbit/s



Fixed WAN Ports

2 x GE

2 x GE

2 x GE Combo

2 x GE

2 x GE (1 x Combo)

Fixed LAN Ports

8 x FE

8 x FE

8 x GE

8 x FE

8 x FE

SIC Slots

2

2

2

2

2

WSIC Slots

(default/max)

0/1

0/1

0/1

0/1

0/1

DSP Slots

-

32 channels supported by default

32 channels supported by default

-

-

Wi-Fi

802.11 b/g/n

802.11 b/g/n

802.11 b/g/n

-

-

USB 2.0 Ports

2

2

2

2

2

Mini-USB Ports

1

1

1

1

1

Serial Auxiliary/Console Port

1

1

1

1

1

Memory

512 MB

512 MB

1 GB

512 MB

512 MB

Flash

256 MB

256 MB

512 MB

256 MB

512MB

Max. Power

60W

60W

60W

54W

60W

PoE Power

External 100W

External 100W

External 100W

-

-

AC Power

100V to 240V

100V to 240V

100V to 240V

-

100V to 240V

Frequency

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

-

50 Hz/60 Hz

DC Power

-

-

-

-48V or -60V

-

Dimensions (height x width x depth)

44.5 mm x 390 mm x 220 mm

44.5 mm x 390 mm x 220 mm

44.5 mm x 390 mm x 220 mm

44.5 mm x 390 mm x 220 mm

44.5 mm x 390 mm x 220 mm

Weight

2.9 KG (without interface cards)

2.9 KG (without interface cards)

2.9 KG (without interface cards)

2.9 KG (without interface cards)

2.9 KG (without interface cards)

Ambient Temperature

0°C to 45°C

0°C to 45°C

0°C to 45°C

0°C to 45°C

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

5% to 95% (non-condensing)

Software

Basic Features

DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (Only voice models support voice features)

WLAN (AP)

AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (Only WLAN models support WLAN AP features)

WLAN (AC)

AP management (AC discovery/AP access/AP management),CAPWAP,WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

3G

3G Interface card (WCDMA), 3G USB dongle

LTE

LTE Interface card (FDD LTE: Uplink: 50 Mbit/s   Downlink: 100 Mbit/s), LTE USB dongle

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMP V1/V2/V3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing

Management and Maintenance

Upgrade management, device management, web-based GUI, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, and CLI

**Note: The maximum number of slots includes the number of combined slots.

Deployment Scenarios

WAN Access

AR1200 routers deployed at the edge of enterprise branches provide flexible access to remote network connections. They meet most access requirements, including leased line, Ethernet, xDSL, LTE, 3G service, and WLAN. This flexibility adds compelling value to customers by reducing deployment and maintenance costs. Router models with fixed 100 M Ethernet interfaces support PoE and PoE+, and can provide power for powered devices (PDs), such as IP phones. Each PoE+ interface provides more than 30 W of power to support high-power PDs.

AR routers support LTE which can increase the wireless speed greatly and improve the spectral efficiency. The end-to-end LTE QoS mechanism and the AR routers’ bandwidth monitoring and dynamic adjustment of QOS policy can guarantee high priority services

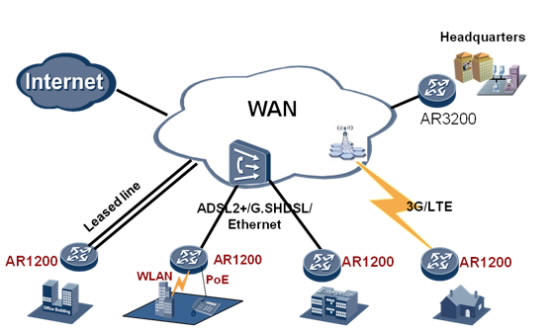

Huawei AR1200 WAN Access

High-Quality Voice Service

The AR1200 can function as an IP PBX or SIP gateway for enterprise networks.

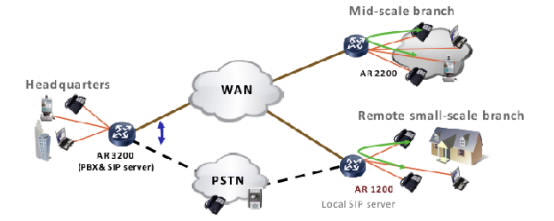

Huawei AR1200 High Quality Voice Service

To enhance the corporate image and improve communication efficiency, all AR routers include a built-in PBX. This feature supports the enterprise main number, Interactive Voice Response (IVR), and bill query functions. The AR1200 can also be located in a branch office to provide intelligent dialing.

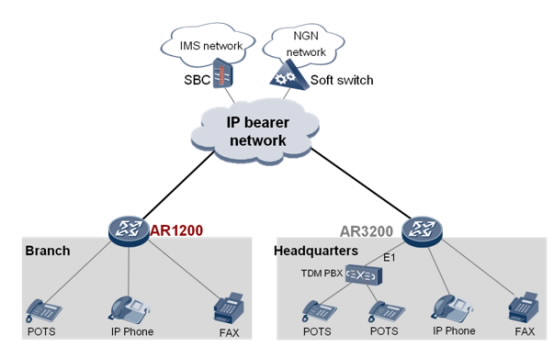

Huawei AR1200 Built-in PBX

The AR1200 integrates voice, fax, and IP services. For enterprise users, the AR1200 serves as the SIP access gateway for a branch office, transforming phone signals into VoIP signals. The AR1200 uplink interfaces connect to the IP Multimedia Subsystem (IMS) or Next Generation Network (NGN) to allow any media, including phones, handsets, and computers, to communicate at any time.

Wireless Access and Management in a Branch Office

The AR1200 complies with 3G/LTE function, 3G standards including CDMA2000 EV-DO, and WCDMA, LTE supporting FDD LTE, meeting the requirements for wireless communication between enterprise branch offices and headquarters. AR1200 supports 3G and LTE interfaces cards. Users can deploy 3G/LTE services on the AR1200 by using a 3G/LTE USB disk, thus, conserving service card slots. In addition, the 3G/LTE data link can be used to back up a wired link to protect the xDSL, FE/GE, and ISDN uplinks. The backup link improves network stability and reduces network construction costs. The Network Quality Analyzer (NQA) monitors 3G/LTE link quality, ensuring the network meets Service Level Agreements (SLAs).

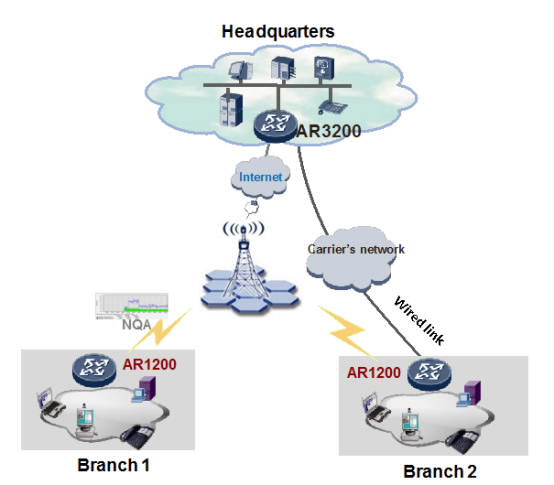

Huawei AR1200 Wireless Access

The AR1200 routers integrated AC (Access Controller, a wireless controller) functionality, which can manage the wireless AP (Access Point, Access Point) in wireless LAN. AR supported rich certification and flexible user access control, which can provide security access guarantee for Wi-Fi users. The rich wireless capabilities integrated in one device, this can realize centralized management of wired and wireless networks; meet the customers’ requirements of building different scale enterprises networks.

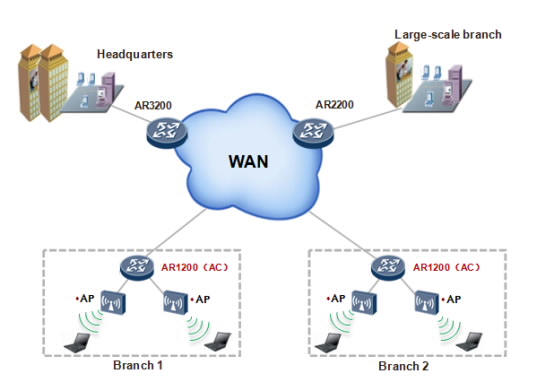

Huawei AR1200 WAN Aggregation

VPN in Branch

The AR1200 provides secure access for communication among enterprise branch offices and between headquarters and branch offices and business partners. Tunnels between the headquarters and branch offices ensure secure data access and transmission. The AR1200 implements fast tunnel deployment and authentication so branch offices and partners can easily, quickly and securely access and share enterprise resources.

Huawei AR1200 VPN in Branch

Ordering Information

Begin by ordering the chassis. Then, select interface modules, special licenses, and desired accessories (SD card or USB disk).

Chassis options

Chassis configuration Description
AR0M0012BA00 AR1220, 2 GE WAN, 8 FE LAN, 2 USB, and 2 SIC
AR0M1200CC AR1220, 2 GE WAN, 8 FE LAN, 2 USB, 2 SIC, and DC -48V
AR1220C AR1220C, 8 GE LAN, 5 GE WAN, 2 USB, and 2 SIC
AR0M012VBA00 AR1220V, 2 GE WAN, 8 FE LAN, 2 USB, 2 SIC, and built-in 32-channel DSP
AR0M012WBA00 AR1220W, 2 GE WAN, 8 FE LAN, 802.11b/g/n AP, 2 USB, and 2 SIC
AR0M12VWBA00 AR1220VW, 2 GE WAN, 8 FE LAN, 802.11b/g/n AP, 2 USB, 2 SIC, and built-in 32-channel DSP
AR1220F AR1220F, 1 GE WAN, 1 GE COMBO, 8 FE LAN, 2 USB, and 2 SIC
AR1220E AR1220E2 GE COMBO, 8 GE LAN, 2 USB, and 2 SIC
AR1220EV AR1220EV, 2 GE COMBO, 8 GE LAN ,2 USB, 2 SIC, built-in 32-channel DSP, and PoE power adapter
AR1220EVW AR1220EVW2 GE COMBO, 8 GE LAN, 802.11b/g/n AP, 2 USB, 2 SIC, built-in 32-channel DSP, and PoE power adapter

Power module options

Power module Description
100W PoE Power Module AR0MPSAP1000

SIC interface module options

SIC interface module Description
AR0MSDME1A00 1-port channelized E1/T1/PRI/VE1 multiflex trunk interface card
AR0MSDE11A00 1-port fractional channelized E1/T1 WAN interface card
AR0MSDME2A00 2-port channelized E1/T1/PRI/VE1 multiflex trunk interface card
AR0MSDE12A00 2-port fractional channelized E1/T1 WAN interface card
AR0MSDSA1A00 1-port sync/async serial port interface card
AR0MSDSA2A00 2-port sync/async serial port interface card
AR0MSEG1CA00 1-port GE combo WAN interface card
AR0MSEF2TA00 2-port FE WAN Interface Card
AR0MSVA4B1A0 4-Port FXS and 1-port FXO voice interface card
AR01SVB4XA 4-port FXO voice interface card
AR0MSLA1XA00 1-port ADSL2+ ANNEX A/M WAN interface module, supports wetting current (only for Vodafone)
AR0MSLA1XA01 1-port ADSL2+ ANNEX A/M WAN interface module
AR0MSLB1XA01 1-port ADSL2+ ANNEX B/J WAN interface module
AR01SLV1XA 1-port VDSL2 over POTS WAN interface module
AR0MSLS1XA00 1-Port 4 Pair G.SHDSL WAN Interface Module
AR0MSDS1XA00 1-port ISDN S/T WAN interface card
AR0MSVS2XA00 2-port ISDN S/T voice interface module
AR01SDGW1A 3G HSPA+7 interface module
AR0MSOPP2A00 1-Port GPON/EPON Dual-mode interface card
AR-4ES2G-S 4-port 1,000 BASE-RJ45 L2 Ethernet interface card (SIC)
AR-1VE1-S 1-port VE1 interface card
AR-1LTE-L-S WCDMA LTE interface card

WSIC interface module options

WSIC interface module Description
AR01WAE14A 4-port E1 inverse multiplexing for ATM interface card
AR01WDFE4A 4-port fractional E1 WAN interface card
AR01WDFE8A 8-port fractional E1 WAN interface card
AR01WDCE8A 8-port channelized E1/PRI multiflex trunk interface card
AR01WEG4SA 4-port 1,000 BASE-SFP-L3 Ethernet WAN interface card
AR01WEG4SB 4-port 1,000 BASE-SFP-L2 Ethernet interface card
AR01WEG4TA 4-port 1,000 BASE-RJ45-L3 Ethernet WAN interface card
AR0MWDAS8A01 8-port async serial port interface card
AR0MWMF9TT00 8-port 10/100 BASE (RJ45) and 1-port 10/100/1,000 BASE (RJ45)-L3 Ethernet switch interface card
AR01WVADXA 16-port FXS voice interface card
AR-1E3T3M-W 1-port channelized/unchannelized E3/T3 WAN interface card
AR-9ES2-W 8-port 100M-RJ45 and 1-port 1,000M-RJ45 L2 Ethernet interface card
AR-8SA-W 8-port sync/async serial WAN interface card
AR-4GECS-W 4-port GE COMBO WAN interface card (support syncE)
AR01WSX220B Industrial computer, Celeron 847E, DDR3 4G, 2.5 in., 1 TB HDD, CFAST 4G, and NULL

License options

License Description
LAR0DATAE02 AR1200 Value-Added Data Package
LAR0AC02 AR1200 AC Express License
LAR0VOICEE02 AR1200 Value-Added Voice Package
LAR0CMBEST01 AR CM & BEST License (5 telephones)
LAR0CMBEST02 AR CM & BEST License (25 telephones)
LAR0CMBEST03 AR CM & BEST License (100 telephones)
LAR0CT01 AR CT (Call Trunk) License (5 sessions)
LAR0CT02 AR CT (Call Trunk) License (25 sessions)
LAR0CT03 AR CT (Call Trunk) License (100 sessions)
LAR0IVR01 AR IVR (Interactive Voice Response) License (1 session)
LAR0IVR02 AR IVR (Interactive Voice Response) License (12 sessions)
LAR0SECE02 AR1200 Value-Added Security Package
LAR0DSVPN02 AR1200 DSVPN (Dynamic Smart VPN) Function
LAR0IPS02 AR1200 IPS Service Subscription (1-year)
LAR0URLF02 AR1200 URL Filtering Update Service Subscription (1-year)

SD card and USB disk options

SD cards & USB disks  Description
NUSBDSK01 Storage USB DISK, 4 GB, USB 2.0, and no documentation


Huawei AR1200 Access Router

Huawei AR1200 Routers

  • Multi-core CPU, distributed service processing and non-blocking switching structure
  • Various voice functions supported by built-in PBX, SIP server and SIP access gateway (AR1220W, AR1220VW)
  • PoE support(1200V, 1200W, 1200VW)
  • WLAN: IEEE 802.11 b/g/n(1220W, AR1220VW)
  • Forwarding capacity: 450Kpps
