H83DVCPE

H83DVCPE is a 64-channel VDSL2 over POTS service board that provides the VDSL2 over POTS access service. It has an embedded splitter with 600-ohm impedance and supports vectoring.

Functions and Specifications

For details, see Differences Between VDSL2 Service Boards.

Power Consumption

For details, see Board Power Consumption.

Working Principles

Figure 1 shows the working principles of the H83DVCPE board.

Figure 1 Working principles of the H83DVCPE board

The basic working principles of the H83DVCPE board are as follows:

  • The chipset module implements functions, such as amplification, filtering, A/D and D/A conversion, coding/decoding, and encapsulation/decapsulation for signals.

  • The protection module protects and isolates the board from lightning strikes.

  • The control module decodes signals and monitors signals.

  • The splitter module separates POTS signals from combined signals (VDSL2 signals and POTS signals).

  • The power module supplies power to other function modules of the board.

  • The clock module provides working clock for other function modules of the board.

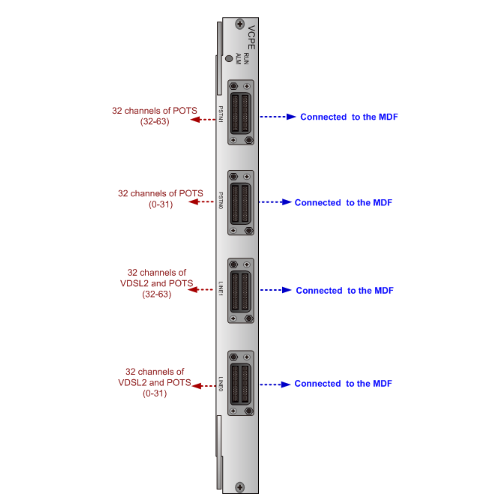

Front Panel Port



Indicator

Silk Screen

Name

Color

Status

Meaning

RUN ALM

Operating status indicator

Green

On

The board operates normally.

Red

On

The board is faulty.

Pin Assignments

The pin assignments of LINE ports are the same as those of PSTN ports. Table 1 and Table 2 describe pin assignments of the PSTN0 and PSTN1 ports on the front panel of the H83DVCPE board, respectively.

Table 1 Pin assignments of the PSTN0 port

Pin

Signal

Pin

Signal

Port

Pin

Signal

Pin

Signal

1

7

17

15



33

23

49

31

2

18

34

50

3

6

19

14

35

22

51

30

4

20

36

52

5

5

21

13

37

21

53

29

6

22

38

54

7

4

23

12

39

20

55

28

8

24

40

56

9

3

25

11

41

19

57

27

10

26

42

58

11

2

27

10

43

18

59

26

12

28

44

60

13

1

29

9

45

17

61

25

14

30

46

62

15

0

31

8

47

16

63

24

16

32

48

64

Pin

Signal

Pin

Signal

Port

Pin

Signal

Pin

Signal

Table 2 Pin assignments of the PSTN1 port

Pin

Signal

Pin

Signal

Port

Pin

Signal

Pin

Signal

1

39

17

47



33

55

49

63

2

18

34

50

3

38

19

46

35

54

51

62

4

20

36

52

5

37

21

45

37

53

53

61

6

22

38

54

7

36

23

44

39

52

55

60

8

24

40

56

9

35

25

43

41

51

57

59

10

26

42

58

11

34

27

42

43

50

59

58

12

28

44

60

13

33

29

41

45

49

61

57

14

30

46

62

15

32

31

40

47

48

63

56

16

32

48

64
