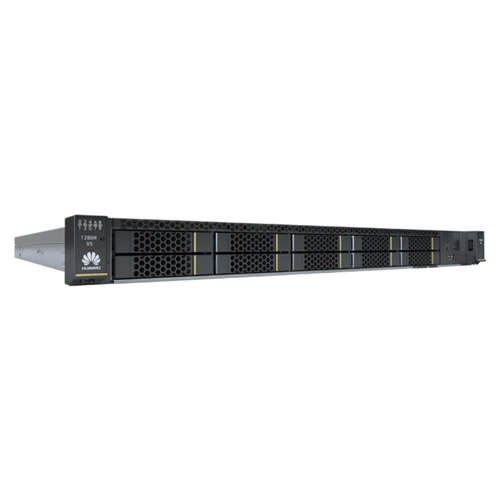

1288H V5

Part #: 02311XCX

Module #: H12H-05-B4AFF

Price: US$ 0

Availability: In Stock

* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

2*CPU(Bronze 3100/Silver 4100/Gold 5100/Gold 6100/Platinum 8100),24*DIMMs,4*3.5" HDDs or 10*2.5" HDDs

Form Factor1U, 2-socket rack server
Processors1 or 2 full-series Intel® Xeon® Scalable Processors of up to 205W
Memory24 DDR4 DIMM slots, up to 2,666 MT/s
Internal StorageThree types of hard drive configurations supported:
  • 10 x 2.5-inch hard drives (6 to 8 NVMe SSDs and 2 to 4 SAS/SATA HDDs, total number of drives ≤ 10) , which can be:

0 to 6 NVMe SSDs + 0 to 4 SAS/SATA HDDs
0 to 7 NVMe SSDs + 0 to 3 SAS/SATA HDDs
0 to 8 NVMe SSDs + 0 to 2 SAS/SATA HDDs
  • 8 x 2.5-inch SAS/SATA HDDs or SSDs (the NVMe model supports 4 NVMe SSDs)

  • 4 x 3.5-inch SAS/SATA HDDs or SSDs

Flash storage:
  • 2 M.2 SSDs

RAID SupportRAID 0, 1, 10, 5, 50, 6, or 60
Configured with a supercapacitor for power-off protection for the cache (optional)
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network PortsLOM NIC: 2 x 10 GE and 2 GE ports
FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) ports
PCIe ExpansionUp to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Fan Modules7 hot-swappable counter-rotating fan modules with optional N+1 redundancy
Power Supply Units2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):
  • 550W AC Platinum PSUs

  • 900W AC Platinum/Titanium PSUs

  • 1,500W AC Platinum PSUs

  • 1,500W 380V HVDC PSUs

  • 1,200W -48V to -60V DC PSUs

ManagementBased on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management.
Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management.
Operating Temperature5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
CertificationsCE, UL, FCC, CCC, and RoHS
Installation suiteL-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)Chassis with 3.5-inch hard drives: 43 mm x 436 mm x 748 mm (1.70 in. x 17.17 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 43 mm x 436 mm x 708 mm (1.70 in. x 17.17 in. x 27.87 in.)
Special NoticesThe Titanium PSU is planned for release in Q1, 2019.
