H83DVCPD

Part #:

Module #: H83DVCPD

Price: US$ 0

Availability: In Stock

* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

H83DVCPD

H83DVCPD is a 64-channel VDSL2 service board that provides the VDSL2 access service. It does not have an embedded splitter and supports vectoring.

Functions and Specifications

For details, see Differences Between VDSL2 Service Boards.

Power Consumption

For details, see Board Power Consumption.

Working Principles

Figure 1 shows the working principles of the H83DVCPD board.

Figure 1 Working principles of the H83DVCPD board

The basic working principles of the H83DVCPD board are as follows:

  • The chipset module implements functions, such as amplification, filtering, A/D and D/A conversion, coding/decoding, and encapsulation/decapsulation for signals.

  • The protection module protects and isolates the board from lightning strikes.

  • The control module decodes signals and monitors signals.

  • The power module supplies power to other function modules of the board.

  • The clock module provides working clock for other function modules of the board.

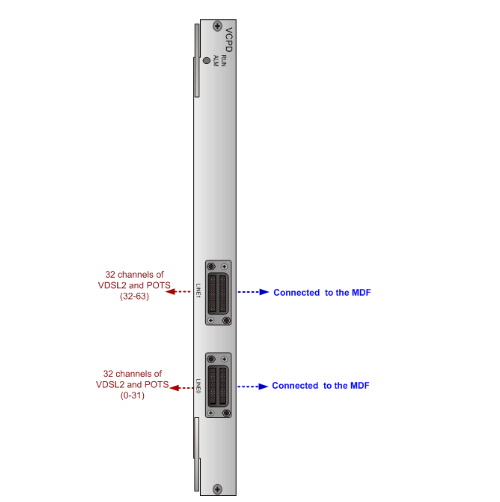

Front Panel Port



Indicator

Silk Screen

Name

Color

Status

Meaning

RUN ALM

Operating status indicator

Green

On

The board operates normally.

Red

On

The board is faulty.

Pin Assignments

Table 1 and Table 2 describe pin assignments of the LINE0 and LINE1 ports on the front panel of the H83DVCPD board, respectively.

Table 1 Pin assignments of the LINE0 port

Pin

Signal

Pin

Signal

Port

Pin

Signal

Pin

Signal

1

7

17

15



33

23

49

31

2

18

34

50

3

6

19

14

35

22

51

30

4

20

36

52

5

5

21

13

37

21

53

29

6

22

38

54

7

4

23

12

39

20

55

28

8

24

40

56

9

3

25

11

41

19

57

27

10

26

42

58

11

2

27

10

43

18

59

26

12

28

44

60

13

1

29

9

45

17

61

25

14

30

46

62

15

0

31

8

47

16

63

24

16

32

48

64

Pin

Signal

Pin

Signal

Port

Pin

Signal

Pin

Signal
