H83DSDMM

H83DSDMM is a 48-channel SuperVector service board that provides the SuperVector access service. It does not have an embedded splitter. It supports metallic line testing (MELT).

Power Consumption

For details, see Board Power Consumption.

Working Principles

Figure 1 shows working principles of the H83DSDMM board.

Figure 1 Working principles of the H83DSDMM board

Basic working principles of the H83DSDMM board are as follows:

  • The switch module switches the interface of the backplane to the interface of the chipset module.

  • The chipset module implements functions, such as amplification, filtering, A/D and D/A conversion, coding/decoding, and encapsulation/decapsulation for signals.

  • The protection module protects and isolates the board from lightning strikes.

  • The control module decodes signals and monitors signals.

  • The power module supplies power to other function modules of the board.

  • The clock module provides working clock for other function modules of the board.

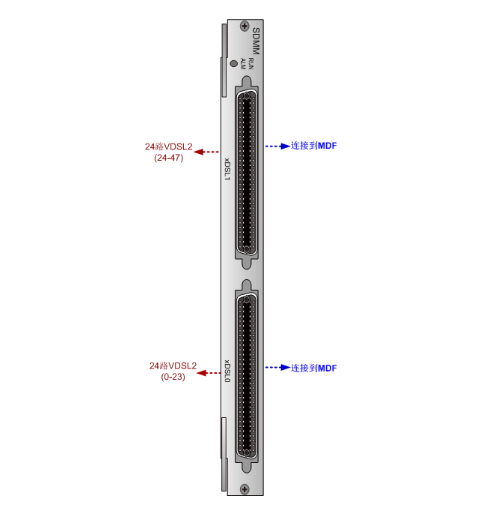

Front Panel Port



Indicator

Silk Screen

Name

Color

Status

Meaning

RUN ALM

Operating status indicator

Green

On

The board operates normally.

Red

On

The board is faulty.

Pin Assignments

Table 1 and Table 2 describe pin assignments of the xDSL ports on the front panel of the H83DSDMM board.

Table 1 Pin assignments of the xDSL0 port

Pin

Signal

Pin

Signal

Port

Pin

Signal

Pin

Signal

64

15

48

7

32

16

16

-

63

47

31

15

62

14

46

6

30

17

14

-

61

45

29

13

60

13

44

5

28

18

12

-

59

43

27

11

58

12

42

4

26

19

10

-

57

41

25

9

56

11

40

3

24

20

8

-

55

39

23

7

54

10

38

2

22

21

6

-

53

37

21

5

52

9

36

1

20

22

4

-

51

35

19

3

50

8

34

0

18

23

2

-

49

33

17

1

Pin

Signal

Pin

Signal

Port

Pin

Signal

Pin

Signal

Table 2 Pin assignments of the xDSL1 port

Pin

Signal

Pin

Signal

Port

Pin

Signal

Pin

Signal

64

39

48

31

32

40

16

-

63

47

31

15

62

38

46

30

30

41

14

-

61

45

29

13

60

37

44

29

28

42

12

-

59

43

27

11

58

36

42

28

26

43

10

-

57

41

25

9

56

35

40

27

24

44

8

-

55

39

23

7

54

34

38

26

22

45

6

-

53

37

21

5

52

33

36

25

20

46

4

-

51

35

19

3

50

32

34

24

18

47

2

-

49

33

17

1
