Desktop Type, 8GE(RJ45),
1.2Gbps throughput(FW+APP)
Default 10 vSys and 100 SSL users
Support Applications awareness, IPS, Anti-Virus, URL filter, DLP, IPSec VPN, SSL VPN and Virtualization features etc.

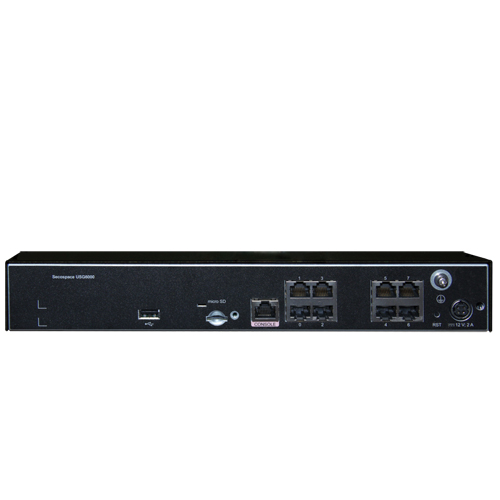

USG6310S | 1. USB Port 2. Micro-SD Card Slot 3. Console Port 4. 8 x GE (RJ45) Ports |
Model | USG6305 | USG6310S | USG6320 |
---|---|---|---|
IPv4 Firewall Throughput1 (1,518/512/64-byte , UDP ) | 0.8 Gbit/s, 0.8 Gbit/s, 0.12 Gbit/s | 1.2 Gbit/s, 1 Gbit/s, 0.12 Gbit/s | 2 Gbit/s, 2 Gbit/s, 0.4 Gbit/s |
IPv6 Firewall Throughput1 (1,518/512/84-byte , UDP) | 0.8 Gbit/s, 0.8 Gbit/s, 0.15 Gbit/s | 1.2 Gbit/s, 1 Gbit/s, 0.15 Gbit/s | 2 Gbit/s, 2 Gbit/s, 0.4 Gbit/s |
Firewall Throughput (packets per second) | 0.18 Mpps | 0.18 Mpps | 0.6 Mpps |
Firewall Latency (64-byte, UDP) | 100 µs | 100 µs | 35 µs |
FW + SA* Throughput2 | 300 Mbit/s | 400 Mbit/s | 1.2 Gbit/s |
FW + SA + IPS Throughput2 | 150 Mbit/s | 200 Mbit/s | 700 Mbit/s |
FW + SA + Antivirus Throughput2 | 100 Mbit/s | 150 Mbit/s | 700 Mbit/s |
FW + SA + IPS + Antivirus + URL Throughput2 | 100 Mbit/s | 150 Mbit/s | 500 Mbit/s |
FW+SA+IPS+Antivirus Throughput (real world)3 | 80 Mbit/s | 100 Mbit/s | 400 Mbit/s |
Concurrent Sessions (HTTP1.1)1 | 200,000 | 250,000 | 500,000 |
New Sessions/Second (HTTP1.1)1 | 4,000 | 6,000 | 20,000 |
IPsec VPN Throughput1 (AES-128 + SHA1, 1,420-byte) | 300 Mbit/s | 400 Mbit/s | 600 Mbit/s |
Maximum IPsec VPN Tunnels (GW to GW) | 500 | 1,000 | 2,000 |
Maximum IPsec VPN Tunnels (client to GW) | 500 | 1,000 | 2,000 |
SSL Inspection Throughput4 | 12 Mbit/s | 15 Mbit/s | 15 Mbit/s |
SSL VPN Throughput5 | 20 Mbit/s | 25 Mbit/s | 40 Mbit/s |
Concurrent SSL VPN Users (default/maximum) | 100/100 | 100/100 | 100/200 |
Security Policies (maximum) | 1,000 | 1,000 | 3,000 |
Virtual Firewalls (default/maximum) | 10/10 | 10/10 | 10/20 |
High Availability Configurations | NA | Active/Active, Active/ Standby | |
URL Filtering: Categories | More than 130 | ||
URL Filtering: URLs | Can access a database of over 120 million URLs in the cloud | ||
Automated Threat Feed and IPS Signature Updates | Yes, an industry-leading security center from Huawei (http://sec.huawei.com/sec/web/index.do) | ||
Third-Party and Open-Source Ecosystem6 | Open APIs for integration with third-party products through RESTCONF and NETCONF interfaces Other third-party management software based on SNMP, SSH, and syslog Collaboration with third-party tools, such as FireMon | ||
Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and LogCenter | ||
VLANs (maximum) | 4,094 | ||
Virtual Interfaces (maximum) | 1,024 |
1. Performance is tested under ideal conditions based on RFC 2544 and RFC 3511. The actual result may vary with deployment environments
2. Antivirus, IPS, and SA performances are measured using 100 KB of HTTP files
3. Throughput is measured with the Enterprise Traffic Model
4. SSL inspection throughput is measured with IPS-enabled and HTTPS traffic using TLS v1.2 with AES256-SHA
5. SSL VPN throughput is measured using TLS v1.2 with AES128-SHA
6. USG6000 V100R001 supports only the RESTCONF interface and cannot interwork with third-party tools
*SA indicates Service Awareness
Hardware Specifications
Model | USG6305 | USG6310S | USG6320 |
---|---|---|---|
Dimensions (H x W x D) | 44 mm x 300 mm x 220 mm | 44 mm x 300 mm x 220 mm | 44.5 mm x 300 mm x 220 mm |
Form Factor/Height | Desktop | Desktop | Desktop |
Fixed Interfaces | 4 x GE (RJ45) | 8 x GE (RJ45) | 8 x GE (RJ45) |
USB 2.0 Port | Supported | Supported | Supported |
4G LTE | The USB port houses a 4G LTE data card | The USB port houses a 4G LTE data card | The USB port houses a 4G LTE data card |
MTBF | 14.08 years | 14.08 years | 19.06 years |
Weight (full configuration) | 1.55 kg | 1.55 kg | 1.58 kg |
Power Consumption (average/maximum) | 7.5W/11.8W | 8.8W/13.1W | 23.2W/28.5W |
Heat Dissipation | 40 BTU/h | 45 BTU/h | 97 BTU/h |
Noise | - | 48 dBA | |
Power Supplies | External Power Adapter, 24W | External Power Adapter, 36W | |
AC Power Supply | 100V to 240V, 50 Hz/60 Hz | ||
Operating Environment (temperature/humidity) | Temperature: 0°C to 45°C Humidity: 5% to 95%, non-condensing | ||
Non-operating Environment | Temperature: -40°C to 70°C Humidity: 5% to 95%, non-condensing | ||
Operating Altitude (maximum) | 5,000 meters | ||
Non-operating Altitude (maximum) | 5,000 meters |
1: The following bands are supported: FDD BAND 1, 2, 3, 4, 5, 7, 8, and 20
