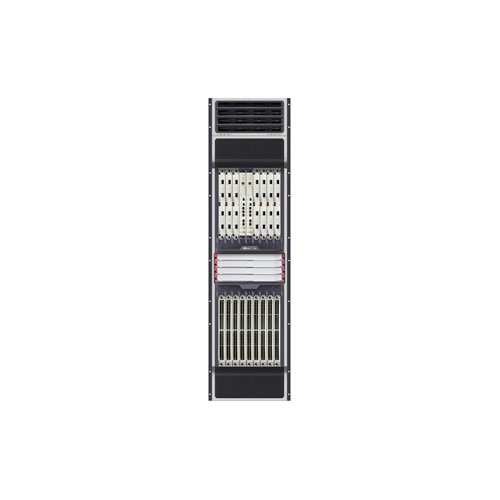

Universal Service Router
1. 16 LPU slots, 40U, 50.32 Tbps switching capacity, support 1T board
2. 2*MPU(1:1), 4*SFU(3+1)
3. Support 100/40/10GE, GE/FE, STM-x, POS, ATM, E1 interface
4. Support a maximum of 128*100GE ports, or 96*40GE ports, or 768*10GE ports
5. Support L2, L3, Multicast, VPN, MPLS TE, QoS, GRE, IPSec, NetStream, NAT, etc
Parameters | NE40E-X16A | NE40E-X16 | NE40E-X8A | NE40E-X8 | NE40E-X3A | NE40E-X3 |
Switching Capacity | 81.92 Tbit/s | 12.58 Tbit/s | 25.16 Tbit/s | 7.08 Tbit/s | 2.76 Tbit/s | 1.08 Tbit/s |
Forwarding Performance | 14,464 Mpps | 5,760 Mpps | 5,760 Mpps | 2,880 Mpps | 900 Mpps | 540 Mpps |
MPU Slots | 2 | 2 | 2 | 2 | 2 | 2 |
SFU Slots | 4 | 4 | 2 | 1 | 0 | 0 |
LPU Slots | 16 | 16 | 8 | 8 | 3 | 3 |
Dimensions (H x W x D) | 1,778 mm x 442 mm x 650 mm (40U) | 1,420 mm x 442 mm x 650 mm (32U) | 930 mm x 442 mm x 650 mm (21U) | 620 mm x 442 mm x 650 mm (14U) | 264 mm x 442 mm x 664 mm (6U) | 175 mm x 442 mm x 650 mm (DC 4U) 220 mm x 442 mm x 650 mm (AC 5U) |
Maximum Power Consumption | 9,040W (480G) | 4,610W (120G) 7,970W (240G) | 4,770W (480G) | 2,340W (120G) 4,100W (240G) | 600W (200G) | 1,070W (AC) 920W (DC) |
Weight in Full Configuration | 356 kg (480G) | 246 kg (120G) 279 kg (240G) | 186 kg (480G) | 119 kg (120G) 136 kg (240G) | 75 kg (200G) | 42 kg (DC) 52 kg (AC) |
