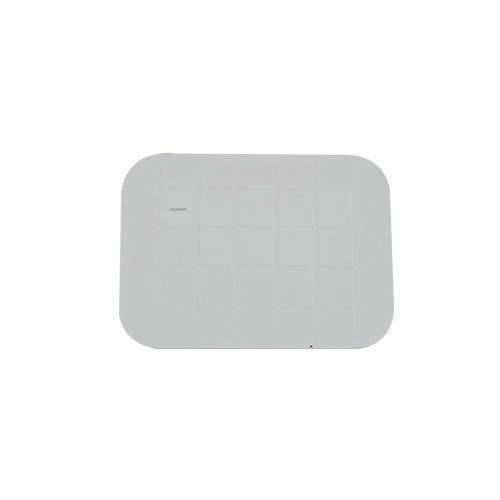

Huawei AP4050DN-HD is a wireless access point that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP4050DN-HD provides a rate of up to 1.267 Gbit/s. It uses built-in high-density smart antennas and is applicable to indoor high-density stadiums.
Specifications | AP4050DN-HD |
Dimensions (H x W x D) | 65 mm x 240 mm x 334 mm |
Power Input | DC: 12V ±10% PoE power: In compliance with IEEE 802.3af/at |
Maximum Power Consumption | 11.8W (in 802.3af PoE or DC mode) 13.9W (in 802.3at PoE mode, excluding the output power of the PoE OUT port) Note: The actual maximum power consumption depends on local laws and regulations |
Operating Temperature | –10°C to +50°C |
Antenna Type | Built-in high-density directional antennas (beamwidth: 30 degrees) |
Maximum Number of Users | ≤ 512 |
Maximum Transmit Power | 2.4 GHz: 22 dBm (combined power) 5 GHz: 22 dBm (combined power) Note: The actual transmit power depends on local laws and regulations. |
MIMO: Spatial Streams | 2 x 2:2 MU/SU-MIMO |
Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
Maximum Rate | 1.267 Gbit/s |
1. This content is applicable only to regions outside mainland China. Huawei reserves the right to interpret this content.
