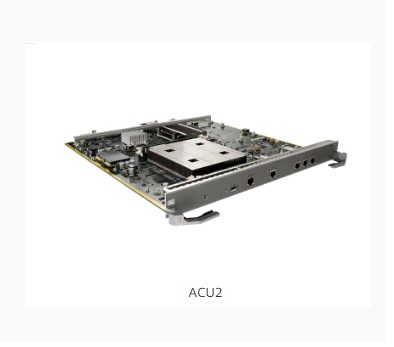

Huawei’s Access Controller Unit 2 (ACU2) lets you build a WLAN fast by adding ACU2s to Huawei S7700/S9700/S12700 wired network switches, used in large enterprise or campus networks.
The reliable ACU2 delivers large-capacity and high-density access services with up to 40 Gbit/s line forwarding. Each ACU2 controls up to 2,048 APs and 32K STAs. Up to 11 ACU2s can be added to a switch for seamless expansion. When connected to an aggregation switch, the ACU2 can manage both wired and wireless access services in a centralized manner.
Step into the future of wireless communications with the ACU2 Wireless Access Controller Unit.
Specifications | ACU2 |
Ports | 1 x console + 1 x GE port |
PoE | NA |
Power Supply | Chassis power supply |
Forwarding Capability | 40 Gbit/s |
Maximum Number of Managed APs | 2K |
Maximum Number of Access Users | 32K |
AP-AC Networking | Layer 2 or Layer 3 networking |
Forwarding Modes | Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding) |
AC Active/Standby Modes | 1+1 HSB or N+1 backup |
Radio Protocols | 802.11a/b/g/n/ac/ac wave 2 |
