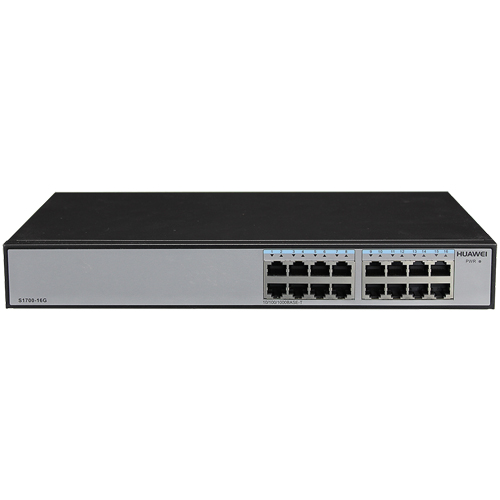

Unmanaged,16 Ethernet 10/100/1000 ports, No Layer 2/3 features,24M pps,32G bps
Product Model | S1700-24-AC | S1700-52R-2T2P-AC | S1700-16G S1724G-AC S1700-24GR | S1700-28GR-4X S1700-52GR-4X |
Switching Capacity | 4.8Gbps | 17.6Gbps | S1700-16G: 32Gbps S1724G-AC: 48Gbps S1700-24GR: 48Gbps | S1700-28GR-4X: 168Gbps S1700-52GR-4X: 336Gbps |
Forwarding Performance | 3.6Mpps | 13.2Mpps | S1700-16G: 24Mpps S1724G-AC: 36Mpps S1700-24GR: 36Mpps | S1700-28GR-4X: 96Mpps S1700-52GR-4X: 132Mpps |
Port Type | 100M Uplink and Downlink | 100M access, 1000M Uplink | GE Uplink and Downlink | 1000M access, 10GE Uplink |
Fixed Ports | 24 x 10/100Base-T ports Note: These ports can be used for both upstream and downstream transmission. | Downlink: 48 x 10/100Base-T ports Uplink: 2 x 10/100/1000Base-T ports and 2 x 1000Base-X optical ports | S1700-16G: 16 x 10/100/1000Base-T ports S1724G-AC: 24 x 10/100/1000Base-T ports S1700-24GR: 24 x 10/100/1000Base-T ports Note: These ports can be used for both upstream and downstream transmission. Note: These ports can be used for both upstream and downstream transmission. | S1700-28GR-4X Downlink: 24 x 10/100/1000Base-T ports Uplink: 4 x 10GBase-X optical ports S1700-52GR-4X Downlink: 48 x 10/100/1000Base-T ports Uplink: 4 x 10GBase-X optical ports |
1. This content is applicable only to regions outside mainland China. Huawei reserves the right to interpret this content.
