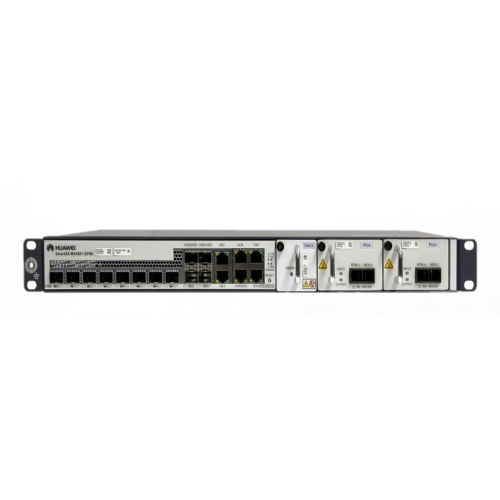

SmartAX EA5801

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

EA5801-GP08 8*GPON, EA5801-CG04 4*GPON





ModelSmartAX EA5801-GP08SmartAX EA5801-CG04
Dimensions (H x W x D)
  • Without mounting ears: 43.6 mm x 442 mm x 222.3 mm

  • With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm

  • With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm

  • Without mounting ears: 43.6 mm x 442 mm x 222.3 mm

  • With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm

  • With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm

Power Supply Mode
  • DC power supply (dual for backup)

  • AC power supply (dual for backup)

  • DC power supply (dual for backup)

  • AC power supply (dual for backup)

Working Voltage Range
  • DC power supply: -38.4V to -72V

  • AC power supply: 100V to 240V

  • DC power supply: -38.4V to -72V

  • AC power supply: 100V to 240V

Rated Voltage
  • DC power supply: -48V/-60V

  • AC power supply: 110V/220V

  • DC power supply: -48V/-60V

  • AC power supply: 110V/220V

Maximum Input Current
  • DC power supply: 6A

  • AC power supply: 2.5A

  • DC power supply: 6A

  • AC power supply: 2.5A

Ambient Temperature-40°C to +65°C* (normal operation), Minimum startup temperature: -25°C
*+65°C indicates the temperature of the air intake vent of the service subrack
-40°C to +65°C* (normal operation), Minimum startup temperature: -25°C
*+65°C indicates the temperature of the air intake vent of the service subrack
Ambient Humidity5% RH to 95% RH5% RH to 95% RH
Atmospheric Pressure70 kPa to 106 kPa70 kPa to 106 kPa
Altitude< 4,000m**
**The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
< 4,000m**
**The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
MAC Addresses32,76832,768
ARP Table16,38416,384
GE Upstream Ports2 optical/electrical combo ports2 optical/electrical combo ports
10 GE/GE Upstream Ports22
Number of Service Ports8 x GPON4 x G-PON and GPON combo
View Full SpecsSmartAX EA5801-GP08SmartAX EA5801-GP04
