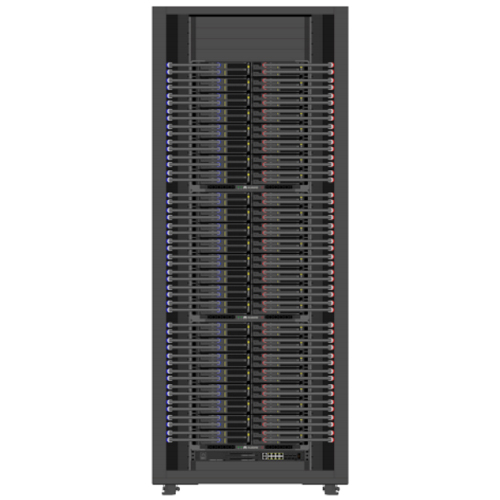

Supports 3 pcs Chassis at most, 16 pcs CH121L V5 Liquid Cooling Blade Servers in one Chassis at most.
| Model | CH121L V5 |
| Form Factor | 2-socket liquid-cooled blade server in a half-width slot |
| Processors | 1 or 2 Intel® Xeon® Scalable Processors, up to 205W |
| Memory | 24 DDR4 DIMM slots, with memory speeds of up to 2,666 MT/s, and up to 3 TB of memory capacity |
| Internal Storage | 2 x 2.5-inch SSDs, or SAS/SATA hard drives; NVMe SSD disks supported Or up to 4 M.2 SSDs (SATA interface), individually hot-swappable |
| RAID Support | The two 2.5-inch SSDs or SAS/SATA hard drives support RAID 0 and 1. The four M.2 SSDs support RAID 0, 1, 10, 5, and 6. |
| PCIe Expansion | 2 mezzanine cards (x16) |
| Operating Systems | Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Citrix XenServer VMware ESX Huawei FusionSphere |
| Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF), compliant with ASHRAE CLASS A3 |
| Dimensions (H x W x D) | 60.46 mm x 215 mm x 525 mm (2.38 in. x 8.46 in. x 20.67 in.) |
