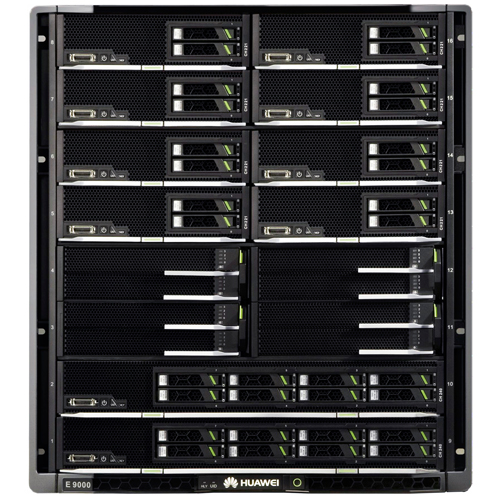

E9000 Chassis

Part #: 02301028

Module #: IT1K20E9000

Price: US$ 2484.00

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.

Chassis: Support CH121 V3/CH140 V3/CH220 V3/CH222 V3/CH225 V3/CH226 V3/CH242 V3 DDR4/CH121 V5/CH242 V5/CH225 V5/CH221 V5 Blade Server, 16 pcs Half-Wide or 8 pcs All-Wide Blade Servers in one Chassis at most

ModelFusionServer E9000
Form Factor12U Blade Server Chassis
Blade16 half-width slots or 8 full-width slots
Supports flexible configurations of full-width and half-width nodes
Switch Modules4 slots for Huawei CX series switch modules provide a midplane switching capability of 32 Tbit/s
CX110 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink
CX111 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink
CX116 GE pass-through module: 32 x GE uplink, 32 x GE downlink
CX210 8G FC switch module: 8 x 8G FC uplink, 16 x 8G FC downlink
CX220 16G FC switch Module: 8 x 16G FC uplink, 16 x 16G FC downlink
CX310 10 GE switch module: 16 x 10 GE uplink, 32 x 10 GE downlink
CX311 10 GE/FCoE converged switch module: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE downlink
CX317 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink
CX318 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink
CX320 10 GE switch module: 8 x 10 GE + 2 x 40 GE uplink, one flexible interface card optional, 32 x 10 GE downlink
CX611 InfiniBand switch module (QDR 40 Gbit/s, FDR 56 Gbit/s): 18 x QDR/FDR uplink, 16 x QDR/FDR downlink
CX710 40 GE switch module: 8 x 40 GE uplink, 16 x 40 GE downlink
CX912 multi-plane switch module; supports FC ports: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE + 16 x 8G FC downlink
CX915 multi-plane switch module: 4 x 10 GE + 12 x GE + 8 x 8G FC uplink, 32 x GE + 16 x 8G FC downlink
CX916 multi-plane switch module: 8 x 10 GE/25 GE + 2 x 40 GE + 8 x 16G FC uplink, one flexible interface card optional, 32 x 10 GE + 16 x 16G FC downlink
PSUAC/DC PSU: Maximum six 3,000W/2,000W AC or six 2,500W DC hot-swappable PSUs in N+N or N+M redundancy mode
Fan ModulesProvides 14 hot-swappable fan modules in N+1 redundancy mode
ManagementUses HMMs in 1+1 redundancy mode, supports standard management interfaces, such as SNMP and IPMI, manages computing and switching devices in a unified manner, and provides comprehensive management functions, such as a GUI, remote KVM, virtual media, SOL, remote control, hardware monitoring, intelligent power supply, and historical power consumption
Provides value-added management features, such as multi-frame cascading management, graphic network configuration, and stateless computing
Power Supply110V/220V AC or –48V DC
Operating
Temperature
5°C to 40°C
DimensionsHeight: 530 mm (20.87 in.)
Width: 442 mm (17.40 in.)
Depth: 840 mm (33.07 in.)
