4*CPU(Gold 5100 /Gold 6100 /Platinum 8100),48*DDR4 Memory slots,4*2.5" HDD interfaces,with 2*10GE LOM NIC

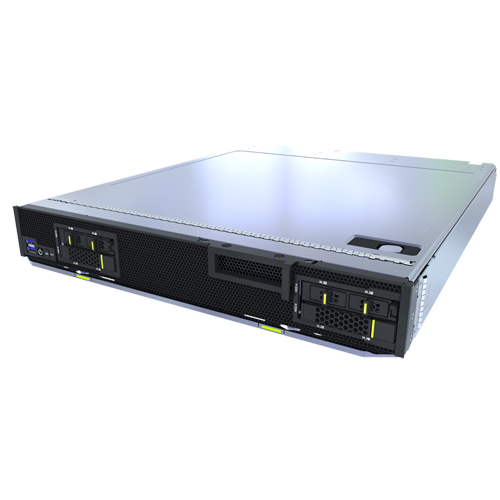

Model | CH242 V5 |
Form Factor | Full-width, single-slot, 4-socket blade server |
Processors | 2 or 4 Intel® Xeon® Scalable Processors of up to 205W |
Memory | 48 x DDR4 DIMM slots, with memory speeds of up to 2,666 MT/s |
Internal Storage | 4 x 2.5-inch SSDs or SAS/SATA HDDs; 4 x NVMe SSDs supported Or up to 8 x M.2 SSDs (SATA interface), individually hot-swappable |
RAID Support | RAID 0, 1, 10, 5, 50, 6, or 60 |
PCIe Expansion | 4 mezzanine cards (x16) 1 HHHL PCIe x16 standard card |
Operating Systems | Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Huawei FusionSphere Citrix XenServer Vmware |
Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF), compliant with ASHRAE CLASS A3 |
Dimensions (H x W x D) | 60.5 mm x 423 mm x 525 mm (2.38 in. x 16.65 in. x 20.67 in.) |
