Components

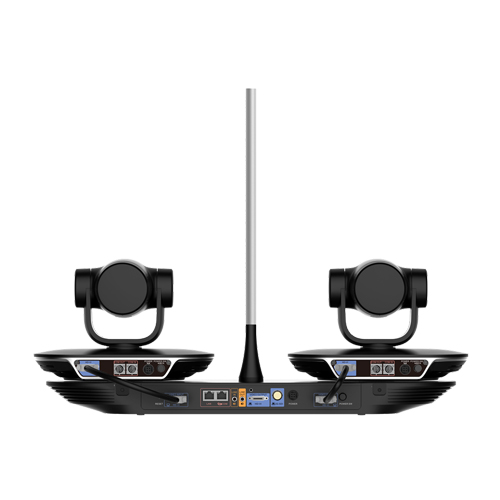

1 x VPT300 (built-in dual-camera system, microphone array), 2 x VPC600 cameras, auxiliary cables, power adapter, and wall-mounted bracket (optional)

VPC600 Camera

Lens: 2.38 megapixels, 1/2.8-inch CMOS imaging chip

Zoom: 12x optical plus 12x digital

Lens aperture (F#): F1.8

Maximum Horizontal/Vertical Field of View: 72°/44.5°

Tracking Mode

Auto Tracking: Automatically track and capture close-up views of each speaker with intelligent transitions between panoramic images and close-ups

Panoramic Tracking: Adjust the panoramic views according to the speakers’ location and the number of people in the room

Manual Tracking: Manually control cameras to capture images

Tracking Distance

Maximum range: 10m

Horizontal Range

140°

Video Input Port

2 x HD-VI

Video Output Port

1 x HD-VI

1 x 3G-SDI (up to 1080p60)

Audio Input Port

1 x 3.5 mm

Audio Output Ports

1 x 3.5 mm

Network Ports

10/100/1,000M Base-T, 1 x RJ45

Other Ports

1 x COM (RJ45)

Power interface
