TE50

Part #: 02350AVP

Module #: TE50-1080P30-P-12

Price: US$ 8190

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

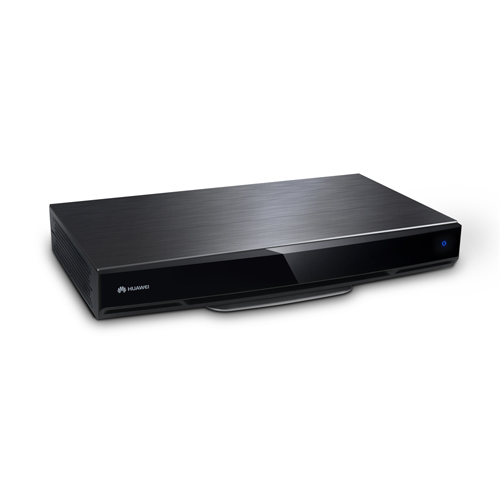

HUAWEI TE50 HD Endpoint Package

Including:TE50 HD Endpoint,HD Camera,Microphone Array,Remote Controllor

Video resolution:1080p 30fps,1080p 60fps (Optional)

Dual stream:Dual 1080p 60 fps (Optional); Dual 1080p 30 fps

Video interface:5 in 5 out

Audio interface:6 in 6 out

HD Camera:1080p 60fps,12x Optical Zoom

Array Microphone:Omni-directional sound pickup with 6-meter radius

Specifications

TE40

TE50

TE60

Standards and Protocols

ITU-T H.323, IETF SIP, ITU-T H.239, and BFCP

ITU-T H.323, IETF SIP, ITU-T H.239, and BFCP

ITU-T H.323, IETF SIP, ITU-T H.239, and BFCP

Video Standards and Protocols

H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV

H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV

H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV

Video Resolution of People (using different network bandwidths)


  • 1080p60 using 1 Mbit/s (optional)

  • 1080p30 using 512 kbit/s (optional)

  • 1080i60 using 512 kbit/s (optional)

  • 720p50/60 using 512 kbit/s (optional)

  • 720p25/30 using 384 kbit/s


  • 1080p60 using 1 Mbit/s (optional)

  • 1080p30 using 512 kbit/s

  • 1080i60 using 512 kbit/s

  • 720p50/60 using 512 kbit/s

  • 720p25/30 using 384 kbit/s


  • 1080p60 using 1 Mbit/s (optional)

  • 1080p30 using 512 kbit/s

  • 1080i60 using 512 kbit/s

  • 720p50/60 using 512 kbit/s

  • 720p25/30 using 384 kbit/s

Dual Stream

Dual 1080p60 (optional), Dual 1080p30 (optional), and Dual 720p30

Dual 1080p60 (optional), Dual 1080p30

Dual 1080p60 (optional), Dual 1080p30

Embedded MCU6-way HD video sites + 3-way VoIP sites6-way HD video sites + 3-way VoIP sites9-way HD video sites + 3-way VoIP sites
Connected
Microphones
Two VPM220 or two VPM220W
Two VPM220 or two VPM220WThree VPM220 or three VPM220W

Video Inputs

1 x HD-VI/DVI, 1 x HDMI/DVI, and 1 x VGA/YPbPr

1 x HD-VI/DVI, 1 x HDMI/DVI, 1 x VGA/YPbPr, 1 x 3G-SDI, and 1 x CVBS

2 x HD-VI/DVI, 2 x DVI-I/HDMI/VGA/YPbPr

1 x HDMI/DVI, 1 x 3G-SDI, and 1 x CVBS/S-VIDEO (DVI-I multiplex)

Video Outputs

2 x HDMI/DVI, 1 x VGA/YPbPr

2 x HDMI/DVI, 1 x VGA/YPbPr, 1 x 3G-SDI, and 1 x CVBS

2 x HDMI/DVI, 2 x DVI-I/HDMI/VGA/YPbPr, 1 x 3G-SDI, and 1 x CVBS/S-VIDEO (DVI-I multiplex)

Audio Inputs

1 x XLR, 2 x RCA, 1 x HDMI, and 1 x HD-AI (microphone array/audio input device)

1 x XLR, 2 x RCA, 1 x 3.5 mm, 1 x HDMI, and 1 x HD-AI (microphone array/audio input device)

2 x XLR, 2 x RCA, 1 x HDMI, and 1 x HD-AI (microphone array/audio input device)

Audio Outputs

4 x RCA, 2 x HDMI

4 x RCA, 2 x HDMI

4 x RCA, 2 x HDMI, and 2 x DVI-I (DVI converted to HDMI)

Other Ports

  • IP: 10/100/1,000 Base-T, 2 x RJ45

  • PSTN (#): 1 x RJ11

  • Wireless: Built-in Wi-Fi

  • 2 x RS-232 COM, 2 x USB 2.0 Host

  • IP: 10/100/1,000 Base-T, 2 x RJ45

  • PSTN (#): 1 x RJ11

  • Wireless: Built-in Wi-Fi

  • 2 x RS-232 COM, 2 x USB 2.0 Host

  • 4E1 (optional): G.703, G.704, 4 x RJ45

  • PSTN (#): 1 x RJ11

  • IP: 10/100/1,000 Base-T, 2 x RJ45

  • Wireless: Built-in Wi-Fi

  • 2 x RS232 COM, 2 x USB 2.0 Host

Multiview

2-view

3-view

3-view
