FusionDC 1000B

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

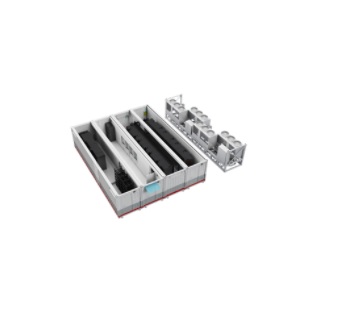

FusionDC1000-B is a prefabricated and fully enclosed outdoor structure to house data center infrastructure. HUAWEI FusionDC1000-B includes HUAWEI brand in-row air conditioners, high efficiency UPS and HUAWEI NetEco management system to provide necessary environment for modern IT and CT equipments.


temSingle data hall module-150 kWDual data hall module-300 kW
Entire system parametersDimensions(H*W*D)3600mmX(2438mm/3495mm)X12192mm
Total power≤150kW≤300kW
Number of cabinets26 (main aisle width ≤ 1.5 m)
28 (main aisle width ≤ 0.9 m)
52 (main aisle width ≤ 1.5 m)
56 (main aisle width ≤ 0.9 m)
Waterproof and dustproofIP55
Anti-seismicGR-63-CORE Zone3/9 intensity (The container)
Temperature range –20°C to +55°C, –40°C to +45°C (If the temperature is lower than –20°C, thermal insulation at the bottom is required.)
Electrical parametersPower mode 380/400/415V 50/60Hz,three-phase, four-wire+PE
Surge protection levelClass B,nominal: 30kA(8/20µs),maximum: 60kA(8/20µs)
Power SystemUPS5000E-200kVA (Full kit in 1+1 redundancy)UPS5000E-200kVA (Full kit in 1+1 redundancy)*2
Battery Backup TimeSingle-route 15 min at full load(SmartLi)
Cooling
Parameters
Cooling SystemNetCol8000-A055D(In room DX, 3+1 redundancy)NetCol8000-A055D(In room DX, 7+1 redundancy)
Continuous power supply to cooling devices15 min at full load
Aisle containmentHot aisle containment
Fire extinguishing parametersFire extinguishing systemAutomatic gas fire extinguishing, CE edition, non-addressable
Fire extinguishing gasHFC227-ea
