Huawei TE Series Video Conference End Point

Experience “in-person” video conferencing thanks to dual-channel 1080p60 HD video and AAC-LD audio; a panoramic view is created from multiple camera feeds.

TE series endpoints combine VME and H.264 HP to reduce bandwidth consumption by 50%. Key technologies such as intelligent face detection, frame rate doubling, and video enhancement ensure outstanding video communication. This advanced system provides numerous audiovisual ports and built-in Wi-Fi for easy connectivity, along with many other convenient features.

TE endpoints are ideal for meetings, interviews, or distance learning.

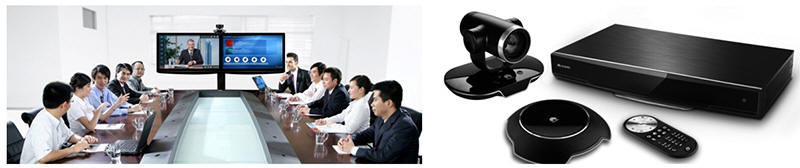

TE series video coference endpoint

Product Features

  • Built-in Wi-Fi connects to networks, presentation sources, microphones, and touch panels
  • VME + HP dual-core technology delivers superb HD-video with half the bandwidth of competing systems
  • Scalable Video Coding (SVC) and Huawei’s patented Super Error Correction (SEC) 3.0 provide excellent network adaptability and security while ensuring audiovisual quality even when the packet loss rate reaches 20%
  • Compatibility with a variety of protocols enables interoperability with Unified Communications (UC) systems, IP Multimedia Subsystems (IMSs), and other third-party systems

Product Characteristics



Innovative technologies provide HD experience even with low-bandwidth

TE Series supports resolutions up to dual-stream 1080p60 to provide total HD experiences;
With the combination of VME2.0 and H.264 HP, bandwidth consumption is reduced by 50%;
Intelligent face detection, frame rate doubling, and video enhancement technologies provide outstanding video communication experiences;
TE Series supports AAC-LD, Acoustic Echo Cancellation (AEC) and Acoustic Noise Suppression (ANS) to provide Hi-Fi audio.

Feature-rich functionalities, intelligent and easy-to-use to satisfy customers’ requirements

Voice Dialing: TE Series recognizes multiple languages. You can call or join a conference simply by saying the conference or site name.
Multi-view: Images from multi-cameras are transmitted in CP to the far-end via one stream which saves bandwidth and enables far-end sites to view live images from different angles.
Wi-Fi Access: Built-in Wi-Fi enables TE Series to support wireless network, microphone.
Live content: More than one site can share full HD content simultaneously, and any site can view any content as needed.
Air content sharing: No VGA cable required, users easily share data as presentations or content over wireless or IP network.
USB auto configuration: Data configuration is completed via U-disk, providing plug-and-play which is secure, convenient, and effortless.
VGA bypass: Local conference and video conference share one VGA, keeping local data sharing active without the need to plug and unplug VGA cables even after the video conferencing endpoint powers off.

User-friendly interface and remote-Control design

Innovative 3D GUI, convenient to use and maintain.
Wizard for first-time installation.
LCD display for real-time local site information.

Outstanding network adaptability and security mechanism

Patented Super Error Concealment (SEC) ensures high-quality video experiences even with packet loss at 20%.
Supports H.264 SVC, adaptable to different bandwidths, device capabilities, and network requirements.
Standard H.460 and proprietary SNP technology guarantee secure firewall traversal.
H.235 media stream and signaling encryption for SRTP, TLS, and HTTPS.

Extensive system integration

Inter-operable with standard endpoints and infrastructures.

Integration with Microsoft Lync2010™ /Lync2013™ and OCS2007R2.

Seamless integration with IMS.
Plentiful third-party APIs for system integration and customization.



Product Specification

Unit delivered complete with:

HD Codec, Remote control, Cables, and power supply;

Optional: HD Camera, Omni-array Microphone or wireless Microphone

Standards & Protocols
Standards and Protocols ITU-T H.323, IETF SIP
Video Standards & Protocols

H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, RTV

Audio Standards & Protocols G.711, G.722, G.722.1*, G.722.1C*, G.728, G.719, G729, G.729A, AAC-LD, and HWA-LD
Dual Stream ITU-T H.239, BFCP
Other Standards

H.221, H.225, H.230, H.231, H.235, H.241, H.242, H.243, H.245, H.281, H.350, H.460, T.140, and DTMF

Network Standards & Protocols TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS,  PPPoE, RTP, RTCP, SNTP, ARP, 802.1X, 802.1P, and 802.1Q
Video Specifications and Features
Content Video Resolutions

Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 60/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p60/75/85, 1080p60, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, 1,920 x 1,200 @ 60 fps

Coding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080, 1,600 x 1,200, 1,920 x 1200

Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080, 1,600 x 1,200, 1,920 x 1,200

Other Video Features Intelligent Face Detection Picture-in-Picture, Picture-outside-Picture Video Motion Enhancement (VME) Video Intensifier View Processing
Audio Specifications and Features
Audio Features

Dual-channel AAC-LD Stereo

HWA-LD Stereo: Huawei Audio Broadband Low Delay Stereo

Acoustic Echo Cancellation (AEC)

Acoustic Noise Suppression (ANS)

Automatic Gain Control (AGC)

Voice Clear, Audio Enhancer

Lip synchronization

Security and Stability
Security

H.235 signaling and media stream encryption

AES media stream encryption, dual-stream encryption

Administrator password, SSH/HTTPS

TLS and SRTP for SIP signaling and media stream encryption

Conference access password, conference control password

Firewall Traversal H.460.18, H.460.19 firewall traversal, Static NAT, and SNP
Network

Dual-stack IPv6 and IPv4

IP Precedence, Diffserv

Uniform resource identifier (URI) dialing

Super Error Concealment (SEC), Intelligent Rate Control (IRC)

Automatic Repeat reQuest (ARQ), Forward Error Correction (FEC), PLC

Application Features
Languages Simplified Chinese, Traditional Chinese, English, Japanese, Russian, French, Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, and Indonesian
Special Features

Voice Dialing in English and Chinese

USB auto data configuration

VGA bypass

Wireless Wi-Fi access

Air content sharing

Connect to two Omni-array Microphones (VPM220)

Wireless MIC VPM220W access

Integration with Microsoft Lync2010™ /Lync2013™ and OCS2007R2

Hybrid with IMS network

Lock Site/Conference

SiteCall (HD dual-stream)

Web-based conference management

Web-based image monitoring and HD picture snapshot

16:9 and 4:3 mixed display

Picture-in-picture: 1/16 picture size, optional position

Split output: Bi-screen and tri-screen display

LDAP/Network address book

API for integration

Digital Caption

Caption banner, body text and information bar

Rolling display mode of the speech draft

Modifiable front background color, caption size and transparency

64 optional colors

Editable caption and auto zone adjustment

Caption rolling mode setting

Site name display and position shift

Text input through remote control

External character generator

Powerful caption SMS function

Maintenance Management
Maintenance Methods

Remote control: 3D Effects & GUI Animation

Command line mode: Telnet/SSH

Endpoints Network Management: SNMP

Embedded Web server, GUI interface

Wireless touch panel (optional)

Maintenance Functions

Endpoint IP and number are displayed on the front panel

Auto sleep, wake-up by remote control or remote module

Local and remote loopback

Event log record, query, and display, and export query results

IP network test, default settings restoration

Test signals: Providing sound test and standard test stripes

Physical Characteristics
Environmental Specifications

Operating Temperature: 0°C to 40ºC

Operating Humidity: 10% to 80%

Non-Operating Temperature: -40ºC to -85ºC

Non-Operating Humidity (non-condensing): 0% to 95%

Peripheral noise: < 46 dBA SPL

Lowest luminance: 7 lux

Recommended luminance: > 300 lux

Approval and Compliance CE, RoHS, WEEE, REACH, UL, CCC, FCC, VCCI, C-Tick

  TE40 TE50 TE60
Positioning Commercial Professional Flagship
Scenarios Middle and small-sized conference rooms Large and middle-sized conference rooms Super sized conference rooms
People Video Resolution

1080p60 from 1 Mbit/s (optional)

1080p30 from 512 Kbit/s (optional)

1080i60 from 512 Kbit/s (optional)

720p50/60 from 512 Kbit/s (optional)

720p25/30 from 384 Kbit/s

1080p60 from 1 Mbit/s (optional)

1080p30 from 512 Kbit/s

1080i60 from 512 Kbit/s

720p50/60 from 512 Kbit/s

720p25/30 from 384 Kbit/s

1080p60 from 1 Mbit/s (optional)

1080p30 from 512 Kbit/s

1080i60 from 512 Kbit/s

720p50/60 from 512 Kbit/s

720p25/30 from 384 Kbit/s

Dual stream Dual 1080p60 (optional); Dual 1080p30 (optional); Dual 720p30 Dual 1080p60 (optional); Dual 1080p30 Dual 1080p60 (optional); Dual 1080p30
Video Inputs 1 x HD-VI / DVI, 1 x HDMI / DVI, 1 x VGA/YPbPr 1 x HD-VI / DVI, 1 x HDMI / DVI, 1 x VGA/YPbPr, 1 x 3G-SDI, 1 x CVBS

2 x HD-VI / DVI , 2 x DVI-I/HDMI/VGA/YPbPr,

1 x HDMI / DVI, 1 x 3G-SDI, 1 x Display Port,

1 x CVBS/S-VIDEO (DVI-I multiplex)

Video Outputs 2 x HDMI / DVI, 1 x VGA/YPbPr

2 x HDMI / DVI, 1 x VGA/YPbPr,

1 x 3G-SDI, 1 x CVBS

2 x HDMI / DVI, 2 x DVI-I/HDMI/VGA/YPbPr,

1 x 3G-SDI, 1 x CVBS/S-VIDEO (DVI-I multiplex)

Audio Inputs

1 x XLR, 2 x RCA, 1 x HDMI,

1 x HD-AI (Mic Array/Audio external)

1 x XLR, 2 x RCA, 1 x 3.5mm, 1 x HDMI,

1 x HD-AI (Mic Array/Audio external)

2 x XLR, 2 x RCA, 1 x HDMI,

1 x Display Port 1 x HD-AI (Mic Array/Audio external)

Audio Outputs 4 x RCA, 2 x HDMI 4 x RCA, 2 x HDMI 4 x RCA, 2 x HDMI, 2 x DVI-I (DVI converted to HDMI)
Other Interfaces

IP: 10/100/1,000 Base-T, 2 x RJ45; PSTN(#): 1 x RJ11

Wireless: Built-in Wi-Fi; 2 x RS232 COM, 2 x USB 2.0 Host

IP: 10/100/1,000 Base-T, 2 x RJ45; PSTN(#): 1 x RJ11

Wireless: Built-in Wi-Fi; 2 x RS232 COM, 2 x USB 2.0 Host

4E1 (Optional): G.703, G.704, 4 x RJ45; PSTN(#): 1 x RJ11

IP: 10/100/1,000 Base-T, 2 x RJ45

Wireless: Built-in Wi-Fi ; 2 x RS232 COM, 2 x USB 2.0 Host

Multi-view 2-view 2-view 3-view
Bandwidth IP: 64 kbit/s to 8 Mbit/s IP:64 kbit/s to 8 Mbit/s
IP: 64 kbit/s to 8 Mbit/s;  4E1: 64 kbit/s to 8 Mbit/s

Dimensions

Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm

Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm

Net weight: 3.9 kg Package

Weight: 5.8 kg

Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm

Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm

Net weight: 4.1 kg

Package Weight: 6.0 kg

Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm

Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm

Net weight: 4.6 kg

Package Weight: 6.8 kg

Electrical

Working voltage: 100V to 240V AC

Working frequency: 50 Hz to 60 Hz

Power consumption: 60W

Embedded AC/DC power module

Working voltage: 100V to 240V AC

Working frequency: 50 Hz to 60 Hz

Power consumption: 60W

Embedded AC/DC power module

Working voltage: 100V to 240V AC

Working frequency: 50 Hz to 60 Hz

Power consumption: 150W

Embedded AC/DC power module


Huawei TE Series Video Conference Endpoints

Huawei TE series brings state-of-the-art HD technology to HD videoconferencing endpoints. This new series from Huawei delivers peak performance with dual 1080p60 video and AAC-LD audio, with a face-to-face communication experience so lifelike you will think you are in the same room. Multi-view images are easily transmitted to users simultaneously for a complete panoramic presentation. Numerous audio/video interface options and Wi-Fi connection integrate the conference room and simplify deployment, making the TE series the ideal choice for scenarios like administrative conferences and remote education video conferencing.
