OceanStor 5300/5500/5600/5800 V3 Storage Systems

Offer a cloud architecture-oriented operating system, high-performance hardware platform, and a complete suite of smart management software.

Scalable to eight controllers, 1 TB cache, 7.5 PB storage capacity, with a variety of interfaces, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and smart I/O cards.

Perfect storage systems for large OLTP/OLAP databases, file sharing, and cloud computing in the government, finance, telecom, energy, and media industries.

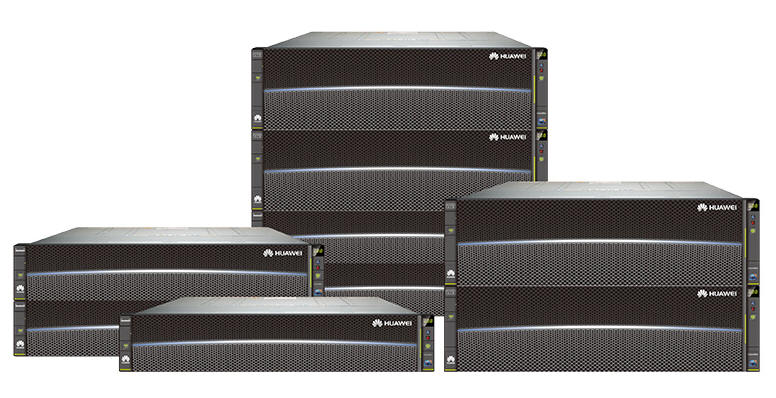

OceanStor5300 5500 5800



Features

  • Enable convergence in five areas: SAN and NAS, heterogeneous devices, entry-level to high-end storage, HDD and SSD, and storage and backup
  • Provide industry-leading specifications: Up to 8 controllers, 1 TB cache, 7.5 PB storage capacity, and various interface types, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and Smart I/O card
  • Simplest management platform handles multiple product models with a graphical interface and is available in Windows, iOS, and Android versions
  • Protect customer initial investment and reduce TCO for multiple applications, various product models, and fast business growth

Video

Specification

Specifications

5300 V3

5500 V3

5600 V3

5800 V3

System Cache (expanded with the number of controllers)

32 GB to 256 GB

48 GB to 512 GB

64 GB to 512 GB

128 GB to 1,024 GB

Maximum Number of Controllers

8

8

8

8

Supported Storage Protocols

Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, and FTP

Port Types

1 Gbit/s Ethernet, 10 Gbit/s FCoE, 10 Gbit/s TOE, 16 Gbit/s FC, and 56 Gbit/s InfiniBand, SAS 3.0 (back-end, 4 x 12 Gbit/s per port)

Maximum Number of Disks Supported by Two Controllers

500

750

1,000

1,500

Maximum Number of Front-end Ports per Controller

20

20

28

28

Maximum Number of I/O Modules per Controller

2

2

8

8

Disk Types and Supported RAID Levels

Disk types: SSD, SAS, and NL-SAS

RAID levels: 0, 1, 3, 5, 6, 10, or 50

Virtualization Features

  • Heterogeneous virtualization: Consolidates storage resources of mainstream products to manage and allocate in a flexible and unified manner
  • Block virtualization: Balanced data distribution, quick fault recovery
  • Supports virtual machines: VMware, Citrix, and Hyper-V
  • Value-added features related to virtual environments: Support for VMware VAAI and integration of VSphere and VCenter

Key Software Features

  • HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), and HyperReplication (remote replication)
  • SmartQoS (intelligent QoS control), SmartPartition (intelligent partitioning), SmartCache (intelligent SSD caching), SmartTier (intelligent storage tiering), SmartThin (intelligent thin provisioning), SmartMotion (intelligent data migration), SmartMulti-Tenant (multi-tenant), SmartMigration (LUN migration), SmartCompression (online compression), SmartDedupe (online de-duplication), SmartQuota (quota management), SmartLock (WORM), and SmartErase (data destruction)
  • UltraPath (multipathing management), Cloud Service (remote maintenance and management), ReplicationDirector (disaster recovery management software), DeviceManager (manage a single device), and eSight (manage multiple cross-field devices)

Compare and Shop

Vendor Product Description Huawei Advantages
HUAWEI OceanStor 5300 V3 OceanStor 5300 V3 Base Configuration
DELL COMPELLENT SC8000 Dell middle-level SAN product 1. V3 series supports all-in-one unified storage systems while Compellent series requires extra engines to expand NAS functions.
2. Compellent series only supports dual controllers while V3 series supports for scale-out up to 8 controllers.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while Compellent series only supports the 16 Gbit/s Fibre Channel port.
EMC VNX5400 EMC middle-level unified storage product 1. V3 series supports all-in-one unified storage systems while VNX2 series requires extra engines to expand NAS functions.
2. V3 series supports a maximum of 8 controllers while VNX2 series has dual controllers only.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while NX2 series does not support the preceding ports and bus.
4. V3 series supports heterogeneous storage virtualization while VNX2 series does not.
5. V3 series supports inline deduplication and compression as well as hardware acceleration while VNX2 series does not support these functions.
6. V3 series supports volume mirroring, cache partitioning, 5-second RPO, and quick data recovery that is exclusively owned by Huawei while VNX2 series does not support these functions.
HDS HUS 150 HDS middle-level unified storage product 1. Use the leading architecture/specifications/hardware and software technologies of V3 series to beat HDS HUS Series.
2. Because huge performance gap between mid-range HUS 100 and HUS VM series, Huawei can use 5300 V3 or 5500 V3 products with high cache specifications to beat HUS VM products.
HP STORESERV 7400 HP middle-level SAN product 1. V3 series gains an obvious advantage over StoreServ 7000 series in cache capacity, port quantities, and the maximum number of disks. Huawei can use 5500 V3 products with high cache specifications to beat high-end StoreServ 10000 products.
2. Except that StoreServ 10000 series supports 8 controllers and StoreServ 7400 series supports 4 controllers, HP storage products only support dual controllers while V3 series supports for scale-out up to 8 controllers.
3. V3 series supports all-in-one unified storage systems while SotreServ 7000 series requires extra engines to expand NAS functions.
4. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while SotreServ 7000 series does not support the preceding ports and bus.
IBM STORWIZE V7000 IBM middle-level unified storage product 1. V3 can support larger cache capacity, more disks and more host ports than V7000.
2. V3 series supports all-in-one unified storage systems while V7000 series requires extra engines to expand NAS functions.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while V7000 series does not support the preceding ports and bus.
NETAPP FAS8020 NetApp middle-level unified storage product V3 series gains an obvious advantage over FAS series in cache capacity, port quantities, and the maximum number of disks. Huawei can use specifications to control the bidding or to enable a high-end FAS product to compete with a mid-range V3 product.
V3 series supports all-in-one unified storage systems while FAS block storage is inefficient because the block storage works based on blocks virtualized from files.
V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while FAS series does not support the preceding ports and bus.
NETAPP FAS8040 NetApp middle-level unified storage product V3 series gains an obvious advantage over FAS series in cache capacity, port quantities, and the maximum number of disks. Huawei can use specifications to control the bidding or to enable a high-end FAS product to compete with a mid-range V3 product.
V3 series supports all-in-one unified storage systems while FAS block storage is inefficient because the block storage works based on blocks virtualized from files.
V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while FAS series does not support the preceding ports and bus.

Vendor Product Description Huawei Advantages
HUAWEI OceanStor 5500 V3 OceanStor 5500 V3 Base Configuration
DELL COMPELLENT SC8000 Dell middle-level SAN product 1. V3 series supports all-in-one unified storage systems while Compellent series requires extra engines to expand NAS functions.
2. Compellent series only supports dual controllers while V3 series supports for scale-out up to 8 controllers.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while Compellent series only supports the 16 Gbit/s Fibre Channel port.
IBM STORWIZE V7000 IBM middle-level unified storage product 1. V3 can support larger cache capacity, more disks and more host ports than V7000.
2. V3 series supports all-in-one unified storage systems while V7000 series requires extra engines to expand NAS functions.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while V7000 series does not support the preceding ports and bus.
NETAPP FAS8020 NetApp middle-level unified storage product V3 series gains an obvious advantage over FAS series in cache capacity, port quantities, and the maximum number of disks. Huawei can use specifications to control the bidding or to enable a high-end FAS product to compete with a mid-range V3 product.
V3 series supports all-in-one unified storage systems while FAS block storage is inefficient because the block storage works based on blocks virtualized from files.
V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while FAS series does not support the preceding ports and bus.
NETAPP FAS8040 NetApp middle-level unified storage product V3 series gains an obvious advantage over FAS series in cache capacity, port quantities, and the maximum number of disks. Huawei can use specifications to control the bidding or to enable a high-end FAS product to compete with a mid-range V3 product.
V3 series supports all-in-one unified storage systems while FAS block storage is inefficient because the block storage works based on blocks virtualized from files.
V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while FAS series does not support the preceding ports and bus.
EMC VNX5600 EMC middle-level unified storage product 1. V3 series supports all-in-one unified storage systems while VNX2 series requires extra engines to expand NAS functions.
2. V3 series supports a maximum of 8 controllers while VNX2 series has dual controllers only.
3. V3 series supports the 18 Gbit/s FiChannel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while NX2 series does not support the preceding ports and bus.
4. V3 series supports heterogeneous storage virtualization while VNX2 series does not.
5. V3 series supports inline deduplication and compression as well as hardware acceleration while VNX2 series does not support these functions.
6. V3 series supports volume mirroring, cache partitioning, 5-second RPO, and quick data recovery that is exclusively owned by Huawei while VNX2 series does not support these functions.
HP STORESERV 7400C HP middle-level unified storage product 1. V3 series gains an obvious advantage over StoreServ 7000 series in cache capacity, port quantities, and the maximum number of disks. Huawei can use 5500 V3 products with high cache specifications to beat high-end StoreServ 10000 products.
2. Except that StoreServ 10000 series supports 8 controllers and StoreServ 7400 series supports 4 controllers, HP storage products only support dual controllers while V3 series supports for scale-out up to 8 controllers.
3. V3 series supports all-in-one unified storage systems while SotreServ 7000 series requires extra engines to expand NAS functions.
4. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while SotreServ 7000 series does not support the preceding ports and bus.

Vendor Product Description Huawei Advantages
HUAWEI OceanStor 5600 V3 OceanStor 5600 V3 Base Configuration
DELL COMPELLENT SC8000 Dell middle-level SAN product 1. V3 series supports all-in-one unified storage systems while Compellent series requires extra engines to expand NAS functions.
2. Compellent series only supports dual controllers while V3 series supports for scale-out up to 8 controllers.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while Compellent series only supports the 16 Gbit/s Fibre Channel port.
IBM STORWIZE V7000 IBM middle-level unified storage product 1. V3 can support larger cache capacity, more disks and more host ports than V7000.
2. V3 series supports all-in-one unified storage systems while V7000 series requires extra engines to expand NAS functions.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while V7000 series does not support the preceding ports and bus.
HP STORESERV 7400C HP middle-level unified storage product 1. V3 series gains an obvious advantage over StoreServ 7000 series in cache capacity, port quantities, and the maximum number of disks. Huawei can use 5500 V3 products with high cache specifications to beat high-end StoreServ 10000 products.
2. Except that StoreServ 10000 series supports 8 controllers and StoreServ 7400 series supports 4 controllers, HP storage products only support dual controllers while V3 series supports for scale-out up to 8 controllers.
3. V3 series supports all-in-one unified storage systems while SotreServ 7000 series requires extra engines to expand NAS functions.
4. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while SotreServ 7000 series does not support the preceding ports and bus.
EMC VNX5800 EMC middle-level unified storage product 1. V3 series supports all-in-one unified storage systems while VNX2 series requires extra engines to expand NAS functions.
2. V3 series supports a maximum of 8 controllers while VNX2 series has dual controllers only.
3. V3 series supports the 19 Gbit/s Fiannel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while NX2 series does not support the preceding ports and bus.
4. V3 series supports heterogeneous storage virtualization while VNX2 series does not.
5. V3 series supports inline deduplication and compression as well as hardware acceleration while VNX2 series does not support these functions.
6. V3 series supports volume mirroring, cache partitioning, 5-second RPO, and quick data recovery that is exclusively owned by Huawei while VNX2 series does not support these functions.
HDS HUS VM HDS middle-level unified storage product 1. Use the leading architecture/specifications/hardware and software technologies of V3 series to beat HDS HUS Series.
2. Because huge performance gap between mid-range HUS 100 and HUS VM series, Huawei can use 5300 V3 or 5500 V3 products with high cache specifications to beat HUS VM products.
NETAPP FAS8060 NetApp middle-level unified storage product V3 series gains an obvious advantage over FAS series in cache capacity, port quantities, and the maximum number of disks. Huawei can use specifications to control the bidding or to enable a high-end FAS product to compete with a mid-range V3 product.
V3 series supports all-in-one unified storage systems while FAS block storage is inefficient because the block storage works based on blocks virtualized from files.
V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while FAS series does not support the preceding ports and bus.

Vendor Product Description Huawei Advantages
HUAWEI OceanStor 5800 V3 OceanStor 5800 V3 Base Configuration
DELL COMPELLENT SC8000 Dell middle-level SAN product 1. V3 series supports all-in-one unified storage systems while Compellent series requires extra engines to expand NAS functions.
2. Compellent series only supports dual controllers while V3 series supports for scale-out up to 8 controllers.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while Compellent series only supports the 16 Gbit/s Fibre Channel port.
IBM STORWIZE V7000 IBM middle-level unified storage product 1. V3 can support larger cache capacity, more disks and more host ports than V7000.
2. V3 series supports all-in-one unified storage systems while V7000 series requires extra engines to expand NAS functions.
3. V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while V7000 series does not support the preceding ports and bus.
HDS HUS VM HDS middle-level unified storage product 1. Use the leading architecture/specifications/hardware and software technologies of V3 series to beat HDS HUS Series.
2. Because huge performance gap between mid-range HUS 100 and HUS VM series, Huawei can use 5300 V3 or 5500 V3 products with high cache specifications to beat HUS VM products.
EMC VNX7600 EMC middle-level unified storage product 1. V3 series supports all-in-one unified storage systems while VNX2 series requires extra engines to expand NAS functions.
2. V3 series supports a maximum of 8 controllers while VNX2 series has dual controllers only.
3. V3 series supports the 19 Gbit/s Fiannel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while NX2 series does not support the preceding ports and bus.
4. V3 series supports heterogeneous storage virtualization while VNX2 series does not.
5. V3 series supports inline deduplication and compression as well as hardware acceleration while VNX2 series does not support these functions.
6. V3 series supports volume mirroring, cache partitioning, 5-second RPO, and quick data recovery that is exclusively owned by Huawei while VNX2 series does not support these functions.
NETAPP FAS8080 EX NetApp middle-level unified storage product V3 series gains an obvious advantage over FAS series in cache capacity, port quantities, and the maximum number of disks. Huawei can use specifications to control the bidding or to enable a high-end FAS product to compete with a mid-range V3 product.
V3 series supports all-in-one unified storage systems while FAS block storage is inefficient because the block storage works based on blocks virtualized from files.
V3 series supports the 16 Gbit/s Fibre Channel or 56 Gbit/s IB host port, PCIe 3.0 system bus, and 12 Gbit/s SAS disk port while FAS series does not support the preceding ports and bus.

Quote on OceanStor 5300V3

Quote on OceanStor 5500v3

Quote on OceanStor 5600v3

Quote on OceanStor 5800v3

Contact us:Tel: 1-866-318-6636 (US/CANADA)

     Email: info@actfornet.com

Huawei OceanStor 5300/5500/5600/5800 V3

Huawei OceanStor 5300, 5500, 5600, and 5800 V3 midrange storage systems are next-generation unified storage products specifically designed for enterprise-class applications.
Employing a storage operating system built on a cloud-oriented architecture, a powerful new hardware platform, and a suite
of intelligent management software, the V3 mid-range storage systems deliver industry-leading functionality, performance,efficiency, reliability, and ease-of-use.

The V3 mid-range storage systems are ideal for applications such as large-database Online Transaction Processing (OLTP)/Online Analytical Processing (OLAP), file sharing, and cloud computing. Further, these systems offer a wide range of efficient backup and disaster recovery solutions. With a versatile set of capabilities, the V3 mid-range storage systems can be widely applied in industries ranging from government, finance, telecommunications, energy, to Media and Entertainment (M&E).
