OSN 8800 T32

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

Number of slots for service boards: 16/32/64
Cross-connect capacity: 1.6T/3.2T/6.4T ODUk(k=0, 1, 2, 2e, 3, 4, flex)
Wavelength (max): DWDM: 80-ch, CWDM: 8-ch
Max. rate per channel: 100 Gbit/s (OTU4)
ASON: Optical-Layer ASON and electrical-Layer ASON

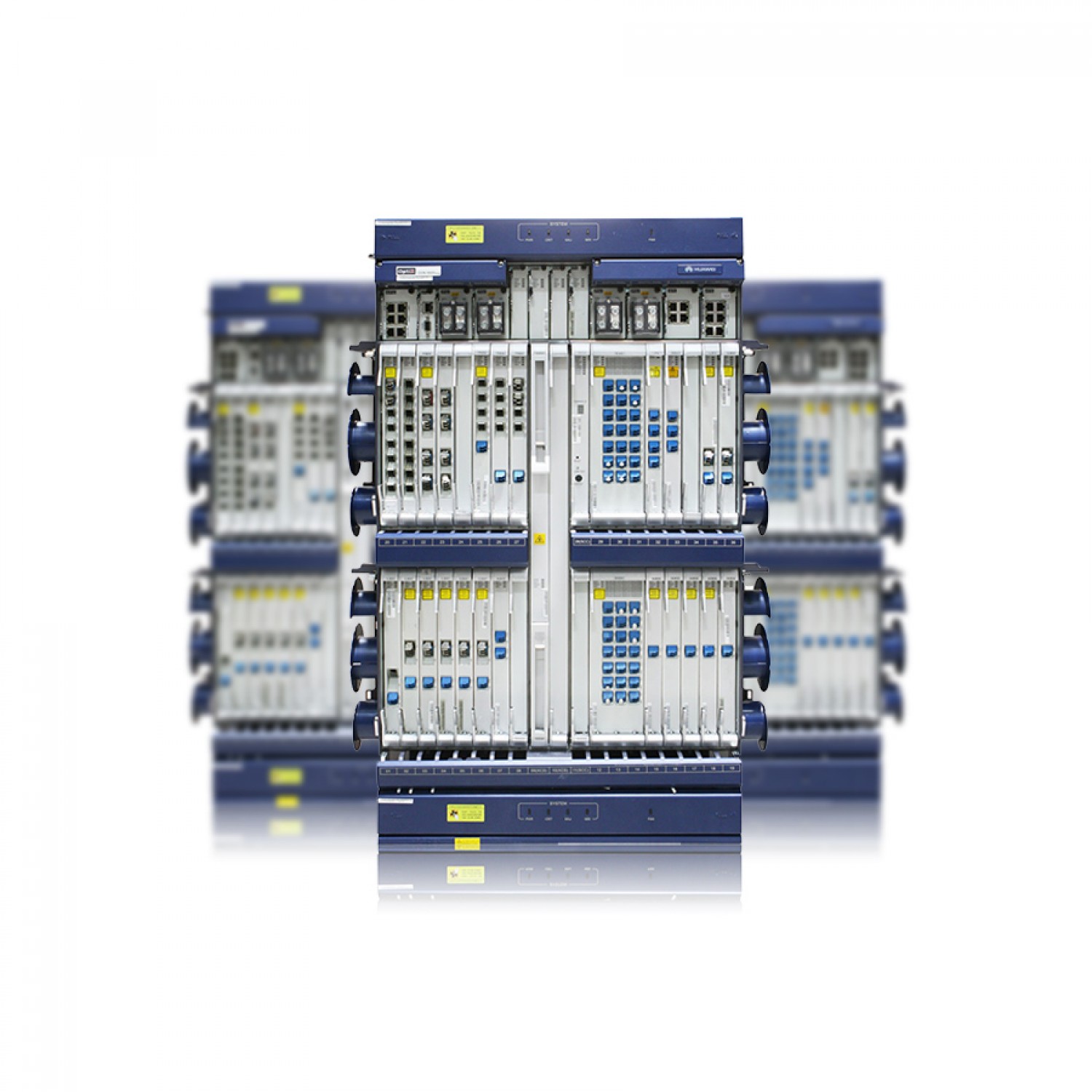

OptiX OSN 8800.png

SpecificationsOptiX OSN 8800 UPSOptiX OSN 8800 T16OptiX OSN 8800 T32OptiX OSN 8800 T64
Dimensions (H x W x D)397 mm x 442 mm x 291 mm450 mm x 498 mm x 295 mm900 mm x 498 mm x 295 mm900 mm x 498 mm x 580 mm
Number of Service Slots1616
Cross-connect CapabilityNA1.6T ODUk, 640G VC4 & 20G VC3 & VC12, 800G Packet3.2T ODUk, 1.28T VC4 & 80G VC3 & VC12, 1.6T Packet6.4T ODUk, 1.28T VC4 & 80G VC3 & VC12
Channel Spacing

100 GHz fixed grid for 40/48 wavelengths

50 GHz fixed grid for 80/96 wavelengths

37.5 GHz to 400 GHz flex grid

Rate per Channel (maximum)100G/200G
Wavelength RangeDWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1)
Power Supply-48V DC to -60V DC
