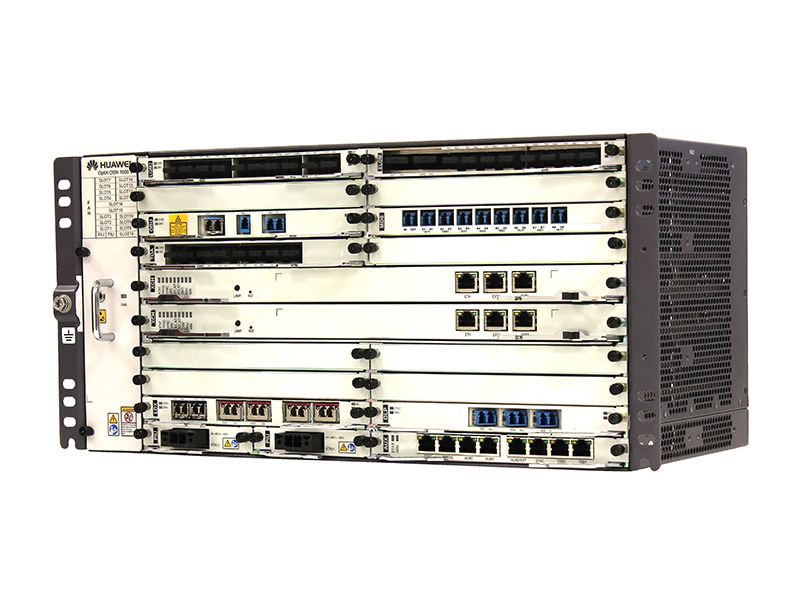

OSN 1800V

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

Dimensions (H x W x D): 221 mm x 442 mm x 224 mm
Number of Service Slots:14 slots per cabinet (DC) 12 slots per cabinet (AC)
Switching Capability:OTN: 700G ODUk (k=0, 1, 2, 2e, flex)
Packet: 700G
SDH: 280G (high-order), 5G (low-order)
Number of Wavelengths (maximum):CWDM: 8 wavelengths; DWDM: 40 wavelengths
Rate per Wavelength (maximum):100G (OTU-4)
Installation Rack:19/23-inch rack, ETSI 300 mm/600 mm rack
Power Supply:110V AC to 220V AC, -48V DC to -60V DC

SpecificationsOptiX OSN 1800 IOptiX OSN 1800 IIOptiX OSN 1800V
Dimensions (H x W x D)
44 mm x 435 mm x 220 mm88 mm x 435 mm x 220 mm221 mm x 442 mm x 224 mm
Number of Service Slots
4 slots per cabinet (DC)

2 slots per cabinet (AC)

8 slots per cabinet (DC)

6 slots per cabinet (AC

14 slots per cabinet (DC)

12 slots per cabinet (AC)

Cross-connect Capability
N/A

Packet: 60 GE

SDH: 40 GE (high-order), 5 GE (low-order)

OTN: 700G ODUk (k=0, 1, 2, 2e, or flex)

Packet: 700G

SDH: 280G (high-order), 5G (low-order)

Number of Wavelengths (maximum)CWDM: 8 wavelengths; DWDM: 80 wavelengths
Rate per Wavelength (maximum)100 G
Installation Rack19-inch to 23-inch rack, ETSI 300 mm or 600 mm rack
Power Supply
110V AC to 220V AC, -48V DC to -60V DC
