DC908

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

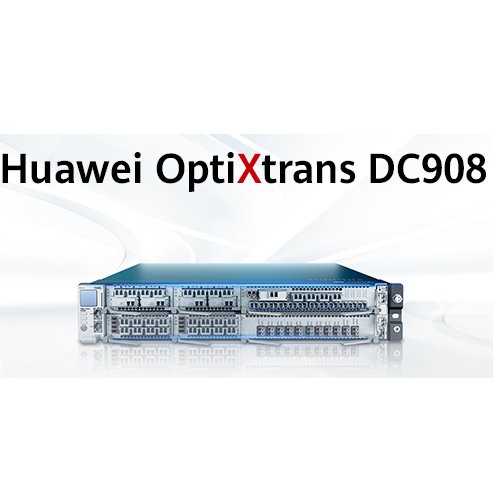

OptiXtrans DC908 Features: simplified deployment, from scratch to completion in just eight minutes; ultra-broadband and high integration, with 48T per fiber (sufficient for the next five years); and intelligent, proactive Operations and Maintenance (O&M) that’s AI ready.

ParameterDescription
ChassisDimensions (H x W x D)86.1 mm x 442 mm x 500 mm
Maximum Capacity9.6 Tbit/s
Number of Service Board Slots8
Applicable Cabinet19-inch cabinet
Line-Side PortRate (Programmable)• 100 Gbit/s (PDM_QPSK, PDM_wDCM_QPSK)
• 200 Gbit/s (PDM_16QAM, PDM_16QAM-H, PDM_e16QAM, PDM_QPSK)
• 400 Gbit/s (PDM_16QAM)
• 600 Gbit/s (PDM_64QAM)
• 800 Gbit/s (PDM_64QAM)
Optical Module• Wavelength-tunable optical module MSA
• Wavelength-tunable and pluggable CFP2
Client-Side PortAccess Service Type10 GE LAN, 10 GE WAN, 40 GE, 100 GE, 400 GE, OTU4, OTU2, OTU2e, STM-64, FC800, FC1200, FC1600, and FC3200
Optical Module• Pluggable SFP+
• Pluggable QSFP28, QSFP+, and QSFP-DD
Optical Power ManagementALS, AGC, eALC, APE, and IPA
Maximum Number of WavelengthsFixed grid: 120 wavelengths @ 50 GHz
Channel SpacingFixed grid: 50 GHz, 75 GHz, 100 GHz, 150 GHz
Center Frequency Range190.7 THz to 196.65 THz
Center Wavelength Range1524.50 nm to 1572.06 nm
Protection• Optical line protection
• Intra-board 1 + 1 protection
• Client 1 + 1 protection
Management InterfaceCLI, GUI, SNMP, NCE-T, and NETCONF
Encryption AlgorithmAES-256
O&M Features• Intuitive one-click deployment
• Proactive O&M with resource and health prediction for fast and accurate troubleshooting
• O&M LCD information display
Reliability1 + 1 control board protection
Power SupplyBackup1 + 1 power supply backup
AC• Rated voltage range:
  100 V AC to 120 V AC (50/60 Hz)
  200 V AC to 240 V AC (50/60 Hz)
• Maximum voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)
High-Voltage DC• Rated voltage: 240 V HVDC
• Maximum voltage range: 192 V HVDC to 288 V HVDC
DC• Rated voltage: –48 V DC
• Maximum voltage range: –40 V DC to –72 V DC
Heat Dissipation• Front-to-rear air flow
• 2 + 1 fan tray assembly backup
