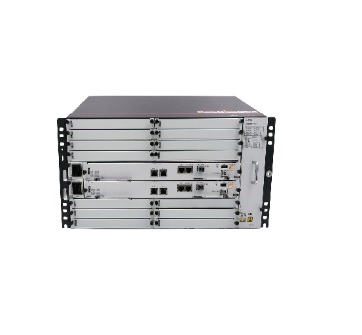

OptiXtrans E6616

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

Number of card slots: 14
Wavelength (max): DWDM: 80-ch, CWDM: 8-ch
Installation: box can be mounted on racks 19-inch and ETSI rack
Power Supply: DC/AC


Specifications

ParametersHuawei OptiXtrans E6616Huawei OptiXtrans E6608Huawei OptiXtrans E6608T
Dimensions (H x W x D)442 x 221 x 224 mm (excluding mounting ears)442 x 88 x 220 mm (excluding mounting ears)442 x 88 x 220 mm (excluding mounting ears)
Weight8.0 kg3.6 kg4.9 kg
Number of Service Board Slots
DC chassis: 14
AC chassis: 12/10		DC chassis: 6
AC chassis: 4		DC chassis: 7
AC chassis: 5
Equipment Capacity
2.8T/160G H/20G L800G/400G/60G H/10G LN/A
Maximum Number of WavelengthsDWDM 80
CWDM 8		DWDM 80
CWDM 8		DWDM 80
CWDM 8
Center Wavelength RangeDWDM: 1529.16–1560.61nm (C Band, ITU-T G.694.1)
CWDM: 1471–1611 nm (S + C + L Band, ITU-T G.694.2)
Maximum Rate per Channel200 Gbit/s
Installation Mode19-inch cabinet
ETSI 300 mm deep cabinet, such as N63E, N63B, and A63B
Power Supply110 V AC to 220 V AC，-48 V DC to -60 V DC
