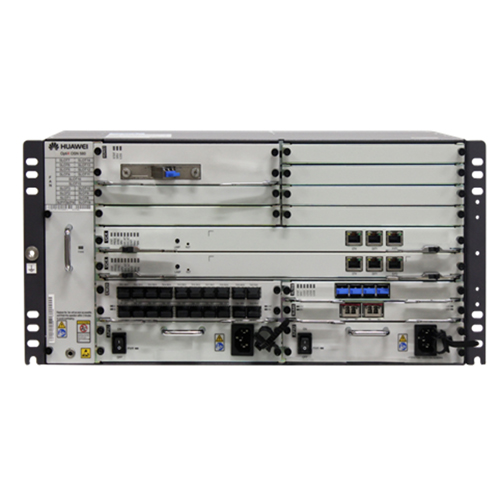

OptiX OSN 580

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

OSN580 is Not Available, Click Here for alternative OSN 1800

Large Capacity: 560G Packet / 560G TDM universal switch, 14 service slots, 5U height with 19 inch
Ultra Broadband: Smart 40G line transport in one port, 100G line ready
Future-proof: OTN hardware ready

SpecificationsOSN 7500IIOSN 580OSN 550OSN 500 (Packet)OSN 500 (TDM)
Dimensions (H x W x D)800 mm x 496 mm x 295 mm221 mm x 442 mm x 224 mm88 mm x 442 mm x 220 mm44 mm x 442 mm x 220 mm44 mm x 442 mm x 220 mm
Service Slots32 slots, 16 slots for interface boards and 16 slots for processing boards15 slots8 slots3 slots3 slots
Switch Capacity

Packet: 320 Gbit/s

TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order)

OTN: 560 Gbit/s

Packet: 560 Gbit/s

TDM: 280 Gbit/s (higher order), 20 Gbit/s (lower order)

Packet: 64 Gbit/s

TDM: 20 Gbit/s (higher order), 5 Gbit/s (lower order)

Packet: 7.2 Gbit/sTDM: 21.25 Gbit/s (higher order), 5 Gbit/s (lower order)
Networking ModesPure packet, hybrid (packet + SDH) or SDH networking

WDM networking

Single fiber bi-directional transmission

Pure packet

Single fiber bi-directional transmission

SDH networking

Single fiber bi-directional transmission

Power Supply-48V DC/-60V DC

-48V DC/-60V DC
220V AC/110V AC

-48V DC/-60V DC
220V AC/110V AC
-48V DC/-60V DC
220V AC/110V AC
-48V DC/-60V DC
220V AC/110V AC
Supported InterfacesOTN interfaces: OTU-1, OTU-2/2e, and OTU-3 (40G, compliant with OTL3.4 standard)
Ethernet interfaces: FE/GE/10 GE/40 GE
SDH interfaces: STM-1/4/16/64
PDH interfaces: E1/E3/E4, T1/T3/T4
ATM interfaces: E1, STM1
WDM interfaces: 40 DWDM wavelengths, compliant with ITU-T G.694.1; 8 CWDM wavelengths, and compliant with ITU-T G.694.2
PCM interfaces: FXS/FXO, 2/4 wire audio and E&M, G.703 64K co-directional interface, V.35/V.24 (sync/async RS232)/X.21, and RS449 (RS423A/RS422A)/RS530/RS530A/RS485, IEEE C37.94
