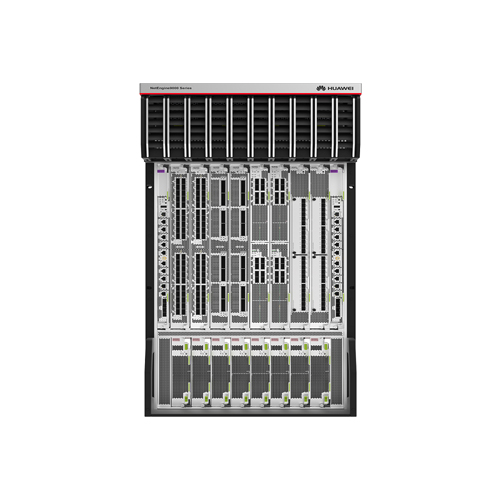

Core Router
1. 8 LPU slots,23U, 84Tbps switching capacity, support 4T board
2. 2*MPU(1:1), 8*SFU(7+1)
3. Support 100/40/10GE interface
4. Support a maximum of 320*100GE ports, or 320*40GE ports, or 480*10GE ports
5. Support L2, L3, VPN, Multicast, MPLS TE, HQoS, etc
Parameters | NE9000-20 | NE9000-8 |
Switching Capacity | 209 Tbit/s | 84 Tbit/s |
Forwarding Performance | 36,160 Mpps | 14,464 Mpps |
MPUs | 2 | 2 |
SFUs | 8 | 8 |
Slots | 20 | 8 |
Port Types | 400 GE, 100 GE, 40 GE, and 10 GE | 400 GE, 100 GE, 40 GE, and 10 GE |
Typical Power Consumption | 0.4W/G | 0.4W/G |
Dimensions (H x W x D) | 2200 mm x 600 mm x 1000 mm (49.5U) The NE9000 presents a single-cabinet design for a cabinet-free installation | 1016 mm x 442 mm x 945 mm (23U) The NE9000 presents a single-cabinet design for a cabinet-free installation |
