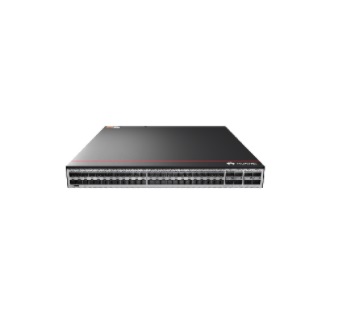

NetEngine 8000 F1A-8H20Q

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.


Fixed box, 1U, 2.4 Tbps


NetEngine 8000 F1A
Full-scenario edge access router
1) Fixed box, 1U, 2.4 Tbps
2) IPU*1
3) Support a maximum of 8*100GE/8*50GE/52*25GE/80*10GE
4) Support L2/L3VPN, HQoS, SRv6, Port slicing, etc
Product EOM Time: 2025-12-31


ParameterNetEngine 8000 X8NetEngine 8000 X4NetEngine 8000 M14NetEngine 8000 M8NetEngine 8000 M6NetEngine 8000 M1ANetEngine 8000 F1A
Switching
Capacity
83.78 Tbit/s41.89 Tbit/s4 Tbit/s2.4 Tbit/s320 Gbit/s352 Gbit/s2.4 Tbit/s
Forwarding
Performance
14,496 Mpps7248
Mpps
906 Mpps453 Mpps72 Mpps72 Mpps453 Mpps
Max. Capacity of a Board4 Tbit/s4 Tbit/s200 Gbit/s200 Gbit/s50 Gbit/sFixed-configuration router does not support flexible cards
Fixed-configuration router does not support flexible cards
Capacity Density (G/U)20251633400400801761200
IPU2, 1:12, 1:12, 1:12, 1:12, 1:1Fixed-configuration router does not support flexible cards
Fixed-configuration router does not support flexible cards
SFU8, 7+18, 7+12, 1:1
(integrated)
2, 1:1
(integrated)
2, 1:1
(integrated)
Fixed-configuration router does not support flexible cards
Fixed-configuration router does not support flexible cards
Processing Board/
Subcard
8414(DC)
10(AC)
8(DC)
6(AC)
6(DC)
4(AC)
Fixed-configuration router does not support flexible cards
Fixed-configuration router does not support flexible cards
Power Supply ModuleMax 10, N+1Max 6, N+1
2, 1+1 (DC)
4, 2+2 (AC)
2, 1+12, 1+1
2, 1+1 (DC)2, 1+1
Fan
Module
12, 11+16, 5+14, 3+12, 1+1
2, 1+1
3 (integrated)4, 3+1
Dimensions
(H x W x D)
702.3 x 442 x 861.4 mm (15.8 U)435.6 x 442 x 861.4 mm (9.8 U)222 x 442 x 220 mm (5 U)132.6 x 442 x 220 mm (3 U)88.9 x 442 x 220 mm (2 U)44.45 x 442 x 220 mm (1 U)43.6 x 442 x 420 mm (1 U)
Typical Power Consumption11,017 W5913 W1270 W485 W220 W75 W350 W
Weight
(With Full Configuration)
296.6 kg186.2 kg27.4 kg16.5 kg3.52 kg3.4 kg7.25 kg
