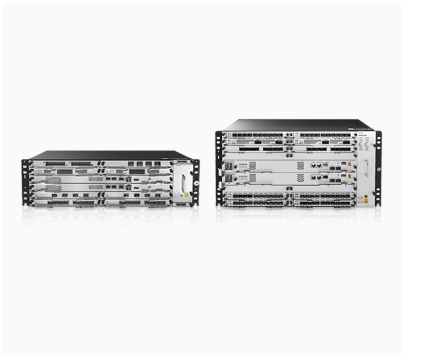

Huawei NetEngine 8000 series routers provide an all-service intelligent router platform designed for the cloud era. Utilizing ultra-broadband pipes to construct simplified networks and running the leading SR and SRv6 protocols to establish intelligent connections, the NetEngine 8000 series interworks with the next-generation Network Cloud Engine (NCE) to implement full-lifecycle automation and lead the trend towards proactive O&M. Available in a range of form factors including large chassis, compact card-equipped box, and fixed box, and applicable to core, aggregation, and access networks, the NetEngine 8000 boasts high performance, high reliability, low power consumption, and evolution capabilities. Applications include functioning as a core node for an enterprise WAN, an access node on a large enterprise network, a DCI node, or a campus or IDC network egress.
Award-winning and critically-acclaimed, The NetEngine 8000 series routers are industry-leading next-generation products. Adhering to an "intent-driven" philosophy, Huawei is committed to freeing customers from constraints and unleashing network potentials by providing the best services possible. Through the evolution of autonomous driving networks, Huawei is empowering enterprise customers across various industries to achieve digital transformation.
| Parameter | NetEngine 8000 X8 | NetEngine 8000 X4 | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M1A | NetEngine 8000 F1A |
| Switching Capacity | 83.78 Tbit/s | 41.89 Tbit/s | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 352 Gbit/s | 2.4 Tbit/s |
| Forwarding Performance | 14,496 Mpps | 7248 Mpps | 906 Mpps | 453 Mpps | 72 Mpps | 72 Mpps | 453 Mpps |
| Max. Capacity of a Board | 4 Tbit/s | 4 Tbit/s | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards |
| Capacity Density (G/U) | 2025 | 1633 | 400 | 400 | 80 | 176 | 1200 |
| IPU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2, 1:1 | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards |
| SFU | 8, 7+1 | 8, 7+1 | 2, 1:1 (integrated) | 2, 1:1 (integrated) | 2, 1:1 (integrated) | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards |
| Processing Board/ Subcard | 8 | 4 | 14(DC) 10(AC) | 8(DC) 6(AC) | 6(DC) 4(AC) | Fixed-configuration router does not support flexible cards | Fixed-configuration router does not support flexible cards |
| Power Supply Module | Max 10, N+1 | Max 6, N+1 | 2, 1+1 (DC) 4, 2+2 (AC) | 2, 1+1 | 2, 1+1 | 2, 1+1 (DC) | 2, 1+1 |
| Fan Module | 12, 11+1 | 6, 5+1 | 4, 3+1 | 2, 1+1 | 2, 1+1 | 3 (integrated) | 4, 3+1 |
| Dimensions (H x W x D) | 702.3 x 442 x 861.4 mm (15.8 U) | 435.6 x 442 x 861.4 mm (9.8 U) | 222 x 442 x 220 mm (5 U) | 132.6 x 442 x 220 mm (3 U) | 88.9 x 442 x 220 mm (2 U) | 44.45 x 442 x 220 mm (1 U) | 43.6 x 442 x 420 mm (1 U) |
| Typical Power Consumption | 11,017 W | 5913 W | 1270 W | 485 W | 220 W | 75 W | 350 W |
| Weight (With Full Configuration) | 296.6 kg | 186.2 kg | 27.4 kg | 16.5 kg | 3.52 kg | 3.4 kg | 7.25 kg |
