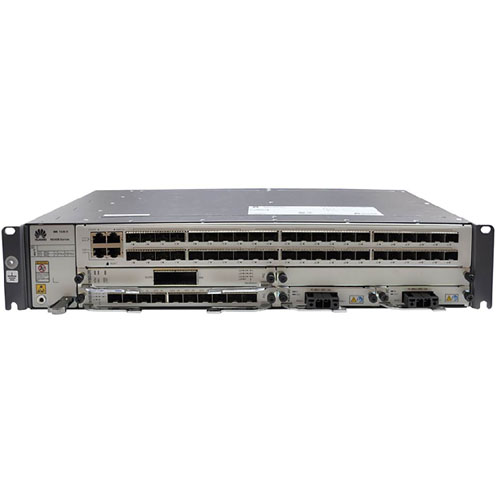

NE40E-M2H

Part #: 02350UUR

Module #: CR5PM2HBAS73

Price: US$ 35616

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

Universal Service Router

1. 2 PIC slots, 2U, 960 Gbps switching capacity, support 100G board

2. Single MPU, control and switch in one board

3. Support 100/40/10GE, GE/FE, STM-x, POS, E1

4. Support a maximum of 2*100GE ports, or 2*40GE ports, or 48*10GE ports,or 64*GE ports

5. Support L2, L3, Multicast, VPN, MPLS TE, QoS, GRE, IPSec, NetStream, etc

ParametersNE40E-M2HNE40E-M2KNE40E-F1A-14H24Q
Switching Capacity960Gbps1.82Tbps4Tbps
Forwarding Performance330 Mpps410 Mpps820 Mpps
LPU Slots220
Dimensions89 mm x 442 mm x 220 mm (2U)88.1 mm x 442 mm x 220 mm (2U)44 mm x 442 mm x 600 mm(1U)
Maximum Power Consumption525W (AC)309W (AC)470W (AC)
487W (DC)271W (DC)470W (DC)
Weight in Full Configuration11 kg (DC)11 kg (DC)11.95 kg (DC)
12 kg (AC)12.2kg (AC)11.95 kg (AC)
