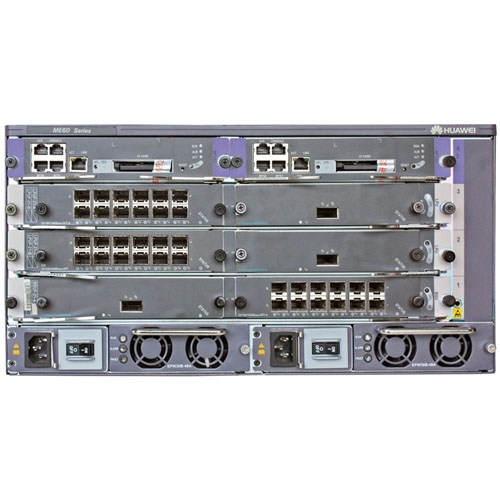

Multi-service gateway
1. 3 slots, 4U(DC)/5U(AC), 1.08 Tbps switching capacity, support 120G board
2. 2*MPU(1:1), control and switch in one board
3. Support 100/10GE, GE/FE, STM-x
4. Support a maximum of 3*100GE ports, or 36*10GE ports
5. Support the maximum of 128K concurrent subscriber, hot backup technology, Integrated BRAS, routing, NAT, etc
Parameters | ME60-X16A | ME60-X8A | ME60-X16 | ME60-X8 | ME60-X3 | |
Switching Capacity | 50.32 Tbit/s | 25.16 Tbit/s | 12.58 Tbit/s | 7.08 Tbit/s | 1.08 Tbit/s | |
Forwarding Performance | 11,520 Mpps | 5,760 Mbit/s | 5,760 Mbit/s | 2,880 Mbit/s | 360 Mbit/s | |
Number of Slots | 22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs | 12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs | 22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs | 11 slots, including 8 LPUs, 2 SRUs, and 1 SFU | 5 slots, including 3 LPUs and 2 SRUs | |
Dimensions | 1,778 x 442 x 650 (40U) | 934 x 442 x 650 (21U) | 1,420 x 442 x 650 (32U) | 620 x 442 x 650 (14U) | 175 x 442 x 650 (DC 4U) 220 x 442 x 650 (AC 5U) | |
Maximum Power Consumption | 7,220W (BSUF-240) 9,040W (BSUF-480) | 4,110W (BSUF-240) 4,770W (BSUF-480) | 4,610W (BSUF-100) 6,210W (BSUF-240) | 2,340W (BSUF-100) 3,220W (BSUF-240) | 920W (BSUF-100) | |
Full Configuration Weight | 356 kg | 190 kg | 279 kg | 136 kg | DC: 42 kg (100G) AC: 52 kg (100G) | |
Interface Types | 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE | |||||
BRAS |
| |||||
QoS |
| |||||
Value-added Services |
|
