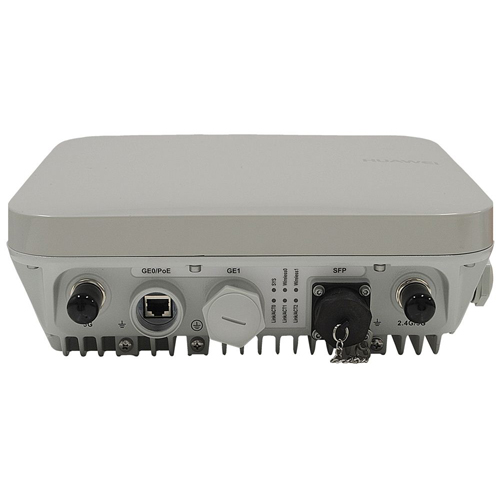

The AP8130DN, a technology-leading 802.11ac access point, is high- and low-temperature resistant, dustproof, and waterproof. It is recommended for use in coverage scenarios (squares, pedestrian streets, and amusement parks) and bridging scenarios (wireless harbors, data backhaul, video surveillance, and train-to-ground backhaul).
3x3 MIMO (three spatial streams)
Maximum rate: 1.75 Gbit/s
IP67
Built-in surge protection
Maximum Transmit Power 28 dBm (combined power)
Specifications | AP8030DN | AP8130DN |
Dimensions (H x W x D) | 290 mm x 260 mm x 100 mm | 290 mm x 260 mm x 100 mm |
Power Input | PoE: In compliance with IEEE 802.3at | PoE: In compliance with IEEE 802.3at |
Maximum Power Consumption | 20.1W | 22.4W |
Operating Temperature | −40°C to 65°C | −40°C to 65°C |
Antenna Type | Built-in directional antennas | Outdoor external antennas |
Maximum Number of Users | ≤ 256 | ≤ 256 |
Maximum Transmit Power | 2.4G: 28 dBm (combined power) | 2.4G: 28 dBm (combined power) |
MIMO: Spatial Streams | 3 x 3:3 | 3 x 3:3 |
Radio Protocols | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac |
Maximum Speed | 1.75 Gbit/s | 2.6Gbit/s |
