Focus on Americas Market

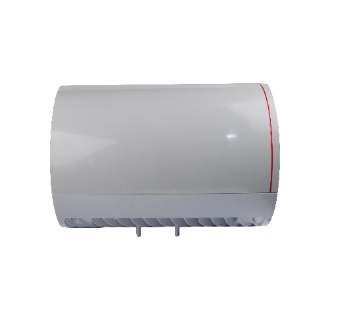

AP8082DN

Part #: 02351KQB

Module #: AP8082DN

Price: US$ 1590.74

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

802.11ac Wave 2 outdoor AP, 4x4 MU-MIMO, 2.53 Gbit/s

SpecificationsAP8082DN & AP8182DN
Dimensions (Length x Diameter)387 mm x φ165 mm
Power InputPoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input
Maximum Power Consumption802.3bt power supply: 45W (excluding the output power of the PoE OUT port)
802.3at power supply: 25.5W (the PoE OUT function and GE/POE OUT ports are unavailable, 5 GE and SFP are mutually exclusive)

Notes: The actual maximum power consumption depends on local laws and regulations. In 802.3at power supply mode, the radio power is reduced, and the 2.4 GHz radio frequency works in 2 x 4 MIMO mode
Operating Temperature–40°C to 65°C
Antenna TypeAP8082DN: Built-in directional antennas (horizontal 60°, vertical 30°)
AP8182DN: External antennas (with eight type N connectors)
Maximum Number of Concurrent Users≤ 512
Maximum Transmit PowerAP8082DN: 2.4G: 29 dBm (combined power)       5G: 28 dBm (combined power)
AP8182DN: 2.4G: 28 dBm (combined power)       5G: 27 dBm (combined power)

Note: The actual transmit power depends on local laws and regulations
MIMO: Spatial Streams4 x 4:4
Radio Protocols802.11a/b/g/n/ac/ac Wave 2
Maximum RateAP8082DN: 2.53 Gbit/s
AP8182DN: 3.46 Gbit/s
