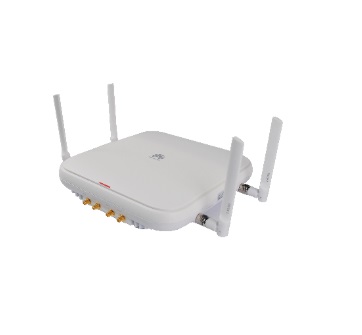

802.11ac Wave 2 AP, 4x4 MIMO, Max 3.46 Gbit/s
| Specifications | AP7052DN & AP7152DN |
| Dimensions (H x W x D) | 52 mm x 220 mm x 220 mm |
| Power Input | DC: 42.5V to 57V PoE power supply: In compliance with IEEE 802.3at/bt; dual PoE power supply |
| Maximum Power Consumption | DC/802.3bt power supply: 33W (excluding the output power of the USB port) 802.3at power supply: 25.5W (the USB function and the 5 Gbit/s mode of network ports are unavailable. The IoT card power is lower than 0.5 W.) Note: The actual maximum power consumption depends on local laws and regulations |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | AP7052DN: Built-in dual-band omnidirectional antennas AP7152DN: External dual-band omnidirectional antennas |
| Maximum Number of Concurrent Users | ≤ 512 |
| Maximum Transmit Power | 2.4G/5G (switchable): 26 dBm/21 dBm (combined power) 5G (non-switchable): 24 dBm (combined power) Note: The actual transmit power depends on local laws and regulations |
| MIMO: Spatial Streams | 4 x 4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | 3.46 Gbit/s |
1. This content is applicable only to regions outside mainland China. Huawei reserves the right to interpret this content.
