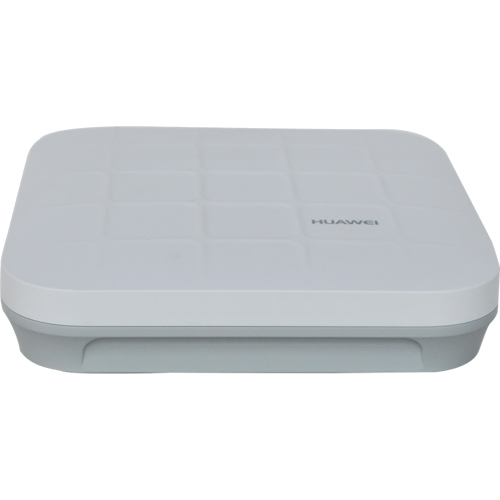

Huawei AP7050DE is a wireless access point that supports 802.11ac Wave 2 standards, 4 x 4 MIMO and four spatial streams. The AP7050DE provides a rate of up to 2.53 Gbit/s. It uses built-in smart antennas and is applicable to indoor coverage scenarios, such as schools and large campuses.
| Parameter | AP7050DE |
| Dimensions (H x W x D) | 53 mm x 220 mm x 220 mm |
| Power Input | DC: 12V ±10% PoE power: In compliance with IEEE 802.3at |
| Maximum Power Consumption | 24W (excluding the output power of the USB port) Note: The actual maximum power consumption depends on local laws and regulations |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in dual-band smart antenna |
| Maximum Number of Users | ≤ 512 |
| Maximum Transmit Power | 2.4 GHz: 26 dBm (combined power) 5 GHz: 27 dBm (combined power) Note: The actual transmit power depends on local laws and regulations. |
| MIMO: Spatial Streams | 4 x 4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | 2.53 Gbit/s |
1. This content is applicable only to regions outside mainland China. Huawei reserves the right to interpret this content.
