Focus on Americas Market

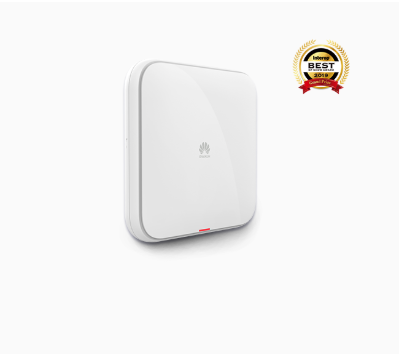

AP7060DN

Part #: 02351TYR

Module #: AP7060DN

Price: US$ 762.75

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

A cutting-edge 802.11ax wireless Access Point (AP) with built-in omnidirectional antennas, and a device rate of up to 6 Gbit/s, supporting high-bandwidth services, including: Virtual Reality/Augmented Reality (VR/AR) interactive teaching, 4K/8K High Definition (HD) video streaming, multimedia streaming, and desktop cloud. The AP7060DN facilitates the use of Internet of Things (IoT) applications, and its 10 GE uplink interface eliminates bottlenecks in upstream bandwidth. Winner of the "Best of Show Award" at Interop Tokyo 2019, the AP7060DN is applicable to both office and education scenarios.

SpecificationsAP7060DN
Dimensions (H x W x D)57 mm x 220 mm x 220 mm
Power InputDC: 45V to 57V
PoE: In compliance with IEEE 802.3bt
Maximum Power Consumption30W (excluding output power consumption of the USB interface and IoT)
Note: The actual maximum power consumption depends on local laws and regulations.
Built-in BluetoothBLE5.0
Antenna TypeBuilt-in dual-band omnidirectional antennas
Maximum Number of Users≤1024
 Note:The actual number of users varies according to the environment.
Maximum Transmit Power2.4G: 24 dBm (combined power)
5G: 27 dBm (combined power)
Note: The actual transmit power depends on local laws and regulations.
MIMO: Spatial Streams2.4G: 4 x 4:4; 5G: 8 x 8:8
Radio Protocols802.11a/b/g/n/ac/ac Wave 2/11ax
Maximum Rate6 Gbit/s
