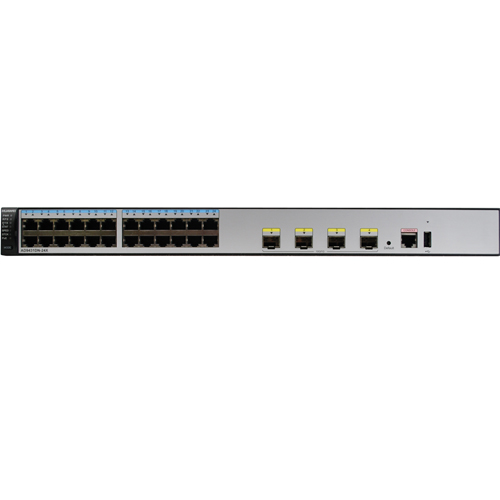

The AD9431DN-24X central access point (AP) used in Huawei Agile Distributed Wi-Fi Solutions, and has 4 uplink 10GE interfaces. Super-sized AP supports up to 24 Remote Units (RUs) with direct network cables, providing Power-over Ethernet (PoE) to the RUs, or up to 48 RUs through a downstream switch.
The AD9431DN-24X provides central control of all attached RUs and is managed. Effective AP for use in high-density indoor environments such as schools, hotels, hospitals, and office meeting rooms.
Specifications | AD9431DN-24X |
Dimensions (H x W x D) | 43.6 mm x 442 mm x 310 mm |
Interfaces | 24 x GE + 4 x 10 GE SFP |
PoE | 24-port PoE |
Power Input | Rated power: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47 Hz to 63 Hz |
Forwarding Capability | 24 Gbit/s |
User Access Capability | Maximum number of access users: 4,096 Maximum number of concurrent users: 1,024 |
Number of Managed RUs | 24 (48 through a switch) |
Maximum Power Consumption | 410W (device: 30W; PoE: 380W) |
