802.11a/b/g/n/ac/ac Wave 2, 4 x 4:4, 3.46 Gbit/s

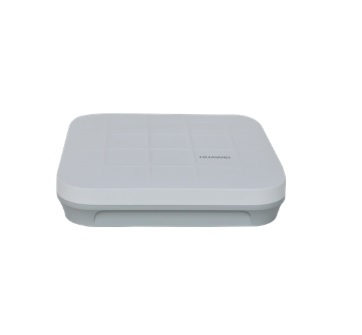

Parameters | AP6052DN |
Dimensions (H x W x D) | 52 x 220 x 220 mm |
Power Input | DC: 42.5 V to 57 V PoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input |
Maximum Power Consumption | DC/802.3bt power supply: 32 W (excluding the output power of the USB port) 802.3at power supply: 25.5 W (USB function and 5 Gbit/s mode of network ports are unavailable.) Note: Actual maximum power consumption depends on local laws and regulations |
Operating Temperature | –10°C to 50°C |
Antenna Type | Built-in dual-band omnidirectional antennas |
Maximum Number of Concurrent Users | ≤ 512 |
Maximum Transmit Power | 2.4 GHz/5 GHz (switchable): 26 dBm/21 dBm (combined power) 5 GHz (non-switchable): 24 dBm (combined power) Note: Actual transmit power depends on local laws and regulations |
MIMO: Spatial Streams | 4 x 4:4 |
Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
Maximum Rate | 3.46 Gbit/s |
