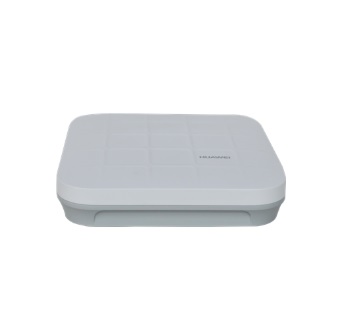

802.11a/b/g/n/ac/ac Wave 2, 2.4GHz:4x4:4;5GHz:4x4:4, 2.53 Gbit/s
Parameter | AP6050DN & AP6150DN |
Dimensions (H x W x D) | 53 mm x 220 mm x 220 mm |
Power Input | DC: 12V ±10% PoE power: In compliance with IEEE 802.3at |
Maximum Power Consumption | 22.9W (excluding the output power of the USB port) Note: The actual maximum power consumption depends on local laws and regulations |
Operating Temperature | –10°C to +50°C |
Antenna Type | AP6050DN: Built-in dual-band antennas (the hardware chip supports smart antenna technology.) AP6150DN: External dual-band antennas (the hardware chip supports smart antenna technology.) |
Maximum Number of Users | ≤ 512 |
Maximum Transmit Power | 2.4 GHz: 26 dBm (combined power) 5 GHz: 26 dBm (combined power) Note: The actual transmit power depends on local laws and regulations. |
MIMO:Spatial Streams | 2.4GHz:4x4:4;5GHz:4x4:4 |
Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
Maximum Rate | 2.53 Gbit/s |
