AirEngine8760R-X1E

Part #: 02353GSH

Module #: AirEngine8760R-X1E

Price: US$ 2150

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

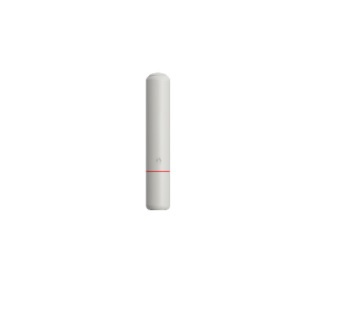

AirEngine 8760R-X1/X1E, Next-generation outdoor flagship Wi-Fi 6 (802.11ax) access point (AP) supporting 16 spatial streams - eight at 2.4 GHz (8x8 MU-MIMO, 8T8R) and eight at 5 GHz (8x8 MU-MIMO) - achieving a device rate of up to 10.75 Gbps and delivering superb outdoor coverage performance.
Ideal for high-density outdoor scenarios, such as outdoor stadiums, public squares, and parks.


ParametersAirEngine 8760R-X1AirEngine 8760R-X1E
Dimensions (Diameter x Height)Φ165 mm x 387 mm
Power InputPoE power supply: in compliance with IEEE 802.3bt
Maximum Number of Users≤ 1024
Note: The actual number of users varies according to the environment
≤ 1024 (dual-radio)
≤ 1152 (triple-radio)
Note: The actual number of users varies according to the environment
Port1 x 10 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+
Built-in BluetoothBLE 5.0
Operating Temperature–40°C to 65°C
Antenna TypeBuilt-in Smart AntennasExternal antennas
MIMO: Spatial Streams2.4 GHz: 8x8:8; 5 GHz: 8x8:8
2.4 GHz: 4x4:4; 5 GHz: 12x12:8
2.4 GHz: 8x8:8; 5 GHz: 8x8:8
2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4
Radio Protocols802.11a/b/g/n/ac/ac Wave 2/ax
Maximum Rate10.75 Gbit/s
