Focus on Americas Market

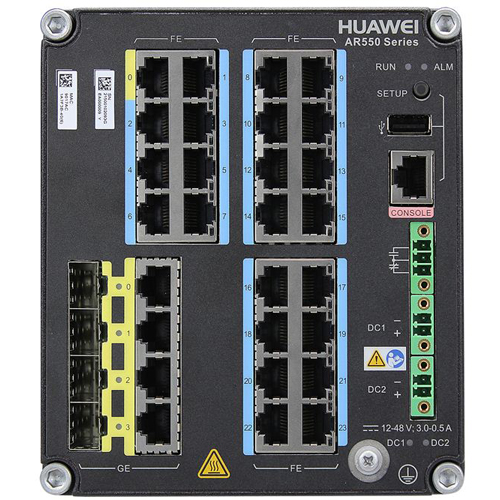

AR550-24FE-D-H

Part #: 50010209

Module #: AR550-24FE-D-H

Price: US$ 2312.15

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

Operating temperature: -40 to +70 centigrade

50-ms switching through SEP protocol

Anti-vibration, anti-interference, 60 years MTBF

Routing, switching, VPN functions

SpecificationsAR550C-4GEAR550C-2C6GEAR550-8FE-D-HAR550-24FE-D-H
Fixed Ethernet Interfaces2 x 2.5G SFP (compatible with GE),
4 x GE RJ45
2 x 2.5G SFP (compatible with GE),
2 x GE combo, 6 x GE RJ45
8 x FE RJ45 + 4 x GE Combo24 x FE RJ45 + 4 x GE Combo
Forwarding Performance13.5 Mpps19.5 Mpps7.2 Mpps9.6 Mpps
Switching Capacity128Gbps
CertificationsCB (IEC 60950)
NRTL (UL60950-1)
EU CE (EN 55022, EN 55024, and EN 300386)
USA FCC (47CFR Part 15)
Canada IC (ICES-003)
Australia C-Tick (AS/NZS CIPSR22)
Electric power IEC61850-3/IEEE1613 (substation)
EN50155 (railway)
Ring Network ProtocolsSEP, STP, RSTP, and MSTP
Power SupplyDual DC power: 9.6V to 60V (terminal block)
IP GradeIP40
Operating Temperature–40°C to 70°C
The device is tested for 2 hours at temperatures in the range of 70°C to 85°C
–40°C to 70°C
Dimensions
(W x D x H)
44 mm x 133 mm x 150 mm44 mm x 133 mm x 150 mm97 mm x 133 mm x 150 mm133 mm x 133 mm x 150 mm
