* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.
1. IP51 Ingress Protection, fan-less design, works at temperatures from -40 Celsius to +70 Celsius
2. Complies with substation environment standard IEC61850-3/IEEE1613
3. All-IP design, integrated features of router, switching and security service
4. Supports Smart Ethernet Protection (SEP), implementing millisecond-level protection switch-over

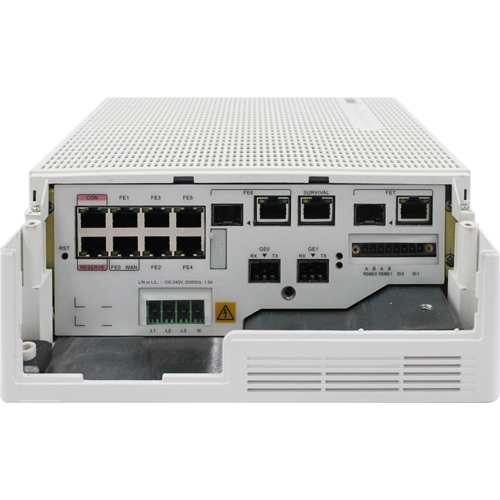

Specifications | AR532 | AR531-2C-H |
L2 Switching Capacity | - | 5.6 Gbit/s |
Service Forwarding Performance (IMIX) | - | 150 Mbit/s |
Fixed Ethernet Ports | 1 x GE/1 x GE Combo | 2 x GE (SFP) + 6 x FE + 2 x FE Combo |
RS485 Ports | 2 | 2-channel |
DI/DO Ports | 2-channel DI/2-channel DO | 2-channel DI |
3G |
| - |
RF/PLC | RF: 433M/915M RF (optional) PLC: Huawei PLC-IoT | - |
IP Grade | IP51 (IP54 with outdoor cabinet) | IP51 |
Operating Temperature | –25°C to 70°C | –40°C to 70°C |
Dimensions (W x D x H ) | 180 mm x 95 x 290 mm | 220 mm x 250 mm x 88 mm |
