8GE LAN(4GE Combo),1 USB, 1 DO, 2 WSIC, 60W AC-DC POWER

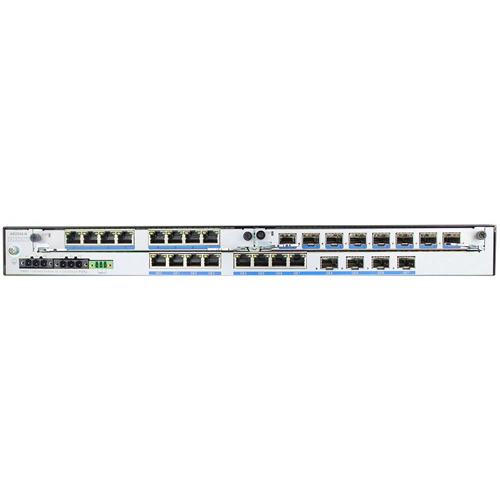

| Specifications | AR2504-H | AR2504-D-H |
| Fixed Interfaces | 4 x GE combo, 4 x GE RJ45 | |
| Alarm Interface | 1 x DO (3-pin industrial terminal) | |
| Forwarding Performance | 36 Mpps | |
| Switching Capacity | 144 Gbit/s | |
| Certifications | North America: UL Germany: GS Global: CB European Union: CE (2004/108/EC, EN 55022, EN 55024, and EN 300386) United States: FCC (47CFR Part 15) Canada: IC (ICES-003) Australia: RCM (original C-Tick: AS/NZS CIPSR22) Electric Power: IEC61850-3/IEEE1613 (for transformer substations) State Grid: Class A | |
| Ring Network Protocols | SEP, STP, RSTP, and MSTP | |
| Power | Redundant power modules AC: 100V to 240V, 50 Hz/60 Hz (90V to 264V, 47 Hz to 63 Hz) DC: 110V to 250V (88V to 300V) Input undervoltage and overvoltage protection Output short-circuit protection Overheating protection Reverse connection protection | Redundant power modules DC: 24V to 48V (18V to 60V) Input undervoltage and overvoltage protection Output short-circuit protection Overheating protection Reverse connection protection |
| IP Protection Level | IP30 | |
| Operating Temperature | –40°C to 65°C In compliance with IEC60068-2-1-2007 and ETSI EN 300 019-2-3 V2.2.2:2003, the router can operate reliably for 24 hours in a temperature range of -40°C to 70°C | –40°C to 60°C |
| Dimensions (W x D x H ) | 442 mm x 220 mm x 44 mm (mounting ears excluded) | |
