Focus on Americas Market

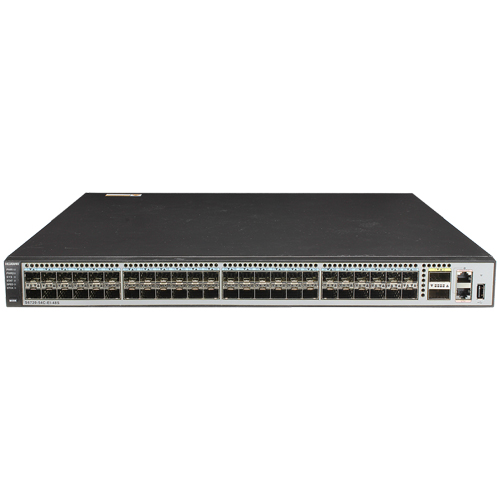

S6720-54C-EI-48S-AC

Part #: 02350DMP

Module #: S6720-54C-EI-48S-AC

Price: US$ 5698.56

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

Next-Generation Enhanced 10GE Switches

48 10 Gig SFP+, 2 40 Gig QSFP+ ports

supports 1+1 backup of AC and DC power modules

supports long-distance stacking

One extended slot for 4 40 Gig QSFP+ interface card

OSPF,BGP,MPLS

Product modelS6720-30C-EI-24S-AC
S6720-30C-EI-24S-DC
S6720-54C-EI-48S-AC
S6720-54C-EI-48S-DC
S6720S-26Q-EI-24S-AC
Switching Capacity2.56 Tbit/s2.56 Tbit/s2.56 Tbit/s
Forwarding Performance720 Mpps1,080 Mpps480 Mpps
Fixed Ports24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended SlotsOne extended slotOne extended slotNot supported
MAC Address Table288k MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features4K VLANs
Guest VLAN and voice VLAN
VLAN assignment  based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
QinQ  and selective QinQ
IP RoutingStatic routing,  RIPv1, RIPv2, ECMP, and URPF
OSPF, IS-IS, and BGP
VRRP
Policy-based routing
Routing  policy
InteroperabilityVLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)

For detailed interoperability certifications and test reports, click
HERE.
