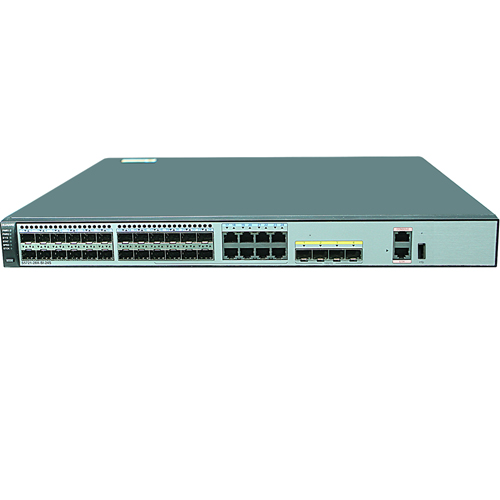

S5721-28X-SI-24S-AC

Part #: 98010661

Module #: S5721-28X-SI-24S-AC

Price: US$ 1431.04

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

1. 24 Gig SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+

2. Dual pluggable AC or DC power supplies, one 60 W AC power supply equipped by default

Product modelS5720-28P-SI-ACS5720-28X-SI-AC(DC)
S5720-28X-PWR-SI-AC(DC)
S5720-28X-SI-24S-AC(DC)
S5721-28X-SI-24S-AC
S5720-52P-SI-AC
S5720S-52P-SI-AC
S5720-52X-SI-AC(DC)
S5720-52X-PWR-SI-AC(DC)
S5720-52X-PWR-SI-ACF
S5720-52X-SI-48S
S5720S-52X-SI-AC
S5720S-28P-SI-AC
S5720S-28X-SI-AC
Switching Capacity336 Gbit/s
Forwarding Performance42 Mpps96 Mpps96 Mpps78 Mpps132 MppsP model:42 Mpps
X model:96 Mpps
Fixed Ports24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 Gig SFP24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+24 x Gig SFP 8 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+48 x 10/100/1,000 ports, 4 Gig SFPS5720-52X-SI-48S: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+

Others: 48 x 10/100/1,000 ports, 4 x 10 Gig SFP+
P model:
24 x 10/100/1,000 ports, 4 x Gig SFP

X model:
24 x 10/100/1,000 ports, 4 x 10 Gig SFP+
MAC Address Table16K
IEEE 802.1d compliance
16k MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features4K VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP RoutingStatic route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
SVFPlug-and-play SVF client
Automatic software and patch loading to clients
One-click and automatic delivery of service configurations
Independent client running
InteroperabilityVLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)
For detailed interoperability certifications and test reports, click
HERE.
