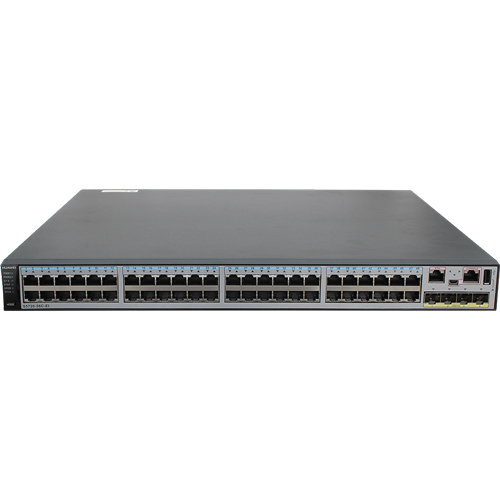

Next-generation enhanced gigabit Ethernet switch
1. 48*GE RJ45, 4*10GE SFP+
2. Dual pluggable AC or DC power supplies, one AC power supply equipped by default
3. One extended slot for 10GE optical/electrical interface card or stack card
Product Model | S5720-P-EI | S5720-X-EI | S5720-PC-EI | S5720-C-EI |
Switching Capacity | 598 Gbit/s | 598 Gbit/s | 598 Gbit/s | 598 Gbit/s |
Forwarding Performance | S5720-32P-EI-AC: 48 Mpps S5720-52P-EI-AC: 78 Mpps S5720-32X-EI-AC: 102 Mpps S5720-32X-EI-24S-AC: 102 Mpps S5720-32X-EI-24S-DC: 102 Mpps S5720-50X-EI-AC: 129 Mpps S5720-50X-EI-DC: 129 Mpps S5720-50X-EI-46S-AC: 129 Mpps S5720-50X-EI-46S-DC: 129 Mpps S5720-52X-EI-AC: 132 Mpps S5720-36PC-EI-AC: 78 Mpps S5720-56PC-EI-AC: 108 Mpps S5720-36C-EI-28S-AC: 132 Mpps S5720-36C-EI-28S-DC: 132 Mpps S5720-36C-EI-AC: 132 Mpps S5720-36C-PWR-EI-AC: 132 Mpps S5720-56C-EI-48S-AC: 162 Mpps S5720-56C-EI-48S-DC: 162 Mpps S5720-56C-EI-AC: 162 Mpps S5720-56C-EI-DC: 162 Mpps S5720-56C-PWR-EI-AC: 162 Mpps S5720-56C-PWR-EI-DC: 162 Mpps S5720-56C-PWR-EI-AC1: 162 Mpps | |||
Extended Slots | N/A | One expansion slot supporting the following functions:
| ||
MAC Address Table | 64k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses | |||
VLAN Features | 4K VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping VLAN-based transparent transmission of protocol packetsMAC addresses, protocols, IP subnets, policies, and ports VLAN mapping | |||
IP Routing | Static routes, RIPv1/v2, and RIPng OSPF, OSPFv3, IS-IS, and IS-ISv6 BGP, BGP4+, ECMP, and routing policy | |||
Interoperability | VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) For detailed interoperability certifications and test reports, click HERE. |
