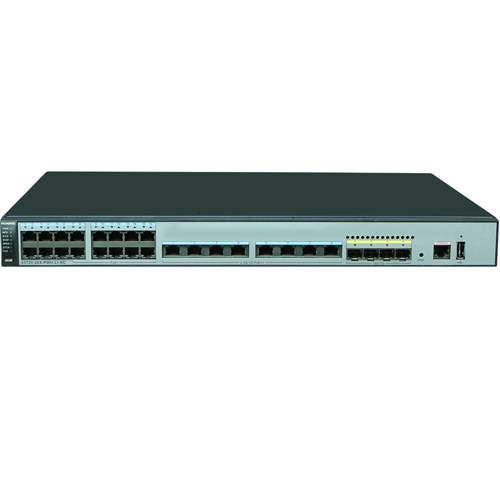

Next-generation simplified GE Ethernet switch
1. 24-port PoE+, among which 8 ports support 60 W PoE++
2. RIP, RIPng, OSPF
3. Provides 360W PoE and supports RPS
Model | S5720-12TP-LI-AC S5720-12TP-PWR-LI-AC | S5720-16X-PWH-LI-AC S5720-28X-PWH-LI-AC | S5720-28P-LI-AC S5720-28P-PWR-LI-AC S5720-28TP-LI-AC S5720-28TP-PWR-LI-AC S5720-28TP-PWR-LI-ACL | S5720-28X-LI-AC(DC) S5720-28X-PWR-LI-AC S5720-28X-LI-24S-AC(DC) | S5720-52P-LI-AC S5720-52P-PWR-LI-AC | S5720-52X-LI-AC(DC) S5720-52X-PWR-LI-AC S5720-52X-LI-48S-AC S5720-52X-PWR-LI-ACF |
Switching Capacity | 336 Gbit/s | 336 Gbit/s | 336 Gbit/s | 336 Gbit/s | 336 Gbit/s | 336 Gbit/s |
Forwarding Performance | 22.5 Mpps | 16x: 51 Mpps 28x: 126 Mpps | P series: 51 Mpps/108 Mpps Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU license. TP series: 46.5 Mpps | 108 Mpps | 87 Mpps/144 Mpps Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU license. | 144 Mpps |
Fixed Ports | 8 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, 2 of which are dual-purpose | 16x model: 12 x Ethernet 10/100/1,000 Base-T ports, 2 x Ethernet 10/100/1,000 Base-T ports, and 2 x 10 Gig SFP+ ports 28x model: 16 x Ethernet 10/100/1,000 Base-T ports, 8 x Ethernet 100/1,000/2,500 Base-T ports, and 4 x 10 Gig SFP+ ports | P series: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports TP series: 24 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP ports | S5720-28X-LI-24S-AC(DC): 24 x Gig SFP ports, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP ports, 4 x 10 Gig SFP+ ports Others: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports | 48 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports | S5720-52X-LI-48S-AC: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+ Others: 48 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports |
MAC Address Table | 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses | |||||
VLAN | 4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLANBasic QinQ and selective QinQ | |||||
IP Routing | Static routing, RIP, RIPng, OSPF, and OSPFv3 | |||||
Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, please click HERE. |
