Focus on Americas Market

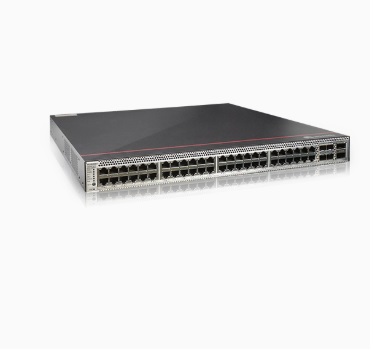

S5732-H48UM2CC

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

CloudEngine S5732-H series switches are next-generation Multi-GE access switches that provide 24-port, 48-port models, and provide four 25GE and two 40GE ports, or two 100GE uplink ports.

CloudEngine S5732-H series switches are the next-generation Multi-GE fixed switches,building on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; CloudEngine S5732-H can provide a maximum of 48 10GE Multi-GE ports, which is the best choice for WLAN APs to connect to a switch in the Wi-Fi 6 era.


Specifications

ParametersCloudEngine S5732-H24UM2CCCloudEngine S5732-H48UM2CCCloudEngine S5732-H48XUM2CC
Forwarding Performance490Mpps490Mpps490Mpps
Switching Capacity21.28 Tbps/2.4 Tbps1.76 Tbps/2.4 Tbps1.76 Tbps/2.4 Tbps
Fixed Ports24 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25GE SFP28 + 2 x 40GE QSFP+ or 2 x 100GE  QSFP2848 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25GE SFP28 + 2 x 40GE QSFP+ or 2 x 100GE  QSFP2824 x 10GE SFP+, 24 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25GE SFP28 + 2 x 40GE QSFP+ or 2 x 100GE QSFP28
PoE++SupportedSupportedSupported
Extended SlotsOne extended slot, support 2 x 25GE SFP28 or 8 x 10GE SFP+, 8 x 25GE SFP28 cards
Wireless ServicesManagement of up to 1024 APs
AP access control, AP domain management, and AP configuration template management
Radio channel management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, tag/terminal location, and spectrum analysis
iPCACollection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
Super Virtual Fabric (SVF)Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management
Supports a two-layer client architecture
Supports third-party devices between SVF parent and clients
VXLANVXLAN L2 and L3 gateways
Centralized and distributed gateways
BGP-EVPN
Configured through the NETCONF protocol
InteroperabilityVBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
For detailed interoperability certifications and test reports, click HERE.

1. This content is applicable only to regions outside the Chinese mainland. Huawei reserves the right to interpret this content.
2. The value before the slash (/) refers to the device's switching capability, while the value after the slash (/) means the system’s switching capability.
